Sealey SA1565 Air Compressor 150L Belt Drive Petrol Engine 6.5hp

Product Number: SA1565

£3,102.92 £3,042.08

BUY NOW

ADD TO CART

Variations

SA5055

Click on the button below to find the right air compressor

Air Compressor Finder

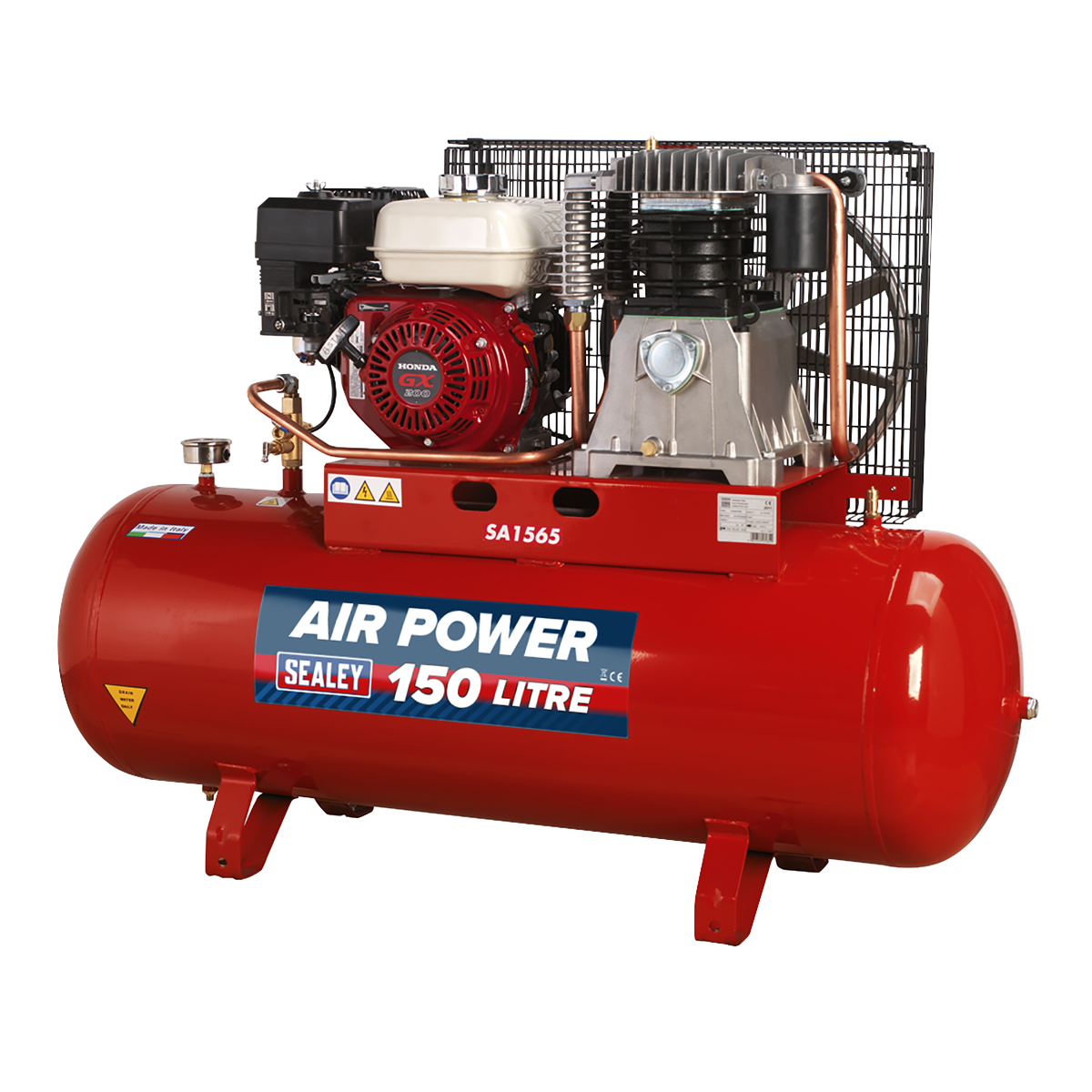

Sealey SA1565 Air Compressor 150L Belt Drive Petrol Engine 6.5hp is a static petrol-powered compressor designed for serious professional use where mains power is limited. A Honda GX200 6.5hp petrol engine drives a heavy-duty, 2-stage twin piston cast iron pump with alloy heads for improved heat dissipation and long life. This combination produces 20.9cfm (591L/min) air displacement and 15.2cfm (430L/min) maximum free air delivery at up to 145psi (10bar), feeding a 150L receiver. A heavy-duty drive guard protects the belt and flywheel, which is shaped to force cooling air over the pump. The unit is supplied with full CE certification, test certificates and an operating/maintenance manual, and features an outlet tap and pressure gauge for easy connection to downstream equipment. Running on unleaded fuel, this compressor is well suited to remote workshops, mobile service depots and agricultural sites needing high-performance compressed air from a robust petrol unit.

Key Features:

Air Displacement: 20.9cfm(591L/min).
Maximum Free Air Delivery: 15.2cfm(430L/min).
Maximum Pressure: 145psi(10bar).
Static compressor with Honda GX200 6.5hp unit coupled to heavy-duty, 2-stage twin piston, cast iron pump.
Pump has heavy-duty full cast cylinders, capped by alloy heads for improved heat dissipation and long-life.
Heavy-duty drive guard protects belt and flywheel that is designed to also force air over the pump to aid cooling.
Supplied with full CE certification, test certificates and operating/maintenance manual.
Features gauge and air outlet.
Runs on unleaded fuel.
This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

Model No	SA1565
Air Displacement cfm(L/min)	20.9(591)
Brand	Sealey
Maximum Free Air Delivery cfm(L/min)	15.2(430)
Maximum Pressure	145psi(10bar)
Motor Output	6.5hp
Motor Type	Honda GX200 Petrol
Nett Weight	103kg
Noise Level	97dB(A)
Oil Capacity	1.2L
Outlet	1/2"BSP Female Tap
Receiver Capacity	150L
Size (W x D x H)	1360 x 540 x 1110mm

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

Hi, I'm Simon, your PartsForMachines product expert.

Checking fit, size, power, or compatibility?

Ask your question — I’ll cut through the jargon.

Thinking

Disclaimer: This chat uses AI and may be inaccurate or incomplete. Always verify details on the product page, datasheets and on equipment manual. For precise advise, contact our customer support.

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "LFTH1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05302 PX3/200-SRB Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £778.45 £763.19 2% OFF Free delivery in Channel Island ADD	Compare SIP 06323 VN3/150-SB Vertical Belt Drive Compressor,Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £934.15 £915.83 2% OFF Free delivery in Channel Island ADD	Compare SIP 05308 PX4/200B Belt Drive Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £891.72 £874.24 2% OFF Free delivery in Channel Island ADD	Compare SIP 06585 TN7.5/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £1,694.20 £1,660.98 2% OFF Free delivery in Channel Island ADD	Compare SIP 05251 B3800/270 Tandem Compressor,Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,524.52 £2,475.02 2% OFF Free delivery in Channel Island ADD	Compare SIP 06335 VN5.5/150-TB Vertical Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10 Bar £1,446.27 £1,417.91 2% OFF Free delivery in Channel Island ADD	Compare SIP 06583TN5.5/200 Compressor, Tank Capacity - 200 Litre, Max. Air Pressure - 10 Bar £1,342.96 £1,316.63 2% OFF Free delivery in Channel Island ADD	Compare SIP 06587 TN10/270 Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 10 Bar £2,614.91 £2,563.64 2% OFF Free delivery in Channel Island ADD	Compare SIP 06291 ISBD7.5/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £1,987.33 £1,948.36 2% OFF Free delivery in Channel Island ADD	Compare SIP 06295 ISBD10/270 Super Electric Compressor, Tank Capacity - 270 Litre, Max. Air Pressure - 11 Bar £3,137.90 £3,076.37 2% OFF Free delivery in Channel Island ADD	Compare SIP 06297 ISBD15/500 Super Electric Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 11 Bar £4,393.06 £4,306.92 2% OFF Free delivery in Channel Island ADD	Compare SIP 04328 ISKP7/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,250.82 £1,226.29 2% OFF Free delivery in Channel Island ADD	Compare SIP 04330 ISKP7/150 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,472.83 £1,429.93 3% OFF Free delivery in Channel Island ADD	Compare SIP 04331 ISKP7/150ES Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,608.36 £1,576.82 2% OFF Free delivery in Channel Island ADD	Compare SIP 04444 ISHP5.5/50 Super Petrol Compressor, Tank Capacity - 50 Litre, Max. Air Pressure - 10.3 Bar £1,291.31 £1,265.99 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05302	06323	05308	06585	05251	06335	06583	06587	06291	06295	06297	04328	04330	04331	04444
Input Supply		230	230	400	230	415	400	400	400	400	400
Motor Power		2.2		5.6	2.2	4.1	4.1	7.5	5.6	7.5	11.2
Warranty		24	24	24	24	24	24	24	24	24	24	24	24	24	24
Maximum Pressure (bar)	0	10	0	10	10	10	10	10	11	11	11	10	10	10	10
Free AirDelivery (FAD)	0	8.5	0	25	22	18	18	28	20.5	25	40.7	11	11	11	11
Noise Level	0	96	97	0	0	97	0	0	0	0	0	0	0	0	0
Maximum Pressure (psi)	0	145	0	145	145	145	145	145	160	160	160	150	150	150	150
Piston Displacement (CFM)		13	18	34	32	24	24	42	31	38	61.5	16	16	16	15
Piston Displacement (litres/min)		368	510	963	906	680	680	1189	878	1076	1744	453	453	453	425
Show More

Technical

Q 1. What defines the Sealey SA1565 150 litre petrol air compressor?

A. It is a static, belt-driven compressor powered by a Honda GX200 6.5hp petrol engine.

Q 2. How much air delivery does the SA1565 compressor provide?

A. It offers 20.9cfm displacement and 15.2cfm maximum free air delivery, suitable for demanding workshop and site tasks.

Q 3. What maximum pressure can this Sealey petrol compressor achieve?

A. The unit operates up to 145psi, around 10bar, supporting many industrial pneumatic applications.

Q 4. For which environments is the SA1565 particularly suitable?

A. It serves as a static air source where petrol power is preferred or mains electricity is unavailable.

Q 5. How is the pump constructed on this Sealey compressor?

A. It uses a heavy-duty, two-stage twin piston cast iron pump for durability and efficiency.

Q 6. How does the drive guard assist both protection and cooling?

A. The heavy-duty guard shields belt and flywheel while directing air over the pump to aid cooling.

Q 7. What type of fuel does the SA1565 compressor run on?

A. The description states it runs on unleaded fuel for convenience.

Q 8. Which related Sealey petrol compressors are variants of the SA1565?

A. Variant mapping lists SA5040 and SA5055 as related petrol-engine air compressors in the same range.

Q 9. What is the receiver capacity of this compressor?

A. The receiver holds 150 litres, providing significant air storage for extended tool operation.

Q 10. What outlet connection size is provided on the SA1565?

A. Technical information lists a half-inch BSP female tap as the air outlet connection.
