Product Number: 2092330

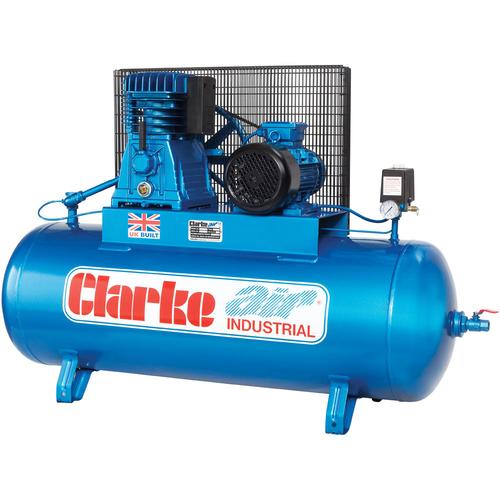

Clarke XE25/200 (WIS) 23cfm 200 Litre 5.5HP Industrial Air Compressor (400V) is an industrial duty V-belt compressor built for heavy commercial use. A 5.5hp (4125W) three-phase motor on 400V drives a slow-running twin-cylinder pump delivering 23cfm displacement at up to 145psi (10bar). Inter-stage and aftercoolers are fitted to supply cooler, drier air to tools and systems. The 200 litre CE-certified horizontal receiver provides substantial storage for demanding professional automotive and industrial applications. The motor is continuously rated and protected by an inline wired-in starter (WIS), while a fully automatic pressure switch controls working pressure. Standard equipment includes safety valve, pressure gauge, air outlet valve and drain tap. Oil-lubricated and constructed for long service, this compressor is well suited as a central air plant in busy workshops and small factories and is supported by a 12-month warranty.
| Motor (HP) | 5.5 |
|---|---|
| Watts | 4125W |
| Air Tank Volume | 200Litres |
| Air Displacement | 23cfm |
| Max Working Pressure | 145/10psi/bar |
| Oil Lubricated/Oil Free | Oil |
| Input Voltage | 400V |
| Wheel Mounted | No |
| Orientation (Horizontal/Vertical) | Horizontal |
| Packaged Weight | 127kg |
| Warranty | 12 Months |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Delivery Estimate: 5 to 7 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Clarke SE25C200 (WIS) 23cfm 200 Litre 5.5HP Air Compressor (400V)
£1,477.99
£1,449.01
2% OFF
Free delivery in UK Mainland
|
Clarke XEV16/200 (O/L) 14cfm 200 Litre 3HP Industrial Air Compressor (230V)
£949.93
£931.30
2% OFF
Free delivery in UK Mainland
|
Draper 55313 STATIONARY BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£626.24
£613.96
2% OFF
Free delivery in UK Mainland
|
Draper 55315 BELT-DRIVEN AIR COMPRESSOR, 200L, 2.2KW
£646.49
£633.81
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 2081380 | 2092274 | 55313 | 55315 | 06477 | 04394 |
| Warranty | 12 | 12 | 12 | |||
| Capacity (L) | 200 | 200 | 200 | 200 | 200 | 200 |
| Max Pressure (psi) | 10 | 145 | 145 | 145 | 150 | |
| Maximum Pressure (bar) | 10 | 10 | 10 | 10 | ||
| Power (kW) | 2.2 | 2.2 | 2.2 | 2.2 | ||
| Weight (kg) | 152 | 100 | 109 | 113 | 00 | 00 |
A. It is a 200 litre, 5.5hp, 400V three-phase belt-drive compressor with 23cfm displacement.
A. The maximum working pressure is around 10.3bar, 150psi, regulated by a fully automatic pressure switch.
A. A twin cylinder pump fitted with inter-stage and after coolers delivers cooler, drier compressed air.
A. It uses a 5.5hp, 400V three-phase motor continuously rated and protected by an inline starter.
A. It targets professional automotive and industrial users requiring dependable compressed air.
A. It includes a 200 litre horizontal CE certified air receiver for substantial air storage.
A. Variants include 2092292 and 2092360 as other three-phase industrial compressors in the same series.
A. Safety valve, pressure gauge, air outlet valve and drain tap are supplied for safe use.
A. It ensures efficient, cool operation and helps extend pump and motor life in industrial settings.
A. It measures roughly 1460mm by 470mm by 990mm and weighs around 127kg.
A. It reduces vibration transfer to floors, improving stability and operator comfort.
