Product Number: BM10555MF17
Variations

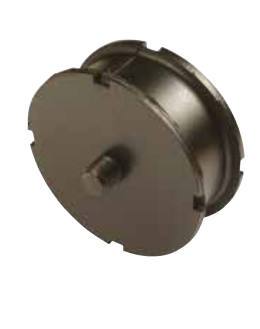

Carrying a mid-range load profile within the Bemag instrument and general mounting family, BM10555MF17 is a 105mm diameter, 55mm height rubber-to-metal bonded anti-vibration mount with dual M16 female threaded stud connections (d1 x L: M16 x 17mm; d2 x V: M16 x 16mm), engineered to isolate vibration and protect sensitive equipment across demanding operating environments. The rubber-to-metal bonded construction of this mount provides reliable vibration isolation across its load band, absorbing and attenuating vibration energy transmitted through the mounting point. This design simultaneously protects surrounding structures from vibratory stress and contributes to improved operator comfort in cab or console installations. The mount may be loaded in shear, compression, or a combination of both, offering installation flexibility across a range of equipment configurations. Stainless steel metalwork and oil-resistant or high-temperature rubber compounds are available on request for applications where the standard specification requires enhancement. With its 105mm diameter footprint and 55mm working height, BM10555MF17 sits in the mid-range of the family, suited to instruments, electronics, and light equipment where vibration isolation is a priority. Relevant industries include marine, power generation, and railway and mass transit, where protecting sensitive instrumentation from structural vibration is essential. The female-female thread configuration simplifies direct installation onto existing threaded bosses or through-bolt arrangements without additional hardware. This mount is one of several configurations offered across the Bemag instrument and general mounting range. Related variants include BM10540MF17, BM10540MM13, BM10540MM28 (105mm x 40mm male-male), BM10555MM17, BM10555MM26, and BM10555MM36 (105mm x 55mm male-male in varying thread and length combinations).
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Outer diameter D (mm) | 105 |
|---|---|
| Overall height H (mm) | 55 |
| Stud thread d1 / Stud length L (mm) | M16 x17 |
| Second stud thread d2 | M16 |
| Stud length V (mm) | 16 |
|
BRAND: Bomag
MODEL: Bomag
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CTM12548 | CTM11548 | CTM10850 | CDM80-65-65 | CDM80-55-55 | CDM80-45-45 |
| Type | Captive Mount | Captive Mount | Captive Mount | Anti-Vibration Mount | Anti-Vibration Mount | Anti-Vibration Mount |
| Size | 125mm | 115mm | 108mm | 80mm | 80mm | 80mm |
| Size Range | 101-200mm | 101-200mm | 101-200mm | 51-100mm | 51-100mm | 51-100mm |
| Thread | M16 | M16 | M16 | M16 | M16 | M16 |
A. The mount has an outer diameter (D) of 105mm and a height (H) of 55mm. Both threaded connections are M16 female: d1 x L is M16 x 17mm and d2 x V is M16 x 16mm.
A. BM10555MF17 may be loaded in shear, compression, or a combination of both, providing flexibility across different installation orientations and equipment configurations.
A. This mount is designed for instruments, electronics, and light equipment requiring vibration isolation. Industries served include marine, power generation, railway and mass transit, construction and off-highway, agriculture, automotive, and military and defence.
A. Yes — stainless steel metalwork, oil-resistant rubber, and high-temperature rubber compounds are available on request, as are additional and custom sizes.
A. Related variants include BM10540MF17, BM10540MM13, BM10540MM28, BM10555MM17, BM10555MM26, and BM10555MM36, covering different heights, thread configurations, and stud lengths across the same diameter family.
A. The bonded construction absorbs and attenuates vibration at the mounting point, protecting sensitive instruments and surrounding structures from vibratory stress, and contributing to improved operator comfort in installations such as cab or console mounting applications.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
