Product Number: M450CE_A1
Variations
| Main Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M926CE | II III & IV | 184mm x 384mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M626CE | II & III | 329mm x 238mm | 16-28mm | 1800mm |
| M450CE | II & III | 232mm x 176mm | 10-20mm | 1200mm |
| M5000CEA4 | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M5000CE | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M640CEB | II & III | 316mm x 211mm | 16-28mm | 1200mm |
| M440CE | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB-Yellow | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CE-Yellow | II & III | 162mm x 245 | 10-20mm | 1200mm |
| M450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| MX440CE-YELLOW | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M528CE | III | 215mm x 296mm | 16-28mm | 1800mm |
| MX450CE | II | 176mm x 232 mm | 10 - 20mm | 1200mm |
| M545CE | II | 200mm x 259mm | 10-20mm | 1800mm |
| MX450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| M545CEB | II | 200mm x 259mm | 16-28mm | 1800mm |
| M555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| M555CEB-Yellow | II & III | 185mm x 276mm | 16-28mm | 1200mm |
| M555CE-Yellow | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CEB | II & III | 185mm x 276 mm | 16-28mm | 1200mm |
| MX640CEB | II | 211mm x 316mm | 16-28mm | 1200mm |
| MX725CEB | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M610CE-YELLOW | II | 195mm x 325mm | 16-28mm | 1800mm |
| MX725CEB-YELLOW | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M6261CE | III | 238mm x 329mm | 16-28mm | 1200mm |
| MX926CE | II ,III & IV | 184mm x 384 mm | 16 - 28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M640CEB | II & III | 211mm x 316mm | 16-28mm | 1200mm |
| M725CEB-YELLOW | II & III | 190mm x 393mm | 16-28mm | 1200mm |
| M820CE | II | 228mm x 422mm | 16-28mm | 1800mm |
| M8231CEB | II & lll | 217mm x 420mm | 16-28mm | 1200mm |
| M310CEB-Yellow | III | 252mm x 168mm | 16-28mm | 1200mm |
| M926CEH | II III & IV | 184mm x 384 mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M926CEH -YELLOW | II III & IV | 184mm x 384mm | 16-28mm | 300mm |
| M926CE-YELLOW | II III & IV | 184mm x 384mm | 16-28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M440CE_A1 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CE_A2 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB_A1 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB_A2 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M450CE_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CE_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |

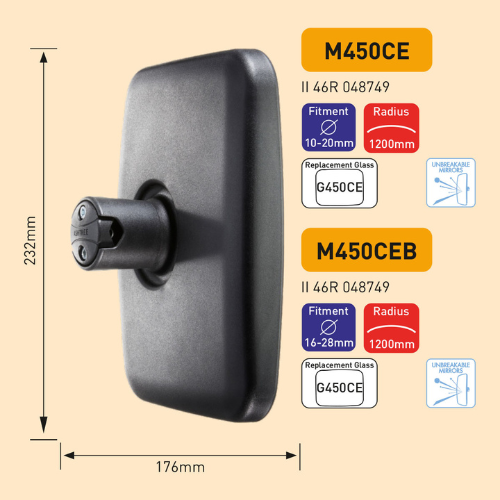

Ashtree M450CE_A1 main mirror is an unbreakable class II and III mirror head aimed at plant and construction machinery. With a 176mm x 232mm convex lens and a 1200mm radius, it provides a broad rearward view that assists operators when manoeuvring and monitoring loads on site. Designed for 16–28mm arms, the mirror suits heavy-duty mounting systems on excavators, dumpers and other plant equipment. Its unbreakable reflective surface and robust housing are engineered for rugged environments where mirrors are frequently exposed to impacts, debris and vibration. M450CE_A1 is widely used as a primary side mirror or as an upgrade where standard mirrors prove too fragile. For plant fleets seeking reliable, long-life Ashtree mirrors, this model provides a strong combination of visibility and durability.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Unbreakable Mirror |
|---|---|
| Class | II |
| Dimension | 176mm x 232mm |
| Radius | 1200mm |
| Fitment | 16-28mm |
| Replacement glass | G450CE |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M450CEB | M450CEB_A1 | M450CEB_A2 | M440CEB | M440CEB_A1 | M440CEB_A2 |
| Type of Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Main Mirror | Main Mirror |
| Class of Mirror | II | II & III | II & III | II & III | II & III | II & III |
| Mirror Dimension | 176mm x 232mm | 176mm x 232mm | 176mm x 232mm | 162mm x 245mm | 162mm x 245mm | 162mm x 245mm |
| Mirror Fitment | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm |
| Mirror Radius | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. Ashtree M450CE_A1 main mirror helps plant operators see behind vehicles during reversing, loading and general site manoeuvres.
A. M450CE_A1 is described as a main mirror for plant and construction equipment, supporting daily rear visibility on busy work sites.
A. It gives drivers a clear view behind, making it easier to notice obstacles, personnel and other machinery before reversing.
A. M450CE_A1 mounts on compatible mirror arms or brackets that hold the mirror steady under site vibration and rough terrain.
A. Excavators, loaders and site dumpers commonly use M450CE_A1 where robust main mirrors are needed as part of construction equipment parts.
A. Yes, M450CE_A1 is designed for challenging conditions, coping with dust, vibration and knock risks typical of quarry and demolition sites.
A. It offers a more generous rear image than many compact mirrors, helping operators judge distances to obstacles more confidently.
A. It can be stocked among machine parts and machinery spare parts for plant fleets needing replacement main mirrors.
A. By improving rearward visibility, M450CE_A1 helps operators notice personnel and equipment behind machines before moving.
A. Installers should ensure brackets are sufficiently strong, fixings secure and the mirror angle aligned with the operator’s normal sightline.
A. Yes, it is well suited for standardising main mirrors across similar plant where a consistent rear view is required.
A. Upgrading is most beneficial where machines work in confined compounds, near stockpiles or around other plant and workers.
