Product Number: M5000CEA4
Variations
| Main Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M926CE | II III & IV | 184mm x 384mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M626CE | II & III | 329mm x 238mm | 16-28mm | 1800mm |
| M450CE | II & III | 232mm x 176mm | 10-20mm | 1200mm |
| M5000CEA4 | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M5000CE | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M640CEB | II & III | 316mm x 211mm | 16-28mm | 1200mm |
| M440CE | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB-Yellow | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CE-Yellow | II & III | 162mm x 245 | 10-20mm | 1200mm |
| M450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| MX440CE-YELLOW | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M528CE | III | 215mm x 296mm | 16-28mm | 1800mm |
| MX450CE | II | 176mm x 232 mm | 10 - 20mm | 1200mm |
| M545CE | II | 200mm x 259mm | 10-20mm | 1800mm |
| MX450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| M545CEB | II | 200mm x 259mm | 16-28mm | 1800mm |
| M555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| M555CEB-Yellow | II & III | 185mm x 276mm | 16-28mm | 1200mm |
| M555CE-Yellow | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CEB | II & III | 185mm x 276 mm | 16-28mm | 1200mm |
| MX640CEB | II | 211mm x 316mm | 16-28mm | 1200mm |
| MX725CEB | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M610CE-YELLOW | II | 195mm x 325mm | 16-28mm | 1800mm |
| MX725CEB-YELLOW | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M6261CE | III | 238mm x 329mm | 16-28mm | 1200mm |
| MX926CE | II ,III & IV | 184mm x 384 mm | 16 - 28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M640CEB | II & III | 211mm x 316mm | 16-28mm | 1200mm |
| M725CEB-YELLOW | II & III | 190mm x 393mm | 16-28mm | 1200mm |
| M820CE | II | 228mm x 422mm | 16-28mm | 1800mm |
| M8231CEB | II & lll | 217mm x 420mm | 16-28mm | 1200mm |
| M310CEB-Yellow | III | 252mm x 168mm | 16-28mm | 1200mm |
| M926CEH | II III & IV | 184mm x 384 mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M926CEH -YELLOW | II III & IV | 184mm x 384mm | 16-28mm | 300mm |
| M926CE-YELLOW | II III & IV | 184mm x 384mm | 16-28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M440CE_A1 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CE_A2 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB_A1 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB_A2 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M450CE_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CE_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |

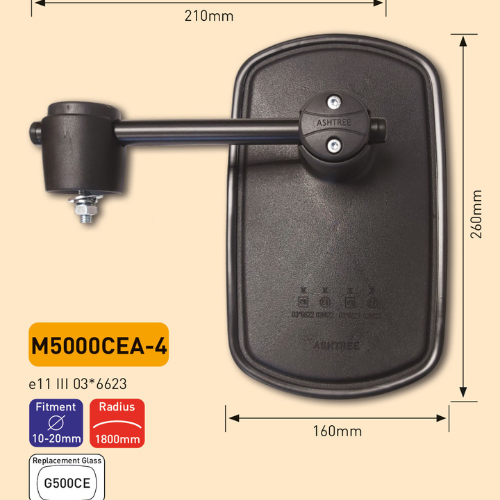

Ashtree M5000CEA4 main mirror is a class II and III mirror head supplied complete with a 210mm arm and mounting bracket for straightforward installation. The 160mm x 260mm convex lens with an 1800mm radius delivers a wide rear view suitable for trucks, HGVs, agricultural tractors and industrial machinery. Designed for 10–20mm diameter arm fitment, the integrated arm and bracket make this mirror ideal for new builds, machine refurbishments or conversions from alternative mirror systems. A durable housing and high‑quality glass are engineered for continuous duty in demanding on‑road and off‑highway environments where vibration and weather exposure are severe. Ashtree M5000CEA4 is often selected as a direct replacement for worn OEM units or for visibility upgrades across mixed fleets. It suits users searching for robust Ashtree mirrors that function as reliable truck wing mirrors and tractor mirrors over long service periods.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Main Mirror |
|---|---|
| Class | II & III |
| Dimension | 160mm x 260mm |
| Radius | 1800mm |
| Fitment | 10-20mm |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M5000CE | M450CE | M555CE | M555CE-Yellow | M440CE | M440CE_A1 | M440CE_A2 | MX440CE-YELLOW |
| Type of Mirror | Main Mirror | Main Mirror | Main Mirror | Main Mirror | Unbreakable Mirror | Main Mirror | Main Mirror | Unbreakable Mirror |
| Class of Mirror | II & III | II & III | II & III | II & III | II & III | II & III | II & III | II & III |
| Mirror Dimension | 160mm x 260mm | 232mm x 176mm | 185mm x 276mm | 185mm x 276mm | 162mm x 245mm | 162mm x 245mm | 162mm x 245mm | 162mm x 245mm |
| Mirror Fitment | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm | 10-20mm |
| Mirror Radius | 1800mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm | 1200mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. Ashtree M5000CEA4 is a main mirror supplied with a 210mm arm and mounting bracket for quick, compatible installation.
A. M5000CEA4 is a class II and III main mirror measuring about 160mmx260mm with an 1800mm radius.
A. The supplied arm and bracket are designed to fit 10-20mm mirror arm arrangements, common on many commercial machines.
A. M5000CEA4 is commonly used on tractors, loaders and hgvs where complete mirror-and-arm assemblies simplify replacement.
A. Yes, M5000CEA4 is built for heavy-duty use, handling vibration, weather and debris in agricultural and construction environments.
A. It provides a matched head and arm kit, reducing installation time and compatibility questions when replacing existing mirror assemblies.
A. M5000CEA4 can be supplied as part of construction equipment parts ranges, giving fleets a complete main mirror solution.
A. Its 160mmx260mm head and 1800mm radius give a stable rear view, supporting safer reversing with long trailers or implements.
A. Fitters should align the 210mm arm correctly, secure bracket fixings and set the mirror angle to the operator’s line of sight.
A. Yes, fleets can standardise on M5000CEA4 where they want consistent mirror and arm assemblies on similar machines.
A. It is ideal for machine parts catalogues targeting customers who prefer complete retrofit mirror kits over head-only replacements.
A. It is especially helpful where machines work long hours on road and site, and quick, reliable mirror replacements are important.
