Product Number: MX926CE
| Main Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M926CE | II III & IV | 184mm x 384mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M626CE | II & III | 329mm x 238mm | 16-28mm | 1800mm |
| M450CE | II & III | 232mm x 176mm | 10-20mm | 1200mm |
| M5000CEA4 | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M5000CE | II & III | 160mm x 260mm | 10-20mm | 1800mm |
| M640CEB | II & III | 316mm x 211mm | 16-28mm | 1200mm |
| M440CE | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB-Yellow | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CE-Yellow | II & III | 162mm x 245 | 10-20mm | 1200mm |
| M450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| MX440CE-YELLOW | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M528CE | III | 215mm x 296mm | 16-28mm | 1800mm |
| MX450CE | II | 176mm x 232 mm | 10 - 20mm | 1200mm |
| M545CE | II | 200mm x 259mm | 10-20mm | 1800mm |
| MX450CEB | II | 176mm x 232mm | 16-28mm | 1200mm |
| M545CEB | II | 200mm x 259mm | 16-28mm | 1800mm |
| M555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| M555CEB-Yellow | II & III | 185mm x 276mm | 16-28mm | 1200mm |
| M555CE-Yellow | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CE | II & III | 185mm x 276mm | 10-20mm | 1200mm |
| MX555CEB | II & III | 185mm x 276 mm | 16-28mm | 1200mm |
| MX640CEB | II | 211mm x 316mm | 16-28mm | 1200mm |
| MX725CEB | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M610CE-YELLOW | II | 195mm x 325mm | 16-28mm | 1800mm |
| MX725CEB-YELLOW | II and III | 190mm x 390mm | 16-28mm | 1200mm |
| M6261CE | III | 238mm x 329mm | 16-28mm | 1200mm |
| MX926CE | II ,III & IV | 184mm x 384 mm | 16 - 28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M640CEB | II & III | 211mm x 316mm | 16-28mm | 1200mm |
| M725CEB-YELLOW | II & III | 190mm x 393mm | 16-28mm | 1200mm |
| M820CE | II | 228mm x 422mm | 16-28mm | 1800mm |
| M8231CEB | II & lll | 217mm x 420mm | 16-28mm | 1200mm |
| M310CEB-Yellow | III | 252mm x 168mm | 16-28mm | 1200mm |
| M926CEH | II III & IV | 184mm x 384 mm | 16 -28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M926CEH -YELLOW | II III & IV | 184mm x 384mm | 16-28mm | 300mm |
| M926CE-YELLOW | II III & IV | 184mm x 384mm | 16-28mm | Main Lens 1200mm & Wide Angle Lens 300mm |
| M440CE_A1 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CE_A2 | II & III | 162mm x 245mm | 10-20mm | 1200mm |
| M440CEB_A1 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M440CEB_A2 | II & III | 162mm x 245mm | 16-28mm | 1200mm |
| M450CE_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CE_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A1 | II & III | 176mm x 232mm | 16-28mm | 1200mm |
| M450CEB_A2 | II & III | 176mm x 232mm | 16-28mm | 1200mm |

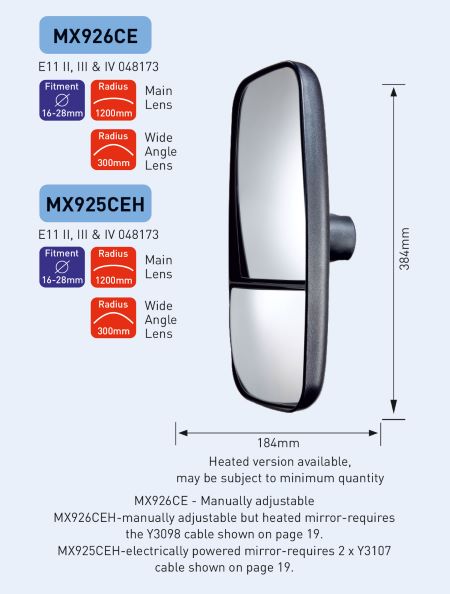

Ashtree MX926CE twin lens main mirror is a manually adjustable class II, III and IV mirror head designed for heavy commercial vehicles and off highway machinery. Measuring 184mm x 384mm, it combines a main convex lens with an additional wide angle lens, giving drivers both long range rearward vision and enhanced close range coverage around trucks, HGVs, tractors and construction equipment. The mirror is intended to fit compatible Ashtree arms and is commonly used where improved blind spot reduction is required without multiple separate mirrors. Its durable housing and quality mirror surfaces are specified for demanding agricultural and industrial environments where vibration, dirt and weather can quickly degrade inferior equipment. MX926CE is an ideal choice for fleets upgrading older vehicles to more modern combined main and wide angle mirror solutions based on the Ashtree system.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Powered Mirror with Manual Adjustment |
|---|---|
| Class | II ,III & IV |
| Dimension | 184mm x 384 mm |
| Main lens radius | 1200mm |
| wide-angle lens radius | 300mm |
| Fitment | 16 - 28mm |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M926CEH | M926CE | M926CE-YELLOW | M9231CEH | M923CEH | MX725CEB | M922CEH | M725CEB-YELLOW |
| Type of Mirror | Heated Mirror | Powered & Adjustable Mirror | Powered & Adjustable Mirror | Heated Mirror | Heated Mirror | Unbreakable Mirror | Powered & Adjustable Mirror | Main Mirror |
| Class of Mirror | II, III & IV | II, III & IV | II, III & IV | II & IV | II & IV | II & III | II & IV | II & III |
| Mirror Dimension | 184mm x 384mm | 184mm x 384mm | 184mm x 384mm | 210mm x 400mm | 210mm x 400mm | 190mm x 390mm | 400mm x 210mm | 190mm x 393mm |
| Mirror Fitment | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm |
| Mirror Radius | 1200mm | 1200mm | 1200mm | 1200mm | 1800mm | 1200mm | 1800mm | 1200mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. Ashtree MX926CE twin-lens mirror combines main and wide-angle views for rear and side visibility.
A. Mirror MX926CE uses the 184mmx384mm twin-lens head and is class II, III and IV for combined coverage.
A. Its main lens uses a longer radius for rear vision, while the wide-angle lens uses a smaller radius to broaden side coverage.
A. Ashtree MX926CE is designed for arms around 16–28mm, fitting heavy-duty arm systems on large machines.
A. MX926CE is typically used on tractors, hgvs and construction equipment where combined rear and wide-angle visibility is needed.
A. Yes, MX926CE uses robust construction to withstand vibration, weather and rough use on roads and sites.
A. Mirror MX926CE includes twin lenses and a large head, giving both rear and side coverage in a single unit.
A. Mirror MX926CE can often replace OEM twin-lens mirrors when its dimensions, curvature and mounting correspond to the original.
A. Yes, MX926CE is suitable as an aftermarket twin-lens mirror for machines working in mixed environments.
A. Technicians should confirm 16–28mm arm compatibility, tighten fixings and adjust both lenses so critical zones appear in view.
A. Machinery spare parts buyers can choose MX926CE to standardise twin-lens coverage across similar fleets.
A. Mirror MX926CE is especially valuable when machines operate near pedestrians and other vehicles in confined areas.
