Product Number: M455CEB
Variations
| Wide Angle Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M455CE | IV | 161mm x 246mm | 10-20mm | 300mm |
| MX250CEB-YELLOW | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| M4402CEB | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CE - YELLOW | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX430CE | IV | 240mm x 155mm | 10 - 20mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX4402CE | IV & V | 245mm x 162 mm | 10 - 20mm | 450mm |
| MX4402CEB | IV & V | 245mm x 162 mm | 16 - 28mm | 450mm |
| M455CEB | IV | 246mm x 161mm | 16-28mm | 300mm |
| MX550CEA3 | VI | 293mm x 210mm | Comes with Arm and Mounting Bracket | 250mm |
| MX550CEB | VI | 293mm x 210mm | 16-28mm | 250mm |
| M5601CE | VI | 255mm x 255mm | 10-20mm | 300mm |
| M5601CEA | VI | 255mm x 255mm | 10 - 20mm | 300mm |
| M2381CE | IV & V | 193mm x 193mm | 16-28mm | 300mm |
| M238CE | IV & V | 193mm x 193mm | 16-28mm | 450mm |
| M250CE | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX941 | - | 152mm x 152mm | Comes with stud for fixing of 13-16mm dia arms | 450mm |
| M250CEB | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941A | - | 152mm x 152mm | 13 -16mm | 450mm |
| M250CEB-Yellow | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941B | - | - | Comes with clamp for fitment to 16-28mm dia arms | 450mm |
| M250CE-Yellow | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| M430CEA1 | IV | 240mm x 155mm | Comes with S1090 arm for fitment | 300mm |
| MX943 | - | 220mm x 110mm | 10 - 20mm | 100mm |
| M430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX943A2 | - | 110mm x 220mm | Comes with Mounting Bracket | 100mm |
| M435CE | IV & V | 215mm x 118mm | 10-20mm | 300mm |
| M4402CE | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX948 | - | 280mm x 160mm | 10-20mm | 150mm |
| MX948B | - | 280mm x 160mm | 16 -18mm | 150mm |
| MX250CE | IV & V | 208mm x 208mm | 10 - 20mm | 300mm |
| M435CEA2_A1 | IV & V | 215mm x 118mm | Dual M6 Slot Mounting Bracket | 300mm |
| M435CE-Stud_A1 | IV & V | - | M6 Stud | 300mm |

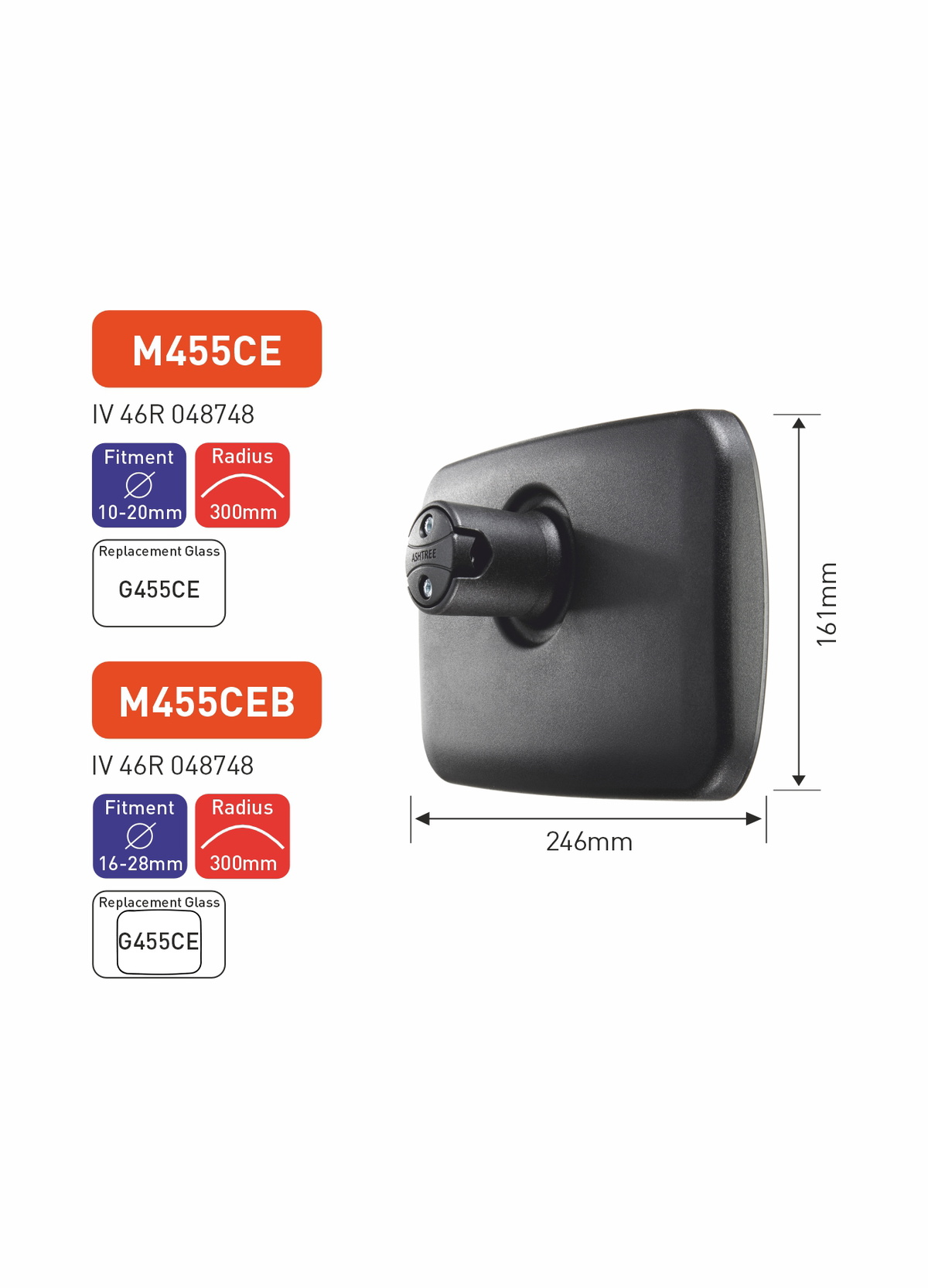

Ashtree M455CEB wide angle mirror is a class IV mirror head designed to provide close‑range visibility on commercial and off‑highway vehicles. With a 246mm x 161mm convex lens and a 300mm radius, it delivers a broad field of view that complements main mirrors when manoeuvring, turning at junctions or operating on busy worksites. Designed for 16–28mm diameter arms, M455CEB can be mounted alongside primary mirrors on trucks, HGVs, tractors and loaders. The robust construction and high‑quality mirror surface are intended for demanding agricultural and industrial environments. Cross‑reference information links M455CEB to customer references including Wacker 1000393702, Kramer 1000393702 and JCB 400/L8380, helping users match and replace OE mirrors accurately on those machines. This mirror is ideal for operators searching for blind spot mirror solutions, Ashtree mirrors and truck wing mirrors that improve near‑side and front‑corner awareness around the cab.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Wide Angle Mirror |
|---|---|
| Class | IV |
| Dimension | 246mm x 161mm |
| Radius | 300mm |
| Fitment | 16-28mm |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M430CEB | M455CE | MX430CEB | M2381CE | M238CE | M250CEB | MX430CE | MX4402CEB |
| Type of Mirror | Wide Angle Mirror | Wide Angle Mirror | Unbreakable Mirror | Wide Angle Mirror | Wide Angle Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror |
| Class of Mirror | IV | IV | IV | IV & V | IV & V | IV & V | IV | IV & V |
| Mirror Dimension | 240mm x 155mm | 161mm x 246mm | 240mm x 155mm | 193mm x 193mm | 193mm x 193mm | 208mm x 208mm | 240mm x 155mm | 245mm x 162mm |
| Mirror Fitment | 16-28mm | 10-20mm | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 10-20mm | 16-28mm |
| Mirror Radius | 300mm | 300mm | 300mm | 300mm | 450mm | 300mm | 300mm | 450mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. Ashtree M455CEB wide-angle mirror provides broad side coverage, allowing operators to monitor blind spots beside large commercial and agricultural vehicles.
A. M455CEB is a class IV mirror measuring about 246mmx161mm with a 300mm radius, giving strong wide-angle performance.
A. M455CEB is designed for 16-28mm arms, matching heavy-duty arm systems used on larger plant and commercial vehicles.
A. M455CEB is often fitted to tractors, hgvs and construction equipment where wide-angle side visibility is essential for safety.
A. Yes, M455CEB is built with robust materials and an unbreakable lens to withstand vibration, impacts and weather in demanding environments.
A. Unlike a main mirror, M455CEB focuses on side blind spots close to the cab, helping drivers monitor vulnerable areas around the vehicle.
A. M455CEB corresponds to Wacker reference 1000393702, JCB reference 400/L8380 and Kramer reference 1000393702 in OEM documentation.
A. It matches their 1000393702 reference, giving operators a direct wide-angle replacement mirror that maintains original visibility performance.
A. Yes, for machines using JCB reference 400/L8380, M455CEB offers a suitable replacement when dimensions and mounting match the factory mirror.
A. Technicians should compare arm sizes, confirm bracket compatibility and set the mirror angle to replicate the approved OE visibility zone.
A. Yes, heavy machinery parts buyers can specify M455CEB where they need OEM-compatible wide-angle mirrors for Wacker, JCB and Kramer fleets.
A. It gives the largest gain where machines operate close to pedestrians and other plant, such as construction sites and industrial yards.
