Product Number: M238CE
Variations
| Wide Angle Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M455CE | IV | 161mm x 246mm | 10-20mm | 300mm |
| MX250CEB-YELLOW | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| M4402CEB | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CE - YELLOW | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX430CE | IV | 240mm x 155mm | 10 - 20mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX4402CE | IV & V | 245mm x 162 mm | 10 - 20mm | 450mm |
| MX4402CEB | IV & V | 245mm x 162 mm | 16 - 28mm | 450mm |
| M455CEB | IV | 246mm x 161mm | 16-28mm | 300mm |
| MX550CEA3 | VI | 293mm x 210mm | Comes with Arm and Mounting Bracket | 250mm |
| MX550CEB | VI | 293mm x 210mm | 16-28mm | 250mm |
| M5601CE | VI | 255mm x 255mm | 10-20mm | 300mm |
| M5601CEA | VI | 255mm x 255mm | 10 - 20mm | 300mm |
| M2381CE | IV & V | 193mm x 193mm | 16-28mm | 300mm |
| M238CE | IV & V | 193mm x 193mm | 16-28mm | 450mm |
| M250CE | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX941 | - | 152mm x 152mm | Comes with stud for fixing of 13-16mm dia arms | 450mm |
| M250CEB | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941A | - | 152mm x 152mm | 13 -16mm | 450mm |
| M250CEB-Yellow | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941B | - | - | Comes with clamp for fitment to 16-28mm dia arms | 450mm |
| M250CE-Yellow | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| M430CEA1 | IV | 240mm x 155mm | Comes with S1090 arm for fitment | 300mm |
| MX943 | - | 220mm x 110mm | 10 - 20mm | 100mm |
| M430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX943A2 | - | 110mm x 220mm | Comes with Mounting Bracket | 100mm |
| M435CE | IV & V | 215mm x 118mm | 10-20mm | 300mm |
| M4402CE | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX948 | - | 280mm x 160mm | 10-20mm | 150mm |
| MX948B | - | 280mm x 160mm | 16 -18mm | 150mm |
| MX250CE | IV & V | 208mm x 208mm | 10 - 20mm | 300mm |
| M435CEA2_A1 | IV & V | 215mm x 118mm | Dual M6 Slot Mounting Bracket | 300mm |
| M435CE-Stud_A1 | IV & V | - | M6 Stud | 300mm |

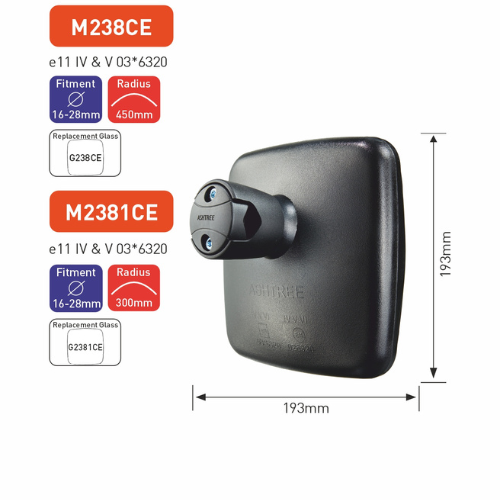

Ashtree M238CE wide angle mirror is a class IV and V mirror head designed to extend close range visibility around commercial vehicles and machinery. The 193mm x 193mm convex lens offers a wide lateral view that helps drivers see pedestrians, obstacles and other vehicles near the cab that are not visible in main mirrors. M238CE is suitable for use on trucks, HGVs, tractors and loaders as a supplementary blind spot mirror, especially on nearside or front corners. It works with compatible Ashtree mirror arms, making it straightforward to add to existing mirror packages during upgrades or safety improvements. The mirror’s robust construction supports long term use in demanding agricultural and industrial environments. Fleets seeking to improve blind spot coverage around their vehicles will find M238CE a valuable part of an Ashtree visibility system.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Wide Angle Mirror |
|---|---|
| Class | IV & V |
| Dimension | 193mm x 193mm |
| Radius | 450mm |
| Fitment | 16-28mm |
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M2381CE | MX4402CEB | M250CEB | M250CEB-Yellow | M4402CEB | M4402CE | MX250CEB-YELLOW | MX4402CE |
| Type of Mirror | Wide Angle Mirror | Unbreakable Mirror | Unbreakable Mirror | Wide Angle Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror |
| Class of Mirror | IV & V | IV & V | IV & V | IV & V | IV & V | IV & V | IV & V | IV & V |
| Mirror Dimension | 193mm x 193mm | 245mm x 162mm | 208mm x 208mm | 208mm x 208mm | 245mm x 162mm | 245mm x 162mm | 208mm x 208mm | 245mm x 162mm |
| Mirror Fitment | 16-28mm | 16-28mm | 16-28mm | 16-28mm | 10-20mm | 10-20mm | 16-28mm | 10-20mm |
| Mirror Radius | 300mm | 450mm | 300mm | 300mm | 450mm | 450mm | 300mm | 450mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. The Ashtree M238CE wide-angle mirror provides close-range side visibility on commercial vehicles and machinery, helping operators manage blind spots.
A. Model M238CE is a class IV & V mirror with approximate dimensions 193mmx193mm, giving a compact square head for wide peripheral coverage.
A. The M238CE mirror uses a convex radius around 450mm, providing a wide-angle view that balances coverage with image interpretation for operators.
A. The Ashtree M238CE is designed to clamp securely onto mirror arms around 16-28mm, suitable for many agricultural and construction machine installations.
A. Mirror M238CE is typically fitted on tractors, trucks, hgvs and plant machinery that require wide-angle coverage close to the vehicle sides.
A. Yes, M238CE features durable construction intended to withstand vibration, exposure and debris present in industrial, agricultural and construction environments.
A. As a class IV & V mirror with 450mm radius, M238CE offers enhanced side visibility, helping operators see more of the immediate surroundings.
A. Ashtree M238CE can replace many wide-angle mirrors where its dimensions, curvature and 16-28mm fitment match the original mirror arrangement.
A. By expanding the visible area along the vehicle sides, M238CE helps operators detect pedestrians, barriers and equipment sooner during manoeuvres.
A. Operators should mount M238CE at a height and angle that reveal blind zones around the cab without obstructing other mirrors or forward views.
A. Thanks to its standard 16-28mm mounting, M238CE can often be standardised across different machines needing similar wide-angle side visibility.
A. Mirror M238CE is especially beneficial in yards, depots and construction sites where low-speed movement near personnel and equipment is common.
