Product Number: M435CE-Stud_A1
Variations
| Wide Angle Mirror (Click a part number to navigate to the product page) | ||||
| Product Number | Mirror Class | Dimension | Fitment | Radius |
|---|---|---|---|---|
| M455CE | IV | 161mm x 246mm | 10-20mm | 300mm |
| MX250CEB-YELLOW | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| M4402CEB | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CE - YELLOW | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX430CE | IV | 240mm x 155mm | 10 - 20mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX4402CE | IV & V | 245mm x 162 mm | 10 - 20mm | 450mm |
| MX4402CEB | IV & V | 245mm x 162 mm | 16 - 28mm | 450mm |
| M455CEB | IV | 246mm x 161mm | 16-28mm | 300mm |
| MX550CEA3 | VI | 293mm x 210mm | Comes with Arm and Mounting Bracket | 250mm |
| MX550CEB | VI | 293mm x 210mm | 16-28mm | 250mm |
| M5601CE | VI | 255mm x 255mm | 10-20mm | 300mm |
| M5601CEA | VI | 255mm x 255mm | 10 - 20mm | 300mm |
| M2381CE | IV & V | 193mm x 193mm | 16-28mm | 300mm |
| M238CE | IV & V | 193mm x 193mm | 16-28mm | 450mm |
| M250CE | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| MX941 | - | 152mm x 152mm | Comes with stud for fixing of 13-16mm dia arms | 450mm |
| M250CEB | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941A | - | 152mm x 152mm | 13 -16mm | 450mm |
| M250CEB-Yellow | IV & V | 208mm x 208mm | 16-28mm | 300mm |
| MX941B | - | - | Comes with clamp for fitment to 16-28mm dia arms | 450mm |
| M250CE-Yellow | IV & V | 208mm x 208mm | 10-20mm | 300mm |
| M430CEA1 | IV | 240mm x 155mm | Comes with S1090 arm for fitment | 300mm |
| MX943 | - | 220mm x 110mm | 10 - 20mm | 100mm |
| M430CEB | IV | 240mm x 155mm | 16-28mm | 300mm |
| MX943A2 | - | 110mm x 220mm | Comes with Mounting Bracket | 100mm |
| M435CE | IV & V | 215mm x 118mm | 10-20mm | 300mm |
| M4402CE | IV & V | 245mm x 162mm | 10-20mm | 450mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX250CEB | IV & V | 208mm x 208mm | 16 - 18mm | 300mm |
| MX948 | - | 280mm x 160mm | 10-20mm | 150mm |
| MX948B | - | 280mm x 160mm | 16 -18mm | 150mm |
| MX250CE | IV & V | 208mm x 208mm | 10 - 20mm | 300mm |
| M435CEA2_A1 | IV & V | 215mm x 118mm | Dual M6 Slot Mounting Bracket | 300mm |
| M435CE-Stud_A1 | IV & V | - | M6 Stud | 300mm |

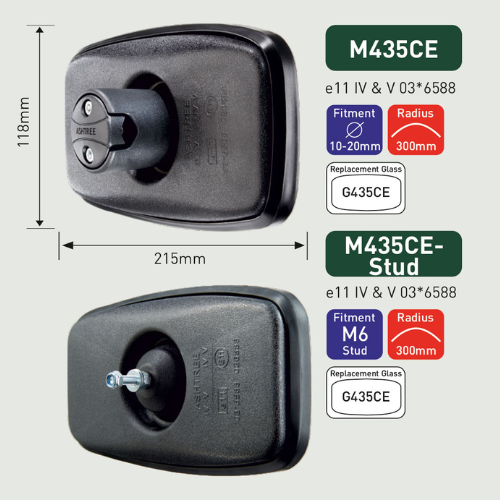

Ashtree M435CE-Stud_A1 wide angle mirror is a class IV and V mirror head with M6 stud fitment, designed for applications requiring a compact blind-spot mirror on commercial vehicles and machinery. The 215mm x 118mm convex lens with a 300mm radius provides a wide lateral view, making it ideal for monitoring close-range areas beside trucks, HGVs, tractors and construction equipment. The M6 stud mounting allows direct attachment to custom brackets, gantries or machine structures where standard arm clamps are not suitable. This makes M435CE-Stud_A1 a flexible option for specialist equipment or retrofit projects in industrial and agricultural settings. Its robust housing and reflective surface are engineered for high-vibration, outdoor environments. The mirror is a useful addition to Ashtree mirror packages where tailored blind-spot coverage is required.
Key Features:This mirror is commonly used on commercial vehicles and machinery to improve driver awareness during reversing, manoeuvring, junction turns and site operation. It is suitable for use on trucks, HGVs, tractors, loaders, telehandlers and other industrial equipment, helping reduce blind spots and support safer operation in urban, agricultural and construction environments.
Still not sure about what you are looking for, you can find the Ashtree PDF in the Download section. By selecting the product number within the Document, you'll be redirected to the corresponding product page. Also Check out the Video on Ashtree Mirror Guide attached in image section.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Type | Wide Angle Mirror |
|---|---|
| Class | IV & V |
| Radius | 300mm |
| Fitment | M6 Stud Fitment |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Title: Your Ultimate Guide to Choosing the Perfect Mirror Introduction: Welcome to PartsForMachines, where safety on a construction site, a farm, or a road is our top priority. Mirrors are essential to any Plant or Agriculture machine's safety, providing dri...
Standard Delivery: £3.99
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | M435CEA2_A1 | M2381CE | M430CEA1 | M238CE | M250CE | M250CEB | MX250CE | MX250CEB |
| Type of Mirror | Wide Angle Mirror | Wide Angle Mirror | Wide Angle Mirror | Wide Angle Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror | Unbreakable Mirror |
| Class of Mirror | IV & V | IV & V | IV | IV & V | IV & V | IV & V | IV & V | IV & V |
| Mirror Dimension | 215mm x 118mm | 193mm x 193mm | 240mm x 155mm | 193mm x 193mm | 208mm x 208mm | 208mm x 208mm | 208mm x 208mm | 208mm x 208mm |
| Mirror Fitment | 16-28mm | 16-28mm | 10-20mm | 16-28mm | 10-20mm | 16-18mm | ||
| Mirror Radius | 300mm | 300mm | 300mm | 450mm | 300mm | 300mm | 300mm | 300mm |
A. Standard UK Mainland delivery is 2–3 working days.
A. No, delivery charges are calculated separately at checkout based on order weight, size, and delivery location.
A. This product is covered under a 12 month warranty from the date of purchase.
A. Ashtree M435CE-Stud_A1 wide-angle mirror improves side visibility near the cab, revealing close blind spots that ordinary main mirrors often cannot show clearly.
A. M435CE-Stud_A1 is based on a compact wide-angle head around 215mm x 118mm, giving class IV and V style coverage near the vehicle sides.
A. The curved surface broadens the view, so pedestrians, machinery and barriers appear sooner alongside the vehicle, helping operators react earlier when manoeuvring.
A. M435CE-Stud_A1 uses a stud mounting, letting workshops bolt it securely to suitable brackets on industrial trucks and specialist plant machinery.
A. Mirror M435CE-Stud_A1 is suited to forklifts, construction machinery and other equipment needing close-in wide-angle visibility around the machine’s working area.
A. Yes, M435CE-Stud_A1 is built to handle vibration, weather and daily shocks experienced on construction sites, industrial yards and agricultural operations.
A. Unlike a flat mirror, M435CE-Stud_A1’s curved lens shows a much wider area, uncovering blind spots that would otherwise stay hidden from the operator.
A. Yes, M435CE-Stud_A1 is suitable as a machinery spare part for replacing worn mirrors on industrial equipment, provided mounting style and size match the original.
A. It expands the visible zone around the vehicle, so operators can spot nearby colleagues, racking and plant sooner, reducing near misses in busy workspaces.
A. Fitters should torque the stud correctly, confirm the bracket is rigid and adjust the mirror to the driver’s eye line for a stable, usable image.
A. Its compact size and stud mounting make M435CE-Stud_A1 a practical standard mirror across mixed fleets of warehouse, factory and yard machinery.
A. Upgrading is especially worthwhile where machines work close to pedestrians, racking or tight doorways, and reliable wide-angle vision is essential for safety.
