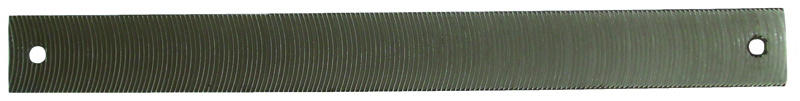

Product Number: 05711100
Achieving a clean, flat finish on bodywork repairs demands a blade that can follow panel contours without snapping under pressure. The Sykes-Pickavant 05711100 Body Blade is engineered specifically for this challenge, combining rigidity where it matters with the controlled flex that bodywork filing requires.
The blade is manufactured from specially heat treated alloy steel, a process that delivers both hardness and flexibility in a single material. This balance allows the blade to conform to curved body panels during use whilst maintaining the structural integrity needed for consistent, controlled cutting. The precision cut teeth remove material evenly across the stroke, and the chamfered blade edges reduce the risk of panel scoring or unintended marking around the working area.
At 356mm in length, the blade offers a generous working surface suited to medium and large panel sections. The standard flat cut profile is rated at 9 TPI (teeth per inch), a pitch suited to progressive material removal on alloy and mild steel body panels. A maximum deflection rating of 14mm confirms the degree of flex available before the blade reaches its structural limit, giving the technician a clear working parameter. Overall product dimensions are 367 x 143 x 40mm and the blade weighs 0.275kg.
The 9 TPI specification makes this blade a standard replacement or additional cutting option for compatible body file holders accepting flat blades of this length.
Additional Information
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 367 x 143 x 40 mm |
|---|---|
| Product Weight | 0.275 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 05711200 | 05711500 | 12731200 | 031612V2 | SPEEDLINE5001 |
| Type | Body | Body | Spare Part | ||
| Part Type | Pick | Pick | Pick | Pick | |
| TPI | 12 | 6 | |||
A. The blade is manufactured from specially heat treated alloy steel, which provides a combination of hardness and flexibility suited to bodywork filing applications.
A. The blade features a standard flat cut profile at 9 TPI (teeth per inch).
A. The blade is 356mm in length. The overall product dimensions including packaging are 367 x 143 x 40mm.
A. The blade has a maximum deflection rating of 14mm, indicating the degree of flex available before the blade reaches its structural limit.
A. Yes. The blade edges are chamfered, which helps reduce the risk of scoring or marking panels in the area surrounding the cutting zone.
