Product Number: 1420-36038-20
Variations

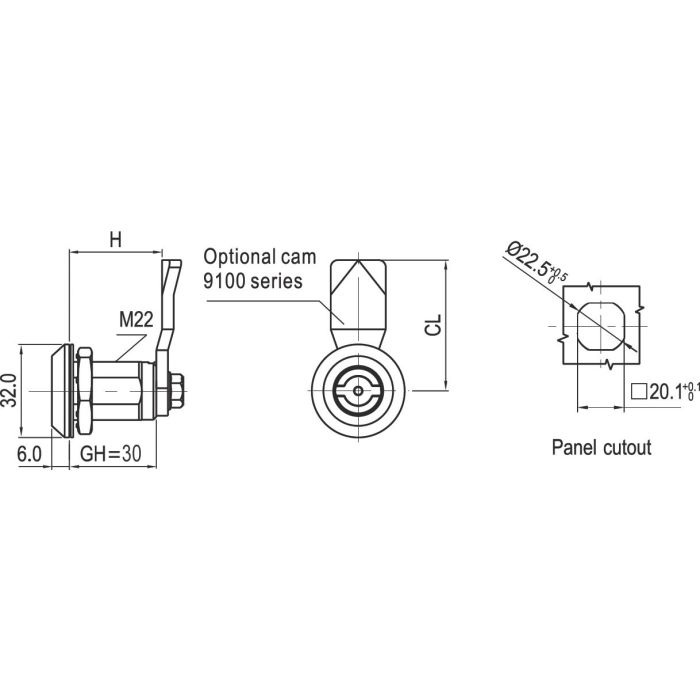

The Metrol 1420-36038-20 is a quarter turn tri lock featuring an 8mm triangle key profile and a 36mm barrel (grip) height, finished in black powder coat. It is purpose-built for panel-mounted cabinet and enclosure security applications requiring a compact, robust quarter turn fastening solution.
Constructed in die cast zinc with a black powder coated finish, this lock accepts an 8mm triangular key and requires a 20.1 x 20.1 mm panel cutout. It accommodates panel thicknesses from 1 mm to 22 mm, offering considerable installation flexibility across a range of cabinet and enclosure panel gauges. The lock carries IP65-grade weather sealing, confirming resistance to dust and low-pressure water jets — suited to industrial and outdoor enclosure environments.
The 1420 model series from Metrol supports multiple cam configurations, allowing the locking cam to be specified to suit different panel depths and latch requirements. A stainless steel 316 material option is available within the broader 1420 range for applications where enhanced corrosion resistance is required.
The 1420-36 Quarter Turn Tri Lock 8mm Triangle with 36mm Grip Height Black Powder Coated is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Triangle 8mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 22mm |
| Barrel Height | 36mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-038-20 | 1401-038-30 | 1401-038-316 | 1401-048-30 | 1401-048-316 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 8mm | 8mm | 8mm | 8mm | 8mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. This lock uses an 8mm triangle key profile, as specified in the product technical data.
A. The lock requires a 20.1 x 20.1 mm panel cutout.
A. The 1420-36038-20 accommodates panel thicknesses from 1 mm to 22 mm.
A. This lock carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets.
A. The barrel height is 36 mm.
A. This variant is made from die cast zinc alloy with a black powder coated finish. A stainless steel 316 option is available within the 1420 range.
A. Yes — a range of cam options is available within the 1420 series to suit different panel depths and latch requirements. Contact us to discuss your specific requirements.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
