Product Number: 1420-36013-30
Variations
The Metrol 1420-36013-30 is a quarter turn lock from the Model 1420 series, featuring a double bit 3mm key operation and a 36mm barrel height with a bright chrome finish. Manufactured in die cast zinc, it is suited to panel-mounting applications where a secure, low-profile cam lock solution is required.

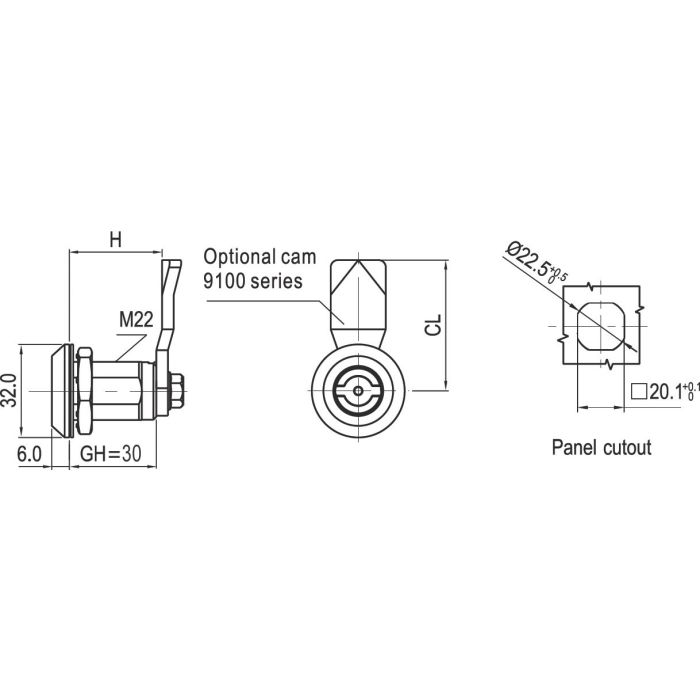

The lock accepts a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses from 1 mm to 22 mm, making it compatible with a broad range of enclosure and cabinet wall sections. The bright chrome finish provides a clean, professional appearance. It carries IP65-grade weather sealing, indicating resistance to dust ingress and low-pressure water jets.
A range of cam configurations are supplied within the 1420 series, allowing configuration to suit differing retention and latching requirements. The lock operates via a double bit 3mm key turn, providing positive quarter-turn engagement.
The 1420-36 Quarter Turn Lock 3mm Double Bit with 36mm Grip Height Bright Chrome is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Double Bit 3mm |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 22mm |
| Barrel Height | 36mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1407 Padlockable Double Bit 3mm Quarter Turn Lock in Black Textured Powder Coated
£12.05
£11.81
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-013-20 | 1401-013-30 | 1401-013-316 | 1407-220132h-20 | 1407-220132h-304 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 3mm | 3mm | 3mm | 3mm | 3mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | ||||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The lock operates with a double bit 3mm key, providing quarter-turn engagement to secure or release the cam.
A. The lock requires a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses from 1 mm to 22 mm.
A. The barrel height is 36 mm and the finish is bright chrome over a die cast zinc alloy body.
A. The lock is rated IP65, indicating it is dust-tight and resistant to low-pressure water jets.
A. Yes — a range of cam options is available within the 1420 series. Contact us to confirm the cam configuration best suited to your application.
