Product Number: 1420-18013-30
Variations
The Metrol 1420-18013-30 is a quarter turn lock cylinder featuring a double bit 3mm keyway and an 18mm barrel height, finished in bright chrome. It is intended for panel-mounted enclosure and cabinet locking applications requiring a secure, tool-operated quarter turn mechanism.
Constructed using zinc alloy die casting with a bright chrome finish, the cylinder accepts a standard double bit 3mm key. The mounting cutout required is 20.1 x 20.1mm, and the lock accommodates panel thicknesses of 1 to 8mm. An IP65 ingress protection rating confirms resistance to dust and water jets, making it suitable for both indoor and outdoor enclosure applications.
The 1420-18013-30 belongs to the Metrol Model 1420 range. A cam option is available within the range, providing flexibility in latch engagement configurations. The source also references a zinc die or stainless steel 316 material option, indicating alternative material variants exist within the broader 1420 product family.
The 1420-18 Quarter Turn Lock 3mm Double Bit Cylinder with 18mm Grip Height Bright Chrome is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.

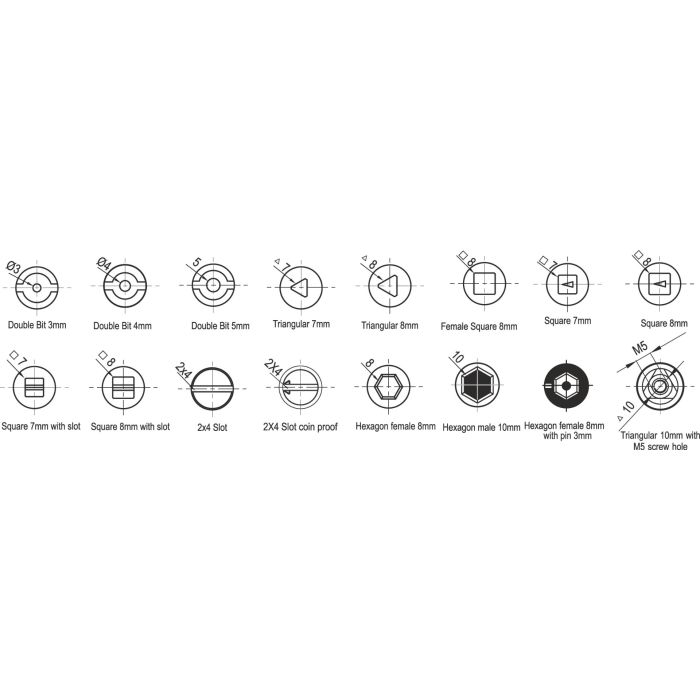

Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Double Bit 3mm |
| Colour/Finish | Bright Chrome |
| Material | Die Cast Zinc Alloy |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1420 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1407 Padlockable Double Bit 3mm Quarter Turn Lock in Black Textured Powder Coated
£12.05
£11.81
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-013-20 | 1401-013-30 | 1401-013-316 | 1407-220132h-20 | 1407-220132h-304 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 3mm | 3mm | 3mm | 3mm | 3mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | ||||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The 1420-18013-30 uses a double bit 3mm key, which operates the quarter turn locking mechanism.
A. A panel cutout of 20.1 x 20.1mm is required. The lock accommodates panel thicknesses of 1 to 8mm.
A. The 1420-18013-30 carries an IP65 rating, confirming protection against dust ingress and water jets.
A. The cylinder is constructed from die cast zinc alloy with a bright chrome finish. The wider 1420 range also includes a stainless steel 316 material option.
A. Yes — a range of cam options is available within the 1420 model series to suit different latch and engagement configurations.
