Product Number: 1407-220482h-304
Variations

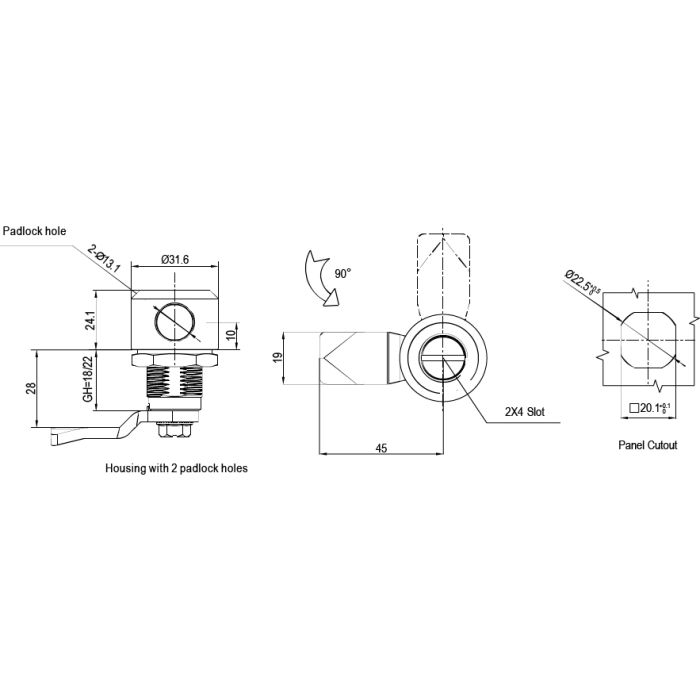

1407-220482h-304 — the Metrol 1407 is a padlockable quarter turn lock featuring an 8mm square drive, manufactured in Stainless Steel 304 with a polished finish. Designed for secure panel-mounted applications, it accepts a panel cutout of 20.1 x 20.1 mm and accommodates panel thicknesses from 1 to 8 mm, with a barrel height of 22 mm.
The 1407 series is built to IP65 ingress protection, making it suitable for environments where resistance to dust and water jets is required. The housing and cylinder are constructed from zinc die with a stainless steel 304 finish, whilst the cam is mild steel zinc plated. A range of cam profiles are available, allowing the lock to be configured to suit varying enclosure depths and retention requirements.
The padlockable design provides an additional layer of security beyond the quarter turn action, making the 1407 appropriate for industrial enclosures, control panels, and equipment cabinets where unauthorised access must be prevented. The square 8mm drive is compatible with standard square key operation.
The 1407 Padlockable Quarter Turn Lock in Stainless Steel is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 8mm |
| Colour/Finish | Polished |
| Material | Stainless Steel 304 |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 22mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1407 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-038-20 | 1401-038-30 | 1401-038-316 | 1401-048-30 | 1401-048-316 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 8mm | 8mm | 8mm | 8mm | 8mm |
| Material | Stainless steel | Stainless steel | |||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The 1407 requires a square panel cutout of 20.1 x 20.1 mm and is compatible with panel thicknesses from 1 to 8 mm.
A. The 1407 carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets from any direction.
A. The housing and cylinder are zinc die construction with a Stainless Steel 304 polished finish. The cam is mild steel zinc plated.
A. Yes — a range of cam options is available for the 1407 series to suit different enclosure configurations. Contact us to confirm the appropriate cam for your application.
A. The 1407 uses an 8mm square quarter turn drive.
A. Yes — the 1407 is padlockable, providing an additional layer of access security beyond the quarter turn action.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
