Product Number: 1407-220472h-304
Variations

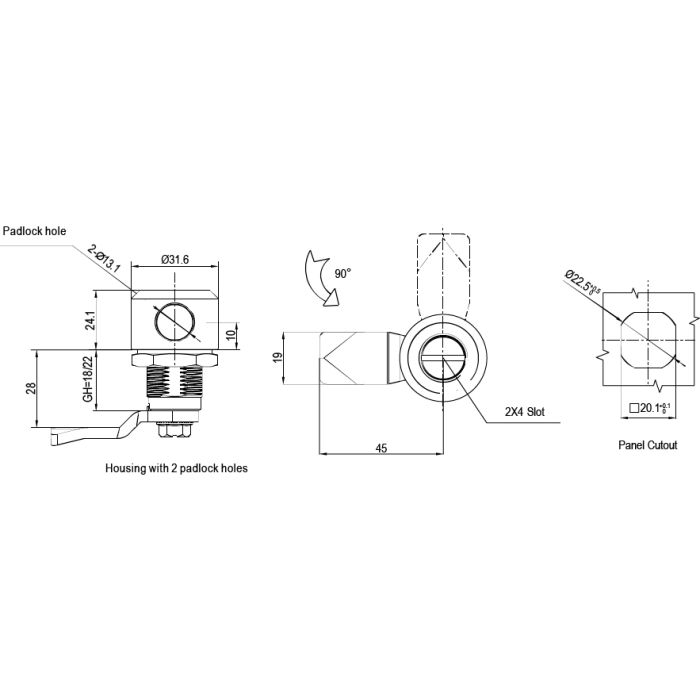

1407-220472h-304 — the Metrol 1407 is a padlockable 7mm square quarter turn lock supplied in Stainless Steel 304 with a polished finish. Designed for panel-mounted applications, it accepts a 20.1 x 20.1 mm panel cutout and accommodates panel thicknesses from 1 to 8 mm, with a barrel height of 22 mm.
The 1407 is rated IP65, confirming protection against dust ingress and low-pressure water jets — a practical requirement for enclosures and cabinets in workshop or industrial environments. The lock cylinder operates on a 7 mm square drive and the housing is manufactured from Stainless Steel 304 with a polished finish, providing corrosion resistance suited to demanding settings.
Cam options are available across the range, allowing the 1407 to be configured for differing panel depths and retention requirements. The mild steel zinc-plated cam is part of the standard assembly, with the housing and cylinder constructed from zinc die material finished in the SS304 variant of this range. The padlockable feature adds a secondary security function beyond the quarter turn operation itself.
This product is supplied as a new listing. The Metrol 1407 is manufactured by Metrol. Country of origin, warranty terms, and in-box contents are not confirmed in current source data.
The 1407 Padlockable Quarter Turn Lock in Stainless Steel is a durable cam lock designed for secure closure of meter boxes, panel boards, CNC housings, machinery parts. Built with a smooth quarter-turn mechanism, it provides reliable locking for cabinets, access panels, enclosures.
Available with triangle key, double-bit insert, key-locking, key-retaining, this cam lock fits standard UK cut-outs and supports both new installations and replacements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 7mm |
| Colour/Finish | Polished |
| Material | Stainless Steel 304 |
| Panel Cutout | 20.1x20.1mm |
| Panel Thickness | 1 - 8mm |
| Barrel Height | 22mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1407 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1401-037-20 | 1401-037-30 | 1401-037-316 | 1401-047-20 | 1401-047-30 |
| Type | Lock | Lock | Lock | Lock | Lock |
| Size | 7mm | 7mm | 7mm | 7mm | 7mm |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Size Range | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm | Up to 10mm |
A. The 1407 requires a panel cutout of 20.1 x 20.1 mm and is compatible with panel thicknesses from 1 mm to 8 mm. The barrel height is 22 mm.
A. The 1407 carries an IP65 rating, indicating full protection against dust and resistance to low-pressure water jets, making it suitable for use on industrial enclosures and workshop cabinets.
A. The housing and cylinder are zinc die construction. This SS304 variant is finished in polished Stainless Steel 304. The cam is mild steel with a zinc plating.
A. Yes. The 1407 incorporates a padlock facility, providing an additional layer of security beyond the standard quarter turn operation.
A. The 1407 operates via a 7 mm square drive. It is part of the quarter turn lock range and functions with a corresponding 7 mm square key or tool.
A. Yes. A range of cam options is available for the 1407 series, allowing configuration to suit different panel depths and locking requirements. Contact us with your specific requirement.
A. The SS304 variant of the 1407 is supplied with a polished finish. Other finish options — including black textured powder coat and bright chrome — are available in alternative variants of the 1407 range.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
