Product Number: 1201-01-0118
Variations

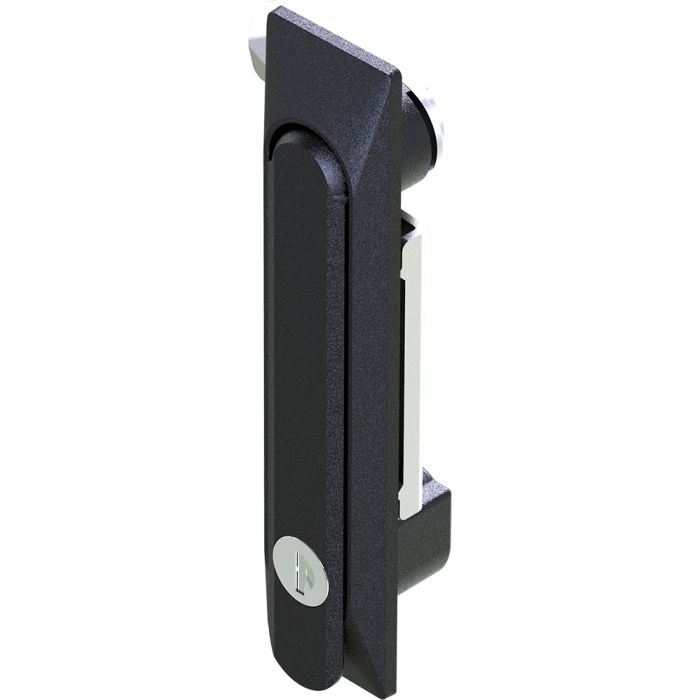

The Metrol 1201-01-0118 is a black polyamide swing handle lock featuring an 18mm barrel height, designed for panel-mounted quarter-turn locking applications. Rated IP65 and supplied with keys, it is suitable for enclosure and cabinet access control across a range of industrial and commercial environments.
The housing is constructed from black polyamide (Nylon 6 GF30) or zinc die, with a zinc die handle finished in black powder coating. The shaft is stainless steel (SS304), and the fixing components are mild steel with zinc plating — a material combination that provides durability and corrosion resistance in line with the IP65 protection rating.

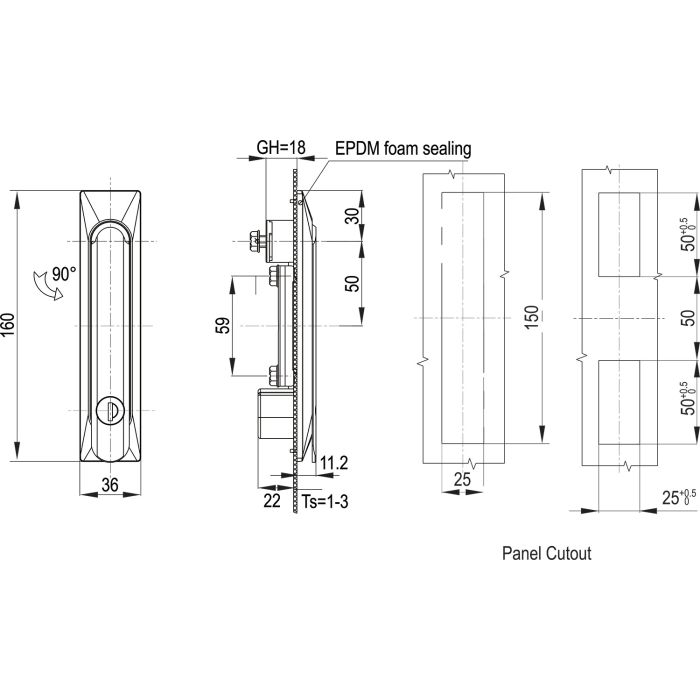

The lock accepts panel cutouts of 25x50mm or 25x150mm and is compatible with panel thicknesses of 1–3mm. It operates with Key Locking type 333 (keys included in supply). The 1201 model range offers a cam option range, allowing specification flexibility depending on the application. The black colour and finish suit standard industrial enclosure aesthetics.
The 1201 Swing Handle is a durable locking solution for industrial cabinets, CNC machinery panels, meter boxes, loft hatches, external enclosures, and heavy-duty gate systems. Designed for secure single- or dual-point locking, it works with common cam locks, triangle locks, t-handle locks, cupboard-door locks, and stainless lock setups, while pairing well with heavy-duty hinges, surface-mount offset hinges, defender-style door hinges, and stainless-steel hatch hardware. Available in multiple key, tool-entry, and padlockable options, it’s ideal for replacing worn latch locks, loft catches, gate-latch mechanisms, and panel locks, making it a reliable choice for anyone needing strong enclosure hardware, machinery parts, or cabinet-locking components in tough UK environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Black |
| Material | Nylon 6 GF30 |
| Panel Cutout | 25x50mm, 25x150mm |
| Panel Thickness | 1 - 3mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1201 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 4mm Double Bit Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 8mm Triangle Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, with shutter
£31.71
£31.09
2% OFF
|
1101 Black PA Swing Handle with Key Locking 333 (KEY333 Profile, Keys supplied)
£19.35
£18.97
2% OFF
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1100-1P01-NCP.L0 | 1507-12 | 1100-1P01-NC | 1100-1P02-NC | 1100-1P03-NC | 1100-1P04-NC | 1100-1P01-C | 1100-1P02-C | 1100-1P03-C | 1100-1P04-C | 1101-1001-NC | 1101-1001-C | 1101-2001-NC | 1101-2001-C | 1101-1P01-NC |
| Colour / Finishing | Black Powder Coated | Black Textured Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black | Black | Black | Black | Black |
| Locking Operation Type | Key Locking | Key Locking | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Key Locking | Key Locking | Key Locking | Key Locking |
| Barrel Height | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||
A. The 1201-01-0118 accepts panel cutouts of 25x50mm or 25x150mm and is compatible with panel thicknesses of 1–3mm.
A. The Metrol 1201-01-0118 carries an IP65 protection rating.
A. It uses Key Locking type 333. Keys are supplied with the unit.
A. The housing is black polyamide (Nylon 6 GF30) or zinc die, the handle is zinc die with black powder coating, the shaft is SS304 stainless steel, and the fixing components are mild steel with zinc plating.
A. The barrel height is 18mm.
A. Yes — a range of cam options is available for the 1201 model series.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
