Product Number: 1100-1P04-C
Variations

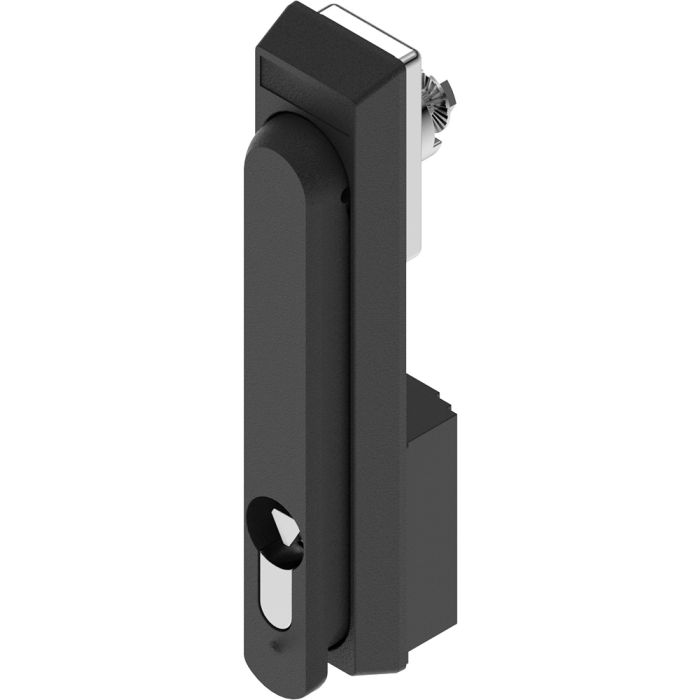

The Metrol 1100-1P04-C is a black powder coated swing handle quarter-turn lock designed for panel and enclosure applications. Fitted with an 8mm triangle insert and equipped with a shutter, this unit suits installations requiring a secure, tamper-resistant fastening solution.
The body is constructed from die-cast zinc alloy with a black powder coated finish, and the shaft is manufactured from SS304 stainless steel. The handle is padlockable, providing an additional level of access security. An IP65 ingress protection rating confirms suitability for environments where dust and water resistance are required.

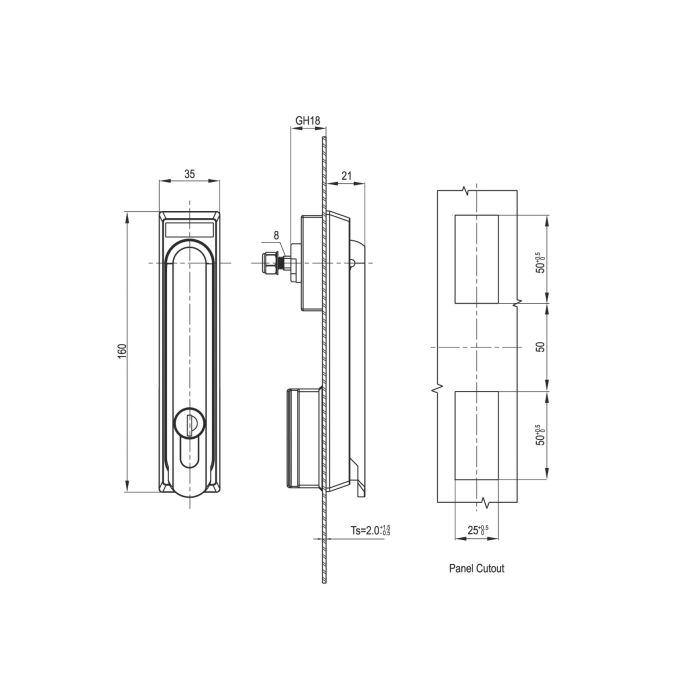

Key dimensional specifications: panel cutout 25 x 50 mm, panel thickness range 1.5–3.5 mm, and barrel height 18 mm. Lock type is triangle 8mm. A range of cam configurations are supplied to suit varying panel depths and latch requirements.
The 1100 Swing Handle is a durable locking solution for industrial cabinets, CNC machinery panels, meter boxes, loft hatches, external enclosures, and heavy-duty gate systems. Designed for secure single- or dual-point locking, it works with common cam locks, triangle locks, t-handle locks, cupboard-door locks, and stainless lock setups, while pairing well with heavy-duty hinges, surface-mount offset hinges, defender-style door hinges, and stainless-steel hatch hardware. Available in multiple key, tool-entry, and padlockable options, it’s ideal for replacing worn latch locks, loft catches, gate-latch mechanisms, and panel locks, making it a reliable choice for anyone needing strong enclosure hardware, machinery parts, or cabinet-locking components in tough UK environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Triangle 8mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, SS304 Shaft |
| Panel Cutout | 25x50mm |
| Panel Thickness | 1.5 - 3.5mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1100 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1100 Black Powder Coated Swing Handle with 8mm Triangle Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 4mm Double Bit Insert, without shutter
£31.04
£30.43
2% OFF
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1100-1P04-NC | 1100-1P03-C | 1100-1P03-NC | 1100-1P02-C | 1100-1P02-NC |
| Type | Lock/Latch | Lock/Latch | Lock/Latch | Lock/Latch | Lock/Latch |
| Drive | 8mm Triangle | 7mm Square | 7mm Square | ||
A. The body is die-cast zinc alloy with a black powder coated finish. The shaft is manufactured from SS304 stainless steel.
A. The panel cutout required is 25 x 50 mm. The handle accommodates panel thicknesses of 1.5 mm to 3.5 mm.
A. This handle carries an IP65 rating, providing protection against dust ingress and low-pressure water jets.
A. The 1100-1P04-C is fitted with an 8mm triangle insert.
A. Yes — the handle is padlockable, allowing an additional padlock to be used for enhanced access security.
A. Yes — a range of cam options is available to suit different panel depths and latch requirements. Contact us to confirm the correct cam for your application.
