Product Number: 1201-01-0120
Variations

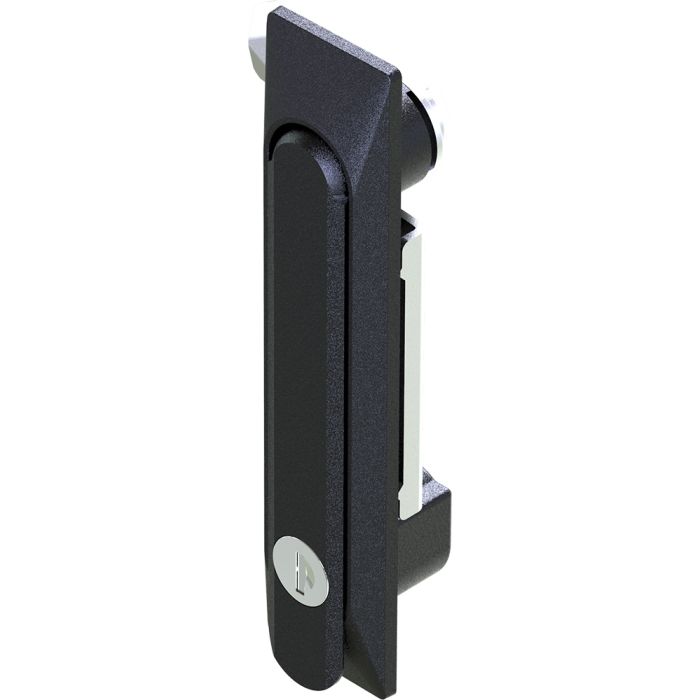

The Metrol 1201-01-0120 is a black polyamide swing handle locking mechanism with a 20mm barrel height, designed for panel-mounted quarter-turn locking applications. Constructed from Nylon 6 GF30 housing with a zinc die handle finished in black powder coat, a stainless steel 304 shaft, and mild steel zinc-plated fixing components, it delivers a robust combination of corrosion resistance and structural integrity suited to industrial enclosure and cabinet applications.
The 1201 series accommodates panel cutouts of 25x50mm or 25x150mm and is compatible with panels between 1mm and 3mm in thickness. The hinge carries IP65-grade weather sealing, confirming its suitability for environments where dust exclusion and water jet resistance are required. Key locking is provided via the 333 key type, with keys supplied as standard. A cam option range is available within the series, allowing selection to suit specific latching requirements.
The black powder-coated finish and polyamide or zinc die housing construction make the 1201-01-0120 appropriate for use on control cabinets, electrical enclosures, and industrial panels where a secure, weather-resistant quarter-turn handle lock is specified.
The 1201 Swing Handle is a durable locking solution for industrial cabinets, CNC machinery panels, meter boxes, loft hatches, external enclosures, and heavy-duty gate systems. Designed for secure single- or dual-point locking, it works with common cam locks, triangle locks, t-handle locks, cupboard-door locks, and stainless lock setups, while pairing well with heavy-duty hinges, surface-mount offset hinges, defender-style door hinges, and stainless-steel hatch hardware. Available in multiple key, tool-entry, and padlockable options, it’s ideal for replacing worn latch locks, loft catches, gate-latch mechanisms, and panel locks, making it a reliable choice for anyone needing strong enclosure hardware, machinery parts, or cabinet-locking components in tough UK environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Black |
| Material | Nylon 6 GF30 |
| Panel Cutout | 25x50mm, 25x150mm |
| Panel Thickness | 1 - 3mm |
| Barrel Height | 20mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1201 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1100 Black Powder Coated Swing Handle with 8mm Triangle Insert, without shutter
£31.04
£30.43
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1201-02-0220 | 1100-1P04-C | 1100-1P04-NC | 1100-1P03-C | 1100-1P03-NC |
| Type | Lock/Latch | Lock/Latch | Lock/Latch | Lock/Latch | Lock/Latch |
| Drive | 8mm Triangle | 8mm Triangle | 7mm Square | 7mm Square | |
A. The housing is black polyamide or zinc die (Nylon 6 GF30), the handle is zinc die with a black powder-coat finish, the shaft is stainless steel 304, and the fixing components are mild steel with a zinc-plated finish.
A. The unit carries an IP65 rating, providing full protection against dust ingress and resistance to water jets — making it suitable for outdoor or wash-down industrial environments.
A. The 1201-01-0120 is designed for panel cutouts of 25x50mm or 25x150mm, and accommodates panel thicknesses between 1mm and 3mm.
A. The unit uses a Key Locking 333 lock type. Keys are supplied as standard with the handle.
A. The barrel height is 20mm, as designated in the product model reference.
A. Yes — a range of cam options is available within the 1201 series to suit different latching and panel configurations. Contact us to confirm the appropriate cam for your application.
