Product Number: 1100-1P03-NC
Variations

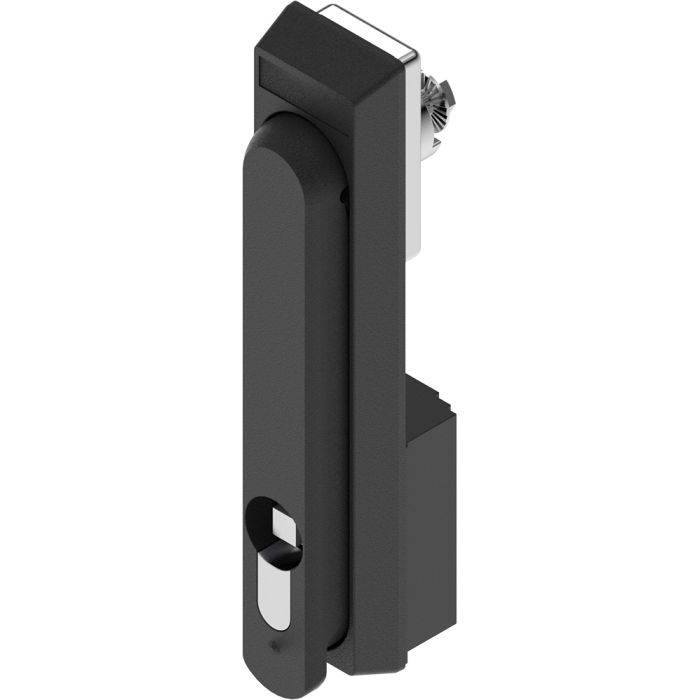

The Metrol 1100-1P03-NC is a black powder coated swing handle quarter-turn lock fitting, designed for panel-mounted enclosure security applications. Supplied without shutter, it incorporates a 7mm square insert and is suitable for use across a range of industrial enclosures and cabinet panels.
The body is constructed from zinc die-cast alloy with a black powder coated finish, and the shaft is manufactured from SS304 stainless steel. The handle is padlockable, providing an additional layer of access security where required. The hinge carries IP65-grade weather sealing, confirming resistance to dust ingress and low-pressure water jets.

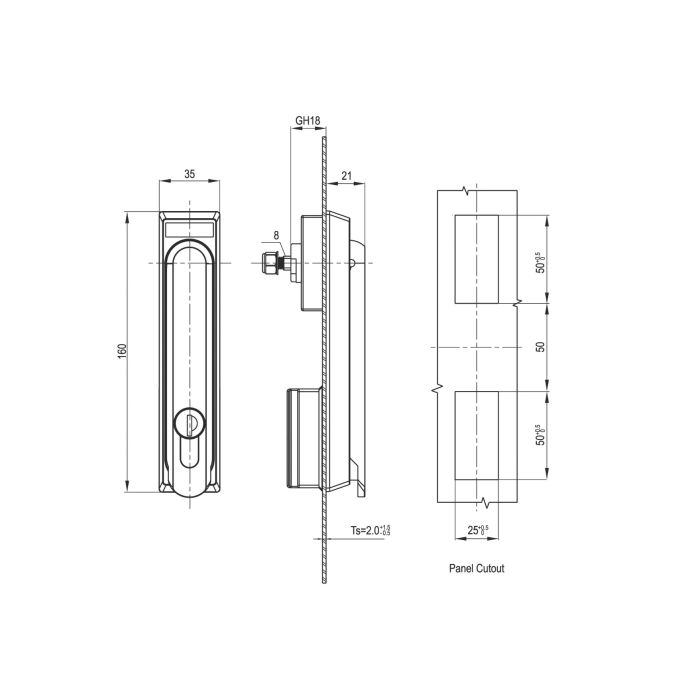

Key installation parameters: the panel cutout requirement is 25x50mm, compatible panel thickness is 1.5mm to 3.5mm, and the barrel height is 18mm. Lock type is square 7mm. A range of cam profiles are available within the 1100 model series, allowing configuration to suit specific latching requirements.
The 1100 Swing Handle is a durable locking solution for industrial cabinets, CNC machinery panels, meter boxes, loft hatches, external enclosures, and heavy-duty gate systems. Designed for secure single- or dual-point locking, it works with common cam locks, triangle locks, t-handle locks, cupboard-door locks, and stainless lock setups, while pairing well with heavy-duty hinges, surface-mount offset hinges, defender-style door hinges, and stainless-steel hatch hardware. Available in multiple key, tool-entry, and padlockable options, it’s ideal for replacing worn latch locks, loft catches, gate-latch mechanisms, and panel locks, making it a reliable choice for anyone needing strong enclosure hardware, machinery parts, or cabinet-locking components in tough UK environments.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Square 7mm |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, SS304 Shaft |
| Panel Cutout | 25x50mm |
| Panel Thickness | 1.5 - 3.5mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1100 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 4mm Double Bit Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 8mm Triangle Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, with shutter
£31.71
£31.09
2% OFF
|
1101 Black PA Swing Handle with Key Locking 333 (KEY333 Profile, Keys supplied)
£19.35
£18.97
2% OFF
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1100-1P01-NCP.L0 | 1507-12 | 1100-1P01-NC | 1100-1P02-NC | 1100-1P04-NC | 1100-1P01-C | 1100-1P02-C | 1100-1P03-C | 1100-1P04-C | 1101-1001-NC | 1101-1001-C | 1101-2001-NC | 1101-2001-C | 1101-1P01-NC | 1101-1P01-C |
A. The 1100-1P03-NC requires a panel cutout of 25x50mm and is compatible with panel thicknesses between 1.5mm and 3.5mm. The barrel height is 18mm.
A. The body is die-cast zinc alloy with a black powder coated finish. The shaft is manufactured from SS304 stainless steel.
A. This swing handle carries an IP65 rating, indicating full protection against dust ingress and resistance to low-pressure water jets.
A. Yes — the handle is padlockable, providing an additional access security option where required.
A. Yes — a range of cam options is available within the 1100 model series. Contact us to discuss the configuration that best suits your application.
