Product Number: 1507-12

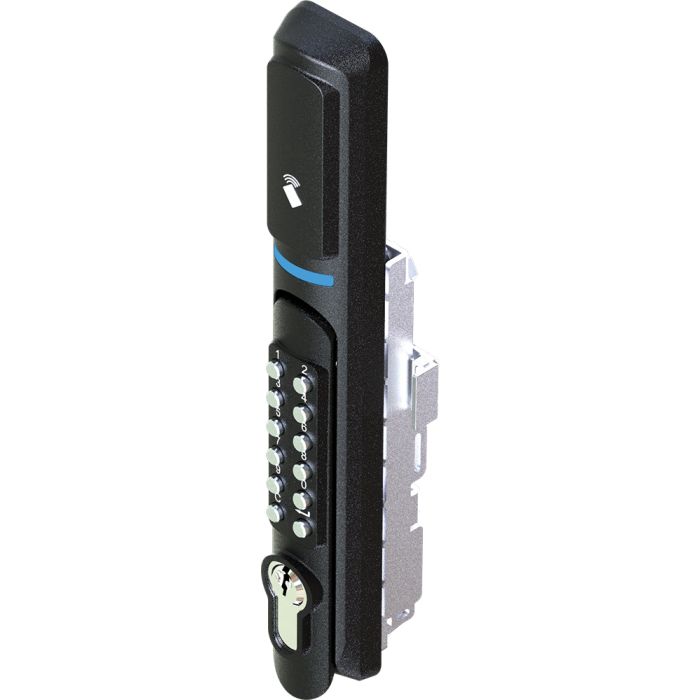

The Metrol 1507-12 is an electronically locking swing handle featuring IoT connectivity, finished in black textured powder coat. Designed for secure panel access applications, it combines key locking with remote control operation and supports RS485, Wiegand, and SNMP communication methods. The body is constructed using zinc alloy die casting with Nylon 6 GF30 components and carries a UL94-V0 fire rating and IP40 ingress protection rating. Panel cutout dimensions are 25 x 150 mm, accommodating panel thicknesses of 1.5 mm to 2.5 mm, with a barrel height of 18 mm. Local storage supports up to 200 IC cards, 200 passwords, and 99 fingerprints, making it suited to access-controlled enclosures and cabinets. An optional temperature and humidity sensor is available, and a choice of cams is offered. The lock type is key locking with a custom key supplied.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking (custom key, keys supplied) |
| Colour/Finish | Black Textured Powder Coated |
| Material | Die Cast Zinc Alloy, Nylon 6 GF30 |
| Panel Cutout | 25x150mm |
| Panel Thickness | 1.5 - 2.5mm |
| Barrel Height | 18mm |
| IP Rating | IP40 |
| Cam Option | Range available |
| Model | 1507 |
| Communication Method | RS485, Wiegand, SNMP |
| Fire Rating | UL94-V0 |
| Optional Sensors | Temperature & Humidity |
| Local Storage | 200 IC Cards, 200 Passwords, 99 Fingerprints |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 4mm Double Bit Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with 8mm Triangle Insert, without shutter
£31.04
£30.43
2% OFF
|
1100 Black Powder Coated Swing Handle with Key Locking 333 Insert, with shutter
£31.71
£31.09
2% OFF
|
1101 Black PA Swing Handle with Key Locking 333 (KEY333 Profile, Keys supplied)
£19.35
£18.97
2% OFF
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1100-1P01-NCP.L0 | 1100-1P01-NC | 1100-1P02-NC | 1100-1P03-NC | 1100-1P04-NC | 1100-1P01-C | 1100-1P02-C | 1100-1P03-C | 1100-1P04-C | 1101-1001-NC | 1101-1001-C | 1101-2001-NC | 1101-2001-C | 1101-1P01-NC | 1101-1P01-C |
| Colour / Finishing | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black | Black | Black | Black | Black | Black |
| Locking Operation Type | Key Locking | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Key Locking | Key Locking | Key Locking | Key Locking | Key Locking |
| Barrel Height | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||
A. The 1507-12 supports RS485, Wiegand, and SNMP communication methods.
A. The required panel cutout is 25 x 150 mm, and the lock accommodates panel thicknesses from 1.5 mm to 2.5 mm.
A. The 1507-12 carries an IP40 ingress protection rating and a UL94-V0 fire rating.
A. The lock stores up to 200 IC cards, 200 passwords, and 99 fingerprints locally.
A. The body uses die cast zinc alloy and Nylon 6 GF30 components.
A. Yes — an optional temperature and humidity sensor is available for the 1507-12.
A. The 1507-12 operates via mechanical key (with custom key supplied) and remote control.
