Captive Transit Mounts

Captive Transit Mount

Square Flanged Captive

Height Adjuster

Clear

Square Flanged Captive

Filters

View as

Show Only My Country Products

In this feature, you can view only your country products.

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 900Kg - SFCM160-40

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 900Kg - SFCM160-40

Top Outer Dimension (A)	162mm
Overall Height (B)	59mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	140mm

£200.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1400Kg - SFCM160-60

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1400Kg - SFCM160-60

Top Outer Dimension (A)	162mm
Overall Height (B)	59mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	140mm

£200.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1250Kg - SFCM180-45

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1250Kg - SFCM180-45

Top Outer Dimension (A)	180mm
Overall Height (B)	66mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	149-163mm

£326.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 2000Kg - SFCM180-60

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 2000Kg - SFCM180-60

Top Outer Dimension (A)	180mm
Overall Height (B)	66mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	149-163mm

£326.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 900Kg - SFCM180HD-40

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 900Kg - SFCM180HD-40

Top Outer Dimension (A)	183mm
Overall Height (B)	86mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	146mm

£326.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1700Kg - SFCM180HD-60

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M20, Max Load 1700Kg - SFCM180HD-60

Top Outer Dimension (A)	183mm
Overall Height (B)	86mm
Thread Size (P)	M20
Fixing Hole Dimension (F)	14.5mm
Center Distance (CF)	146mm

£326.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 2500Kg - SFCM220-45

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 2500Kg - SFCM220-45

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 4000Kg - SFCM220-60

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 4000Kg - SFCM220-60

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 5000Kg - SFCM220-70

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 5000Kg - SFCM220-70

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 1500Kg - SFCM220HD-45

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 1500Kg - SFCM220HD-45

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

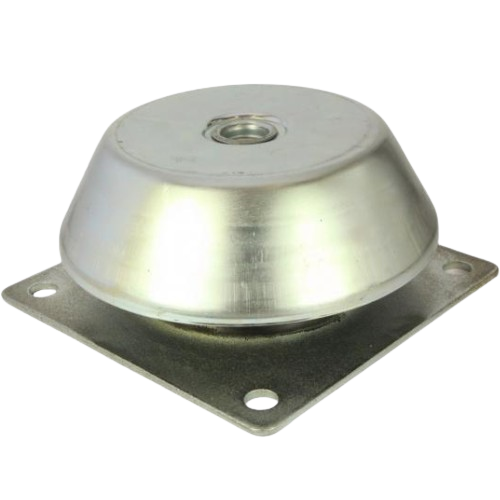

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 3000Kg - SFCM220HD-60

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 3000Kg - SFCM220HD-60

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 4000Kg - SFCM220HD-70

Compare

Square Flanged Captive Mount - Anti-Vibration, Thread Size M24, Max Load 4000Kg - SFCM220HD-70

Top Outer Dimension (A)	220mm
Overall Height (B)	105mm
Thread Size (P)	M24
Fixing Hole Dimension (F)	17.5mm
Center Distance (CF)	180mm

£452.80

Showing 1 to 12 of 12 entries
