Product Number: PH10.V5-06

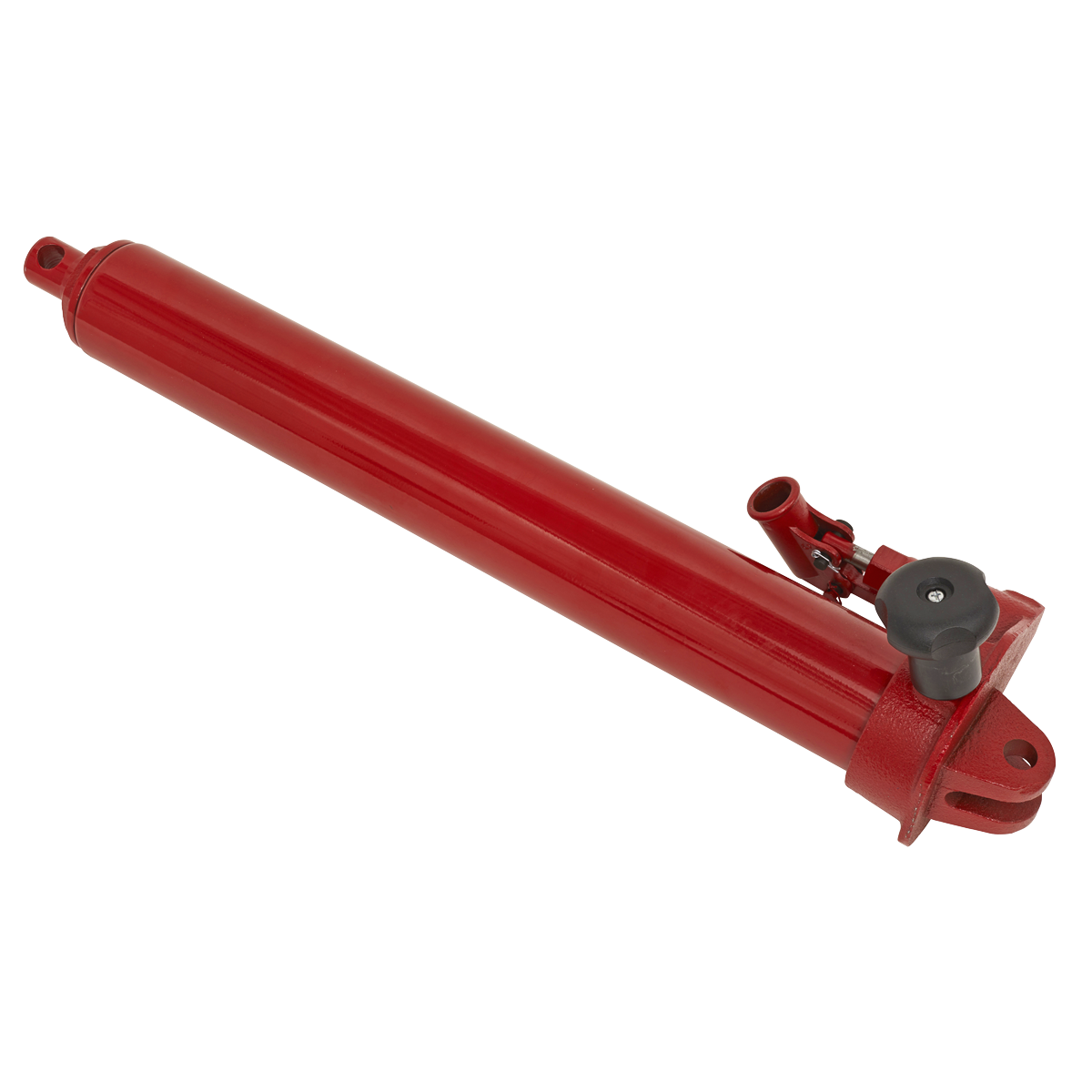

When your PH10.V5 engine crane develops a hydraulic fault or the ram becomes damaged, sourcing the correct replacement is essential to restoring safe, full-capacity lifting. The Sealey PH10.V5-06 is the dedicated replacement hydraulic ram for the PH10.V5 engine crane, engineered to the exact dimensions and specifications of the original component. With a ram capacity of 2720kg and a ram travel of 500mm, it delivers the same lifting performance as the factory-fitted unit. The ram measures 33.88mm in diameter, features a ram pin hole diameter of 16.6mm and a clevis pin hole diameter of 17.3mm, and uses a double clevis base mount for secure installation. The minimum mounting point distance is 630mm, with an overall minimum length of 665mm. The single-speed pump type ensures straightforward, controlled operation. Designed specifically for the PH10.V5, this ram restores your crane to full working order without the cost of replacing the entire unit.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PH10.V5-06 |
|---|---|
| Brand | Sealey |
| Nett Weight | 13.3kg |
| Ram Capacity | 2720kg |
| Ram Diameter | 33.88mm |
| Ram Travel | 500mm |
| Pump Type | Single Speed |
| Ram Pin Hole Diameter | 16.6mm |
| Clevis Pin Hole Diameter | 17.3mm |
| Mounting Point Distance (Min) | 630mm |
| Overall Length (Min) | 665mm |
| Base Mount Type | Double Clevis |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SG1000 Portable Gantry Crane Adjustable 1 Tonne
£766.86
£751.82
2% OFF
Free delivery in UK Mainland
|
Sealey SG1000KIT Portable Gantry Crane 1 Tonne Combo with Trolley & Chain Block
£904.84
£887.10
2% OFF
Free delivery in UK Mainland
|
Sealey CTI120 Compact Rechargeable Tyre Inflator & Power Bank
£71.11
£69.72
2% OFF
Free delivery in UK Mainland
|
Draper 94078 Expert Turbo Smoke Diagnostic Machine Pipe Vacuum Leak Detector
£397.52
£389.73
2% OFF
Free delivery in UK Mainland
|
|||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03679 | 03683 | 03692 | 03845 | 03849 | 09807 | CB1000 | SG1000 | SG1000KIT | CTI120 | 30630 | 94078 | PK2000 | PK3000 | PK1000 |
A. The PH10.V5-06 is a replacement hydraulic ram specifically designed to fit the Sealey PH10.V5 engine crane.
A. The ram has a capacity of 2720kg.
A. The ram travel is 500mm.
A. The ram diameter is 33.88mm, the ram pin hole diameter is 16.6mm, the clevis pin hole diameter is 17.3mm, the minimum mounting point distance is 630mm, and the overall minimum length is 665mm.
A. The PH10.V5-06 uses a double clevis base mount.
A. It uses a single-speed pump.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. Yes. Parts for Machines supplies genuine Sealey products.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. Standard UK mainland delivery is 3-5 working days.
