Product Number: 53331000
Variations

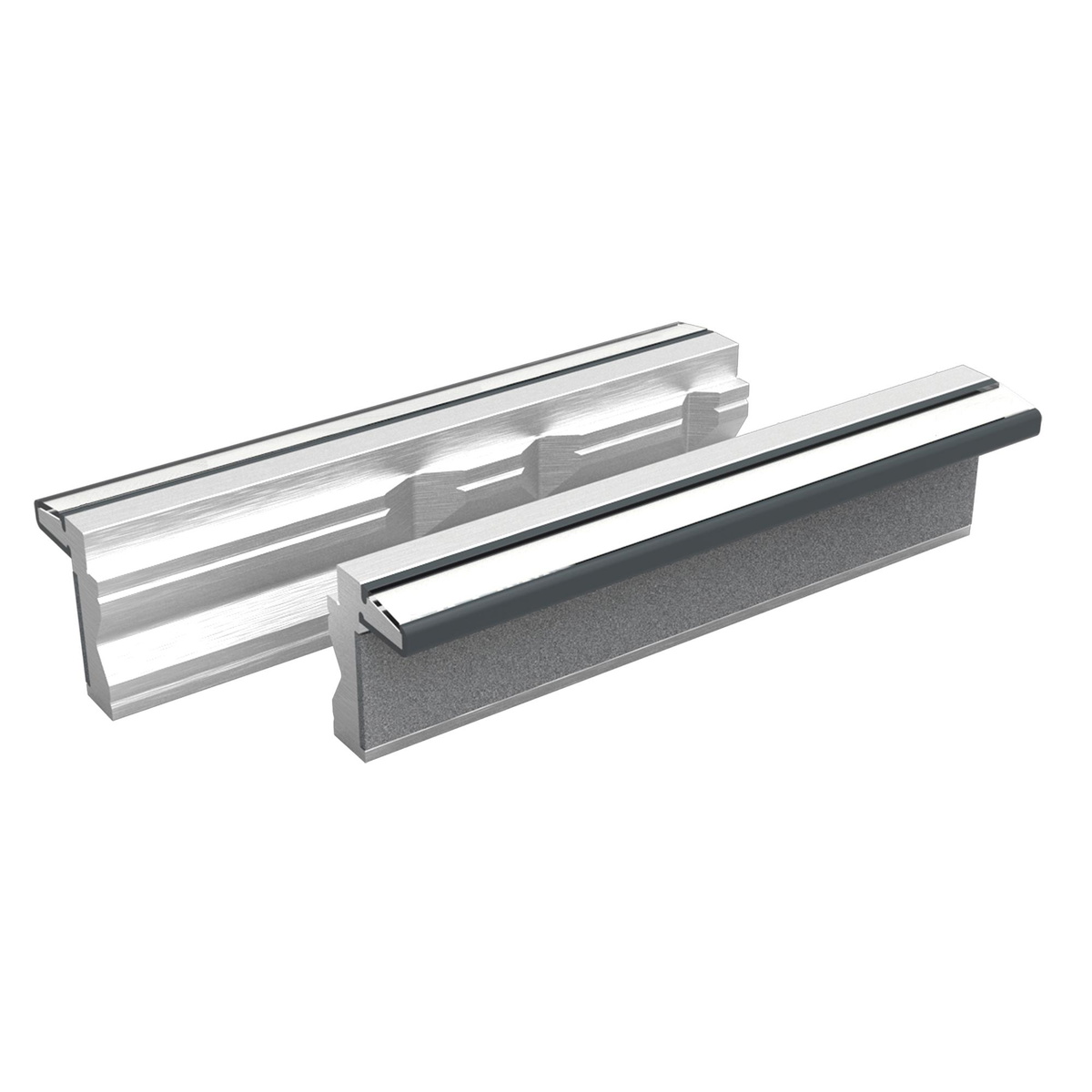

Holding round workpieces in a flat-jawed vice is a challenge — the round profile makes contact with the flat jaws on a single line only, which provides minimal grip and risks rotating the workpiece under any applied force. Prism (or vee) jaws solve this by replacing the flat profile with two angled faces that engage the round workpiece on four contact lines instead of one. The Sykes Pickavant 53331000 Prism/Vee Pipe Jaws are 100mm-wide insert jaws specifically designed for holding round and tubular workpieces in the Sykes Pickavant 100mm vice.
The vee profile engages the workpiece on both sides of each jaw, distributing the gripping force over a larger contact area and providing significantly more secure holding than flat jaws can offer on round work. This is particularly useful when holding pipe, tube, round bar, or cylindrical components for cutting, drilling, threading, or fitting work.
The 100mm width sizes the jaws to the smaller Sykes Pickavant 100mm vice format, suitable for the lighter-duty workshop bench work where this vice size is used. Equivalent 150mm and 180mm prism/vee jaws (53331500 and 53331800) are available for the larger vice formats.
Within the wider Sykes Pickavant vice jaw insert range, prism/vee jaws complement the flat-faced rubber, fibre, and polyurethane inserts that cover non-round workpieces. Workshops handling a mix of round and flat work benefit from holding both types.
Sykes Pickavant has been supplying professional vice and bench equipment for decades, and the prism/vee pipe jaw range reflects the brand's modular approach to vice configuration for specific workpiece geometries.
Additional Information
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 110 x 50 x 35 mm |
|---|---|
| Product Weight | 0.172 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 53331800 PRISM/VEE PIPE JAWS 180MM
£58.32
£57.18
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53341500 POLY-U JAWS CROSS SERRATED 150MM
£55.32
£54.24
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53351500 POLYURETHANE JAWS WITH GROOVES 180MM
£55.27
£54.19
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53331500 PRISM/VEE PIPE JAWS 150MM
£55.31
£54.23
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 53331800 | 53321500 | 53341500 | 53351500 | 53331500 | 53341000 | 53351000 |
A. They are 100mm magnetic pipe jaws for 4\" vices, designed for clamping flat and round workpieces horizontally or vertically.
A. They feature flat faces and vee-grooves, which support both flat objects and round pipes in various orientations.
A. They are compatible with any 4\" vice, including the Sykes-Pickavant Unbreakable Vice, via powerful magnetic backing.
A. They offer shaped surfaces that distribute load and reduce surface damage compared with gripping directly on steel vice jaws.
A. Using a single prism jaw prevents damaging both jaws while the vee groove aligns the threaded workpiece correctly.
A. Pipe cutting, filing, drilling and thread operations on round stock are significantly easier and safer using these jaws.
A. Yes, the vee-grooves are designed to clamp round objects vertically as well as horizontally.
A. Simply place them on the jaw faces and let the magnetic strip hold them in position during clamping.
A. Keep the clamping faces free from swarf and wipe magnets clean to ensure stable attachment.
A. They can be stored magnetically on a metal panel or in a lined drawer to protect their faces."
