Product Number: 02152

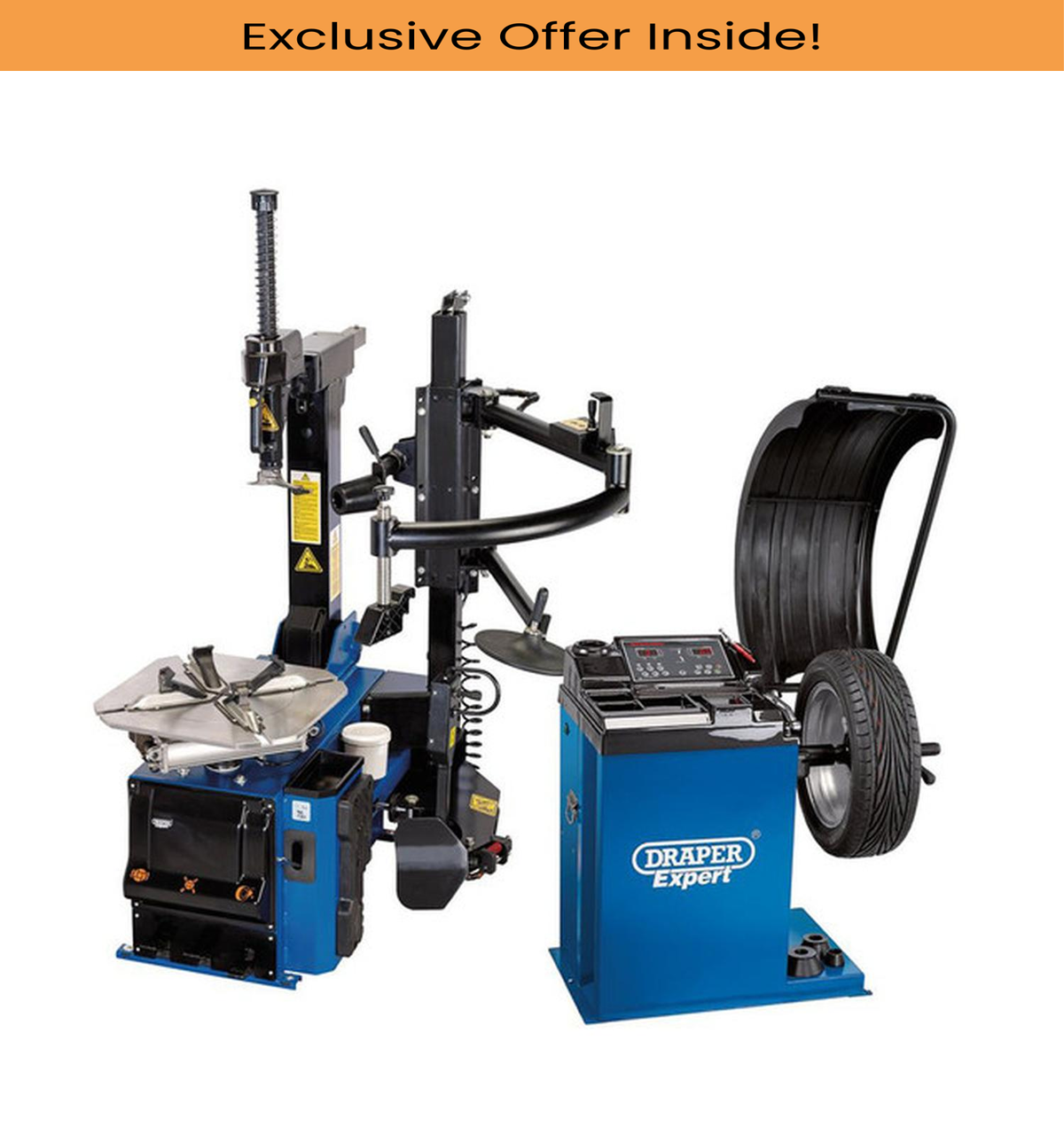

Workshop tyre servicing demands equipment that handles the full range of modern wheel and tyre combinations reliably. The Draper 2152 addresses this with a comprehensive kit pairing a semi-automatic tyre changer fitted with an assist arm and a semi-automatic wheel balancer, allowing professional workshops to remove, replace, and balance tyres on passenger and LGV wheel and tyre combinations from a single matched setup. The tyre changer is built around a fully motorised turntable with pneumatically operated clamping jaws, a powerful pneumatic bead breaker generating 2,100 kg of force, and a tilt column to facilitate work on low profile and run-flat tyres. The assist arm — also known as a third arm — provides additional support during these more demanding operations. A self-centering four-jaw chuck controlled by two clamping cylinders ensures wheel rims are correctly clamped throughout the process. The mounting head is fitted with plastic protectors to protect alloy rims, and the bead breaker pad carries a large anti-skid rubber surface to preserve both tyres and rims during breaking. The changer accommodates wheel widths from 3" to 18", internal rim locking from 13" to 26", external rim locking from 12" to 25", and a maximum tyre outside diameter of 45". The wheel balancer operates at 200 RPM with a balance accuracy of 1 gram and a cycle time of 8–10 seconds. It accepts wheels and tyres up to 65 kg in weight, up to 43" in diameter, and up to 35" in width, with rim diameter capacity from 10" to 39".
A comprehensive wheel servicing kit, consisting of a semi-automatic tyre changer with assist arm and wheel balancer. The semi-automatic tyre changer, capable of removing and replacing tyres on wheels up to 26" is fitted with an assist arm (also known as a third arm) to aid the user when changing low profile and run-flat tyres. The fully motorised turntable, pneumatically operated clamping jaws, powerful pneumatic bead breaker and tilt column enables the changing of low profile and run flat tyres quickly and easily. The self-centering four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The semi automatic wheel balancer is supplied with a calibration weight and able to balance wheels up to 65kg, 24" in diameter and with an accuracy of 1 gram. Suitable for passenger and LGV wheel/tyre combinations. Both machines are operated with standard 13 amp plugs and supplied with the following accessories: 4 x centering cones, centering shaft, wheel weight pliers, hub nut and rim width calipers, tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
|
Motor::1.1KW
|
|
|
Bead breaker force::2100kg
|
|
|
Pneumatic supply::80 -115psi (6 - 8bar)
|
|
|
Suitable for use on wheel width::3" to 18"
|
|
|
For rim dia. (internal locking)::3" to 26"
|
|
|
For rim dia. (external locking): :12" to 25"
|
|
|
Max tyre outside diameter::45"
|
|
|
Dimensions::(H) 1900mm x (D) 1950mm x (W) 1650mm
|
|
|
Weight::350kg
|
|
|
Balance speed::200RPM
|
|
|
Power supply::230V
|
|
|
Balance accuracy: :1gram
|
|
|
Cycle Time: :8-10 seconds
|
|
|
Max wheel and tyre diameter capacity::43"
|
|
|
Max wheel and tyre width capacity::35"
|
|
|
Min/max rim diameter capacity: :10" - 39"
|
|
|
Min/max rim width capacity::1.2" - 35"
|
|
|
Max tyre/rim weight capacity::65kg
|
|
|
Dimensions (guard open)::1321mm x 1016mm x 1651mm
|
|
|
Dimensions (guard closed)::1321mm x 965mm x 1276mm
|
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 16235 Tyre Changer and Wheel Balancer Kit
£2,867.27
£2,811.05
2% OFF
Free delivery in UK Mainland
|
Sealey TC960 Manual Tyre Changer with Bead Breaker
£108.13
£106.01
2% OFF
Free delivery in UK Mainland
|
Sealey TC966COMBO1 Hydraulic Bead Breaker Combo Kit
£669.39
£656.26
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 16235 | 91860 | WB10 | TC960 | TC965 | TC966COMBO1 |
A. The tyre changer accommodates wheel widths from 3" to 18", internal rim locking from 13" to 26", external rim locking from 12" to 25", and a maximum tyre outside diameter of 45".
A. The assist arm — also referred to as a third arm — is fitted to the tyre changer to provide additional support when removing and replacing low profile and run-flat tyres, which require more controlled handling during the mounting process.
A. The mounting head is fitted with plastic protectors to shield alloy rims, and the bead breaker carries a large anti-skid rubber pad to preserve both tyres and rims during the bead breaking operation.
A. The wheel balancer operates at 200 RPM with a balance accuracy of 1 gram and a cycle time of 8–10 seconds. It accepts wheels and tyres up to 65 kg, up to 43" in diameter, with rim diameter capacity from 10" to 39" and rim width from 1.2" to 35".
A. The kit is stated as suitable for passenger and LGV wheel and tyre combinations.
A. The kit is supplied with four centering cones, a centering shaft, wheel weight pliers, hub nut and rim width calipers, a tyre lever, a filter regulator lubricator, alloy rim protectors, head tongue protectors, an inflation gun, and an air hose.
A. Both machines operate from a 230 V supply via standard 13-amp plugs. The tyre changer additionally requires a pneumatic supply of 80–115 psi (6–8 bar).
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
