Tension Cranes Demountable cranes available in 0.53 ton capacity. Equipped with single or double acting pump, chrome-plated piston, overload safety valve, and dead man controls. Models 0.51 ton have nylon wheels; 1.52 ton with Vulkollan wheels. The 3-ton model is designed for unloading power units from trucks. This model offers a 1.0-tonne capacity and weighs 77€¯kg. Key Features 1.0-tonne rated lifting capacity Overall weight: 77 kg Equipped with nylon wheels for easy maneuverability Chrome-plated piston and safety valve included

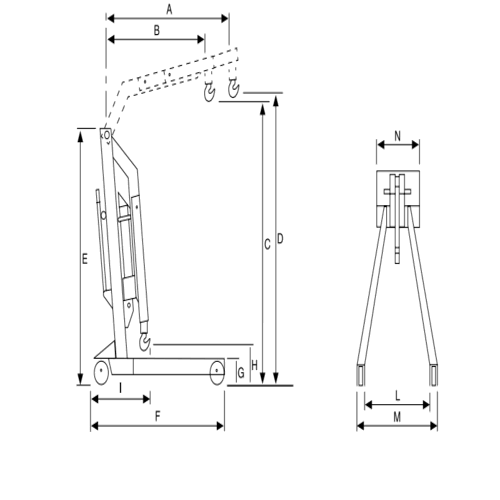

| Capacity [Ton] | 1.0 |
|---|---|
| Boom length (Max reach) A[mm] | 1620 |
| Boom length (Min reach) B[mm] | 1260 |
| Maximum Hook Height C[mm] | 1350 |
| Minimum Hook Height D[mm] | 1040 |
| Overall Height E[mm] | 143 |
| Overall Length F[mm] | 410 |
| Front Wheel Diameter G[mm] | 650 |
| Ground Clearance H[mm] | 2160 |
| Folded Length I[mm] | 2360 |
| Inside Leg Width L[mm] | 750 |
| Outside Leg Width M[mm] | 885 |
| Column Width N[mm] | 665 |
| Weight [Kg] | 77 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MGS-30D | MGS-10D | MGP-10D | MGP-10 | MGP-5 | MGP-5D |
