Product Number: YAJ15-30LE

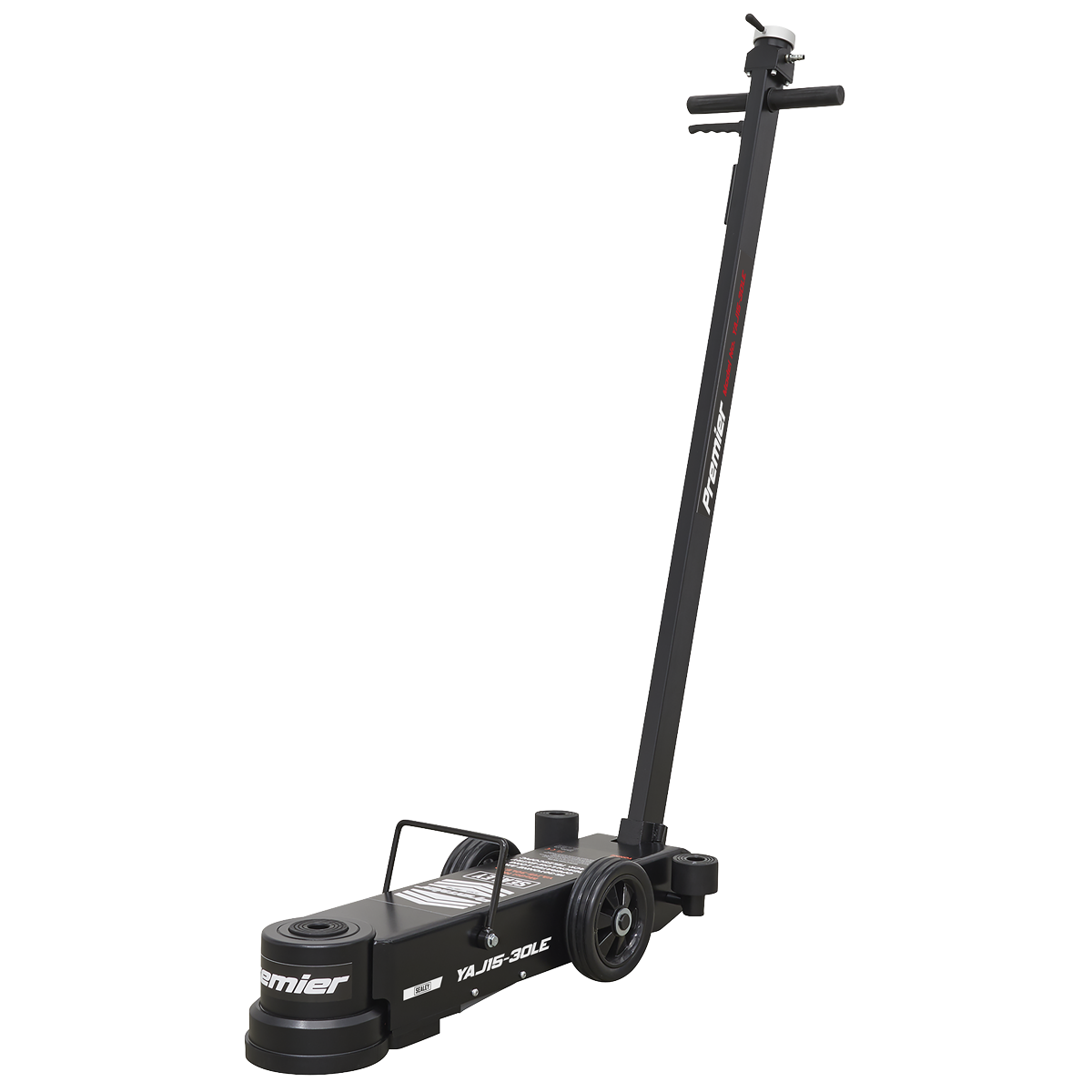

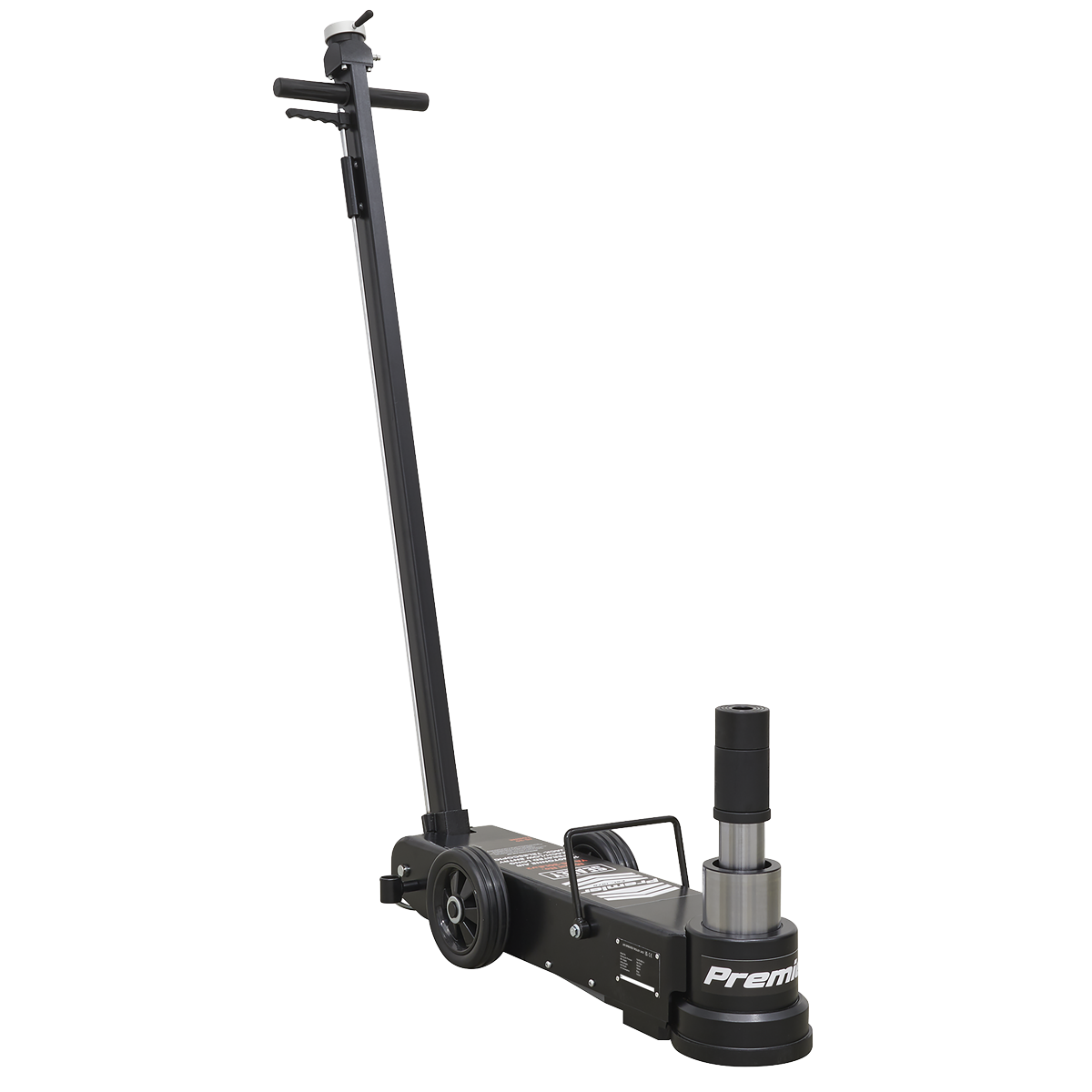

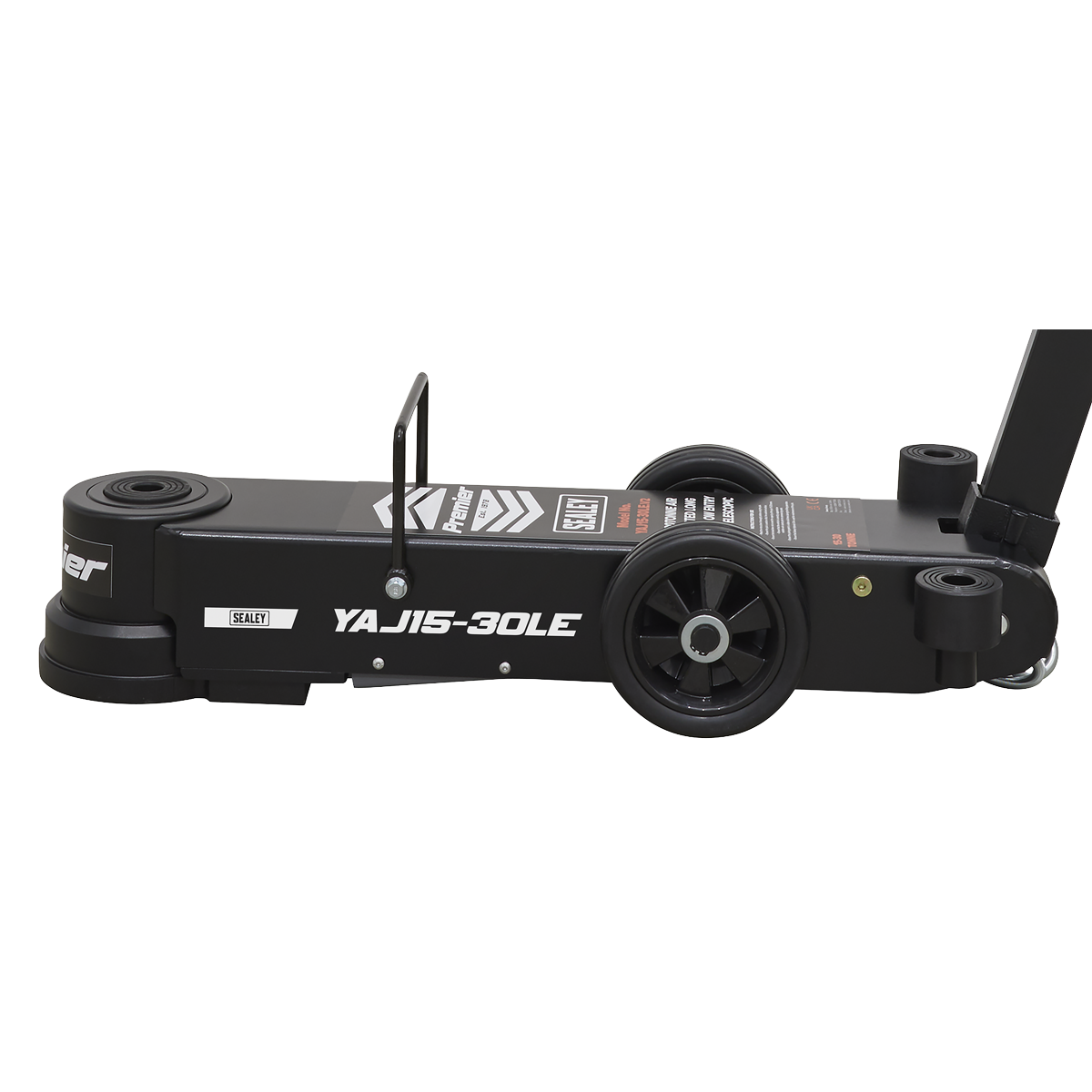

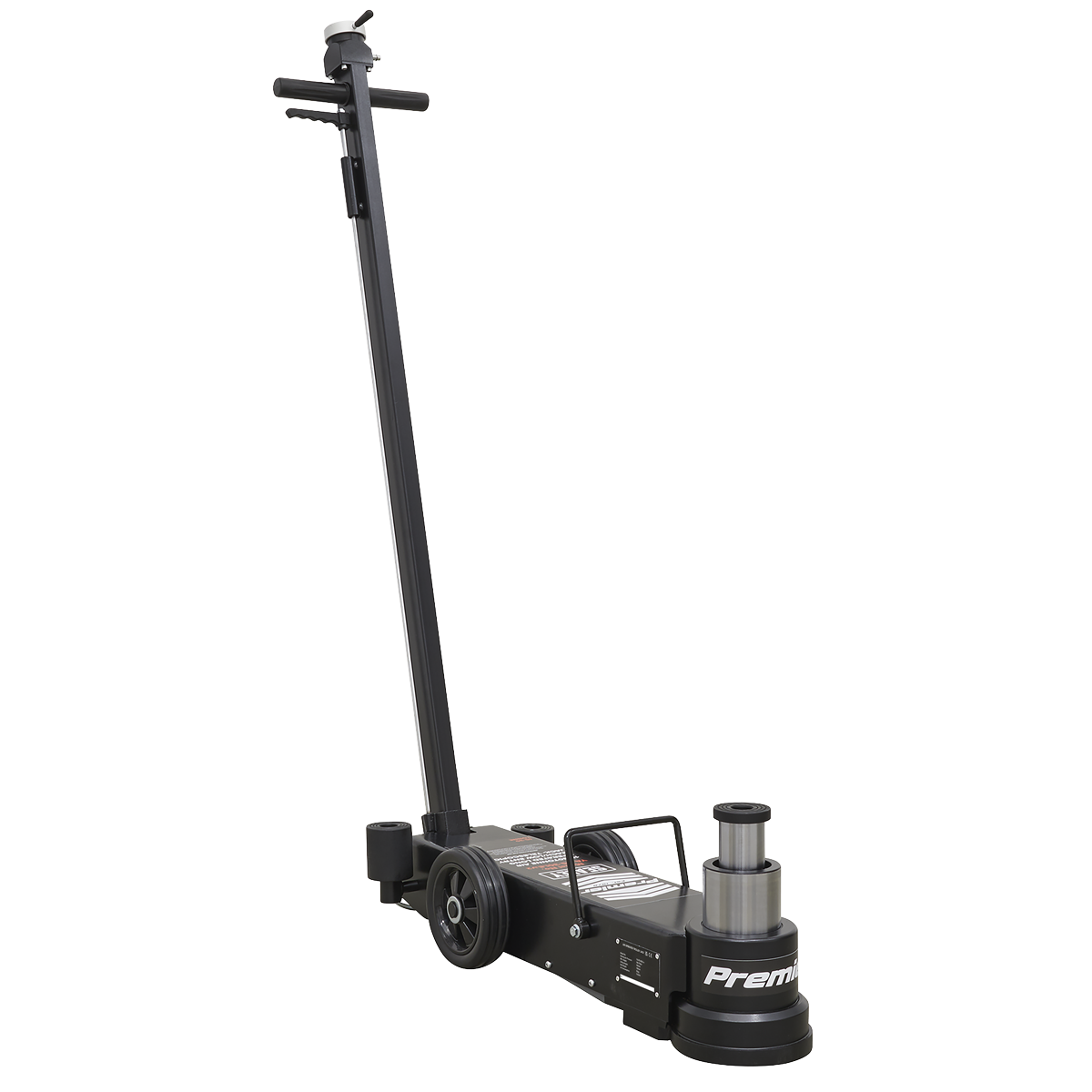

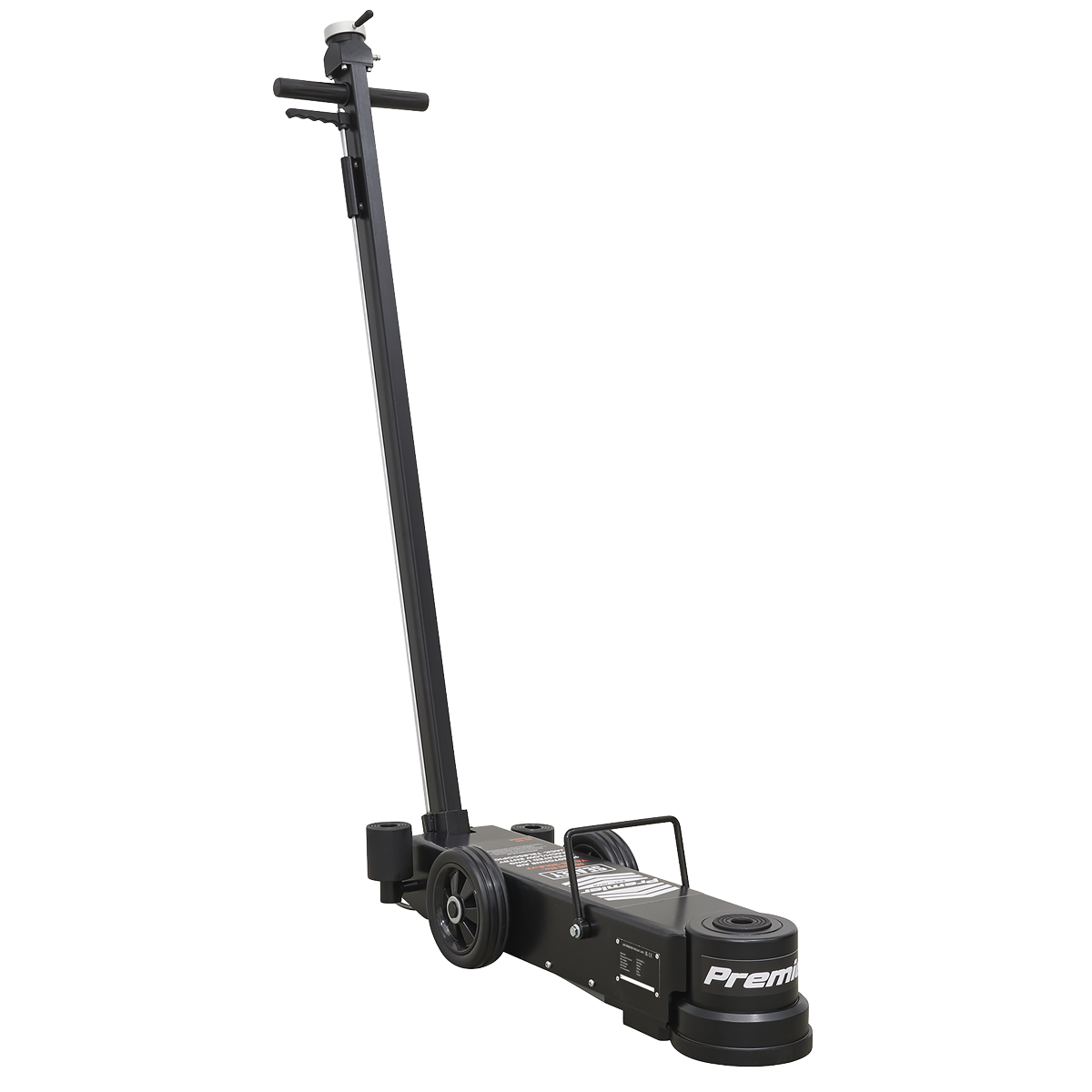

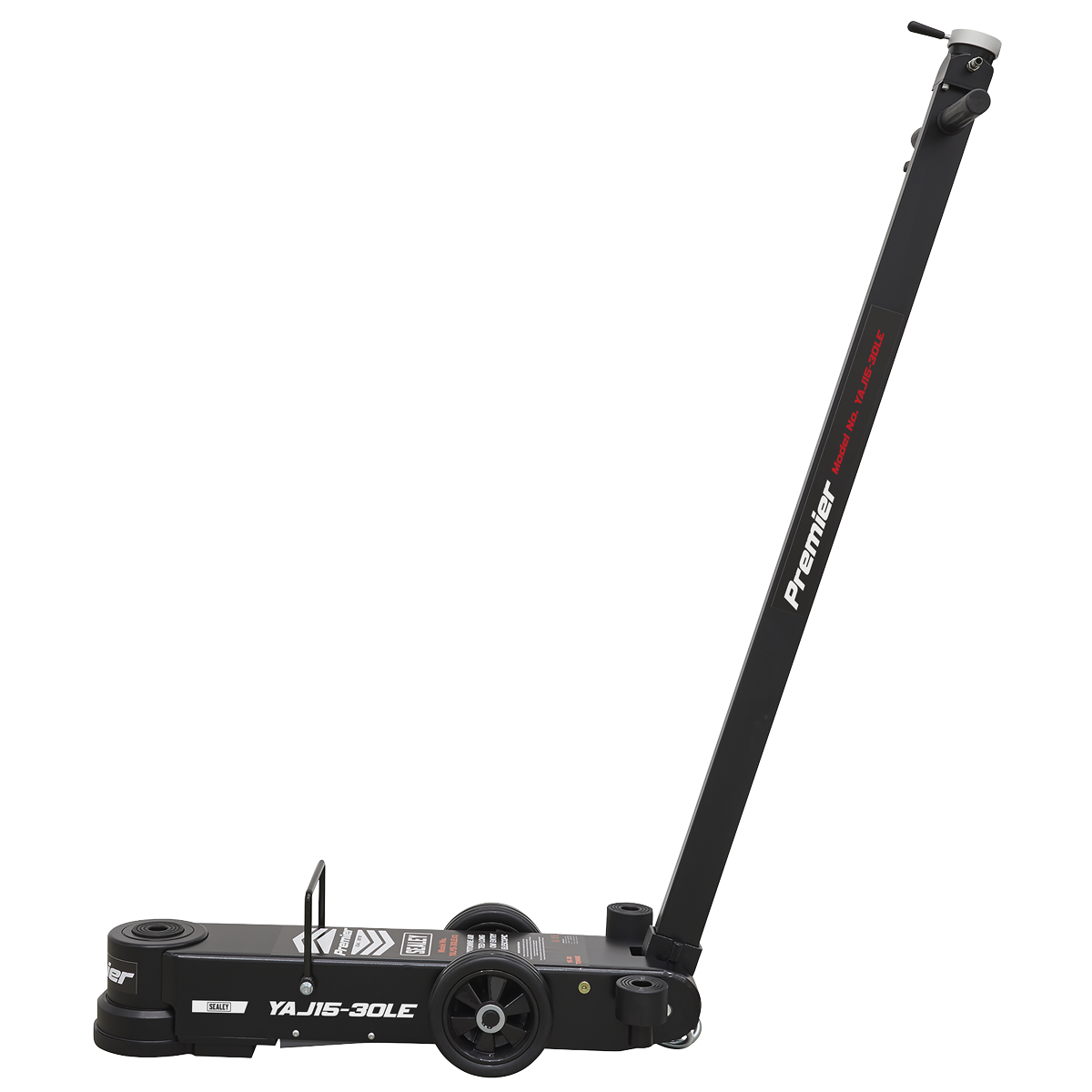

Lifting heavy plant, tractors, and commercial vehicles by hand puts enormous physical strain on workshop and roadside crews alike. The Sealey YAJ15-30LE is an air-operated telescopic jack designed to take that effort away entirely. With a 30-tonne capacity at Stage 1 and 15-tonne capacity at Stage 2, it handles the demands of heavy plant and commercial vehicle work with ease. The minimum saddle height is 150mm, and the telescopic stages extend to a maximum saddle height of 343mm (30t) at Stage 1 and 409mm (15t) at Stage 2, including extensions. Two extensions are supplied 45mm and 75mm to help close the gap between the saddle and the jacking point. The jack operates on air at a working pressure of 116-174psi, with an air consumption of 11.5cfm. A spring-loaded dead man's control provides safe, controlled lifting and lowering. The handle is adjustable, locks in position, and can be set at three different angles to improve manoeuvrability and access around the vehicle. The chassis length is 810mm, overall width is 295mm, and maximum length is 2190mm. This product carries a 3-year guarantee. Please note: this item is heavy extra assistance must be provided at the delivery point to help ensure safe delivery.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YAJ15-30LE |
|---|---|
| Air Consumption | 11.5cfm |
| Brand | Sealey |
| Capacity | 30 Tonne |
| Chassis Length | 810mm |
| Extensions | 45/75mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 343/30 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | 409/15 |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | n/a |
| Maximum Length | 2190mm |
| Minimum Saddle Height | 150mm |
| Nett Weight | 52kg |
| Overall Width | 295mm |
| Piston Stroke | 139mm |
| Screw Extension | n/a |
| Width without Wheels | 215mm |
| Working Pressure | 116-174psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-air-operated-jack-15-30tonne-telescopic-long-reachlow-ent.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YAJ10-40LELR Air Operated Telescopic Jack 10-40 Tonne Long Reach Low Entry
£1,772.34
£1,736.89
2% OFF
Free delivery in UK Mainland
|
Sealey YAJ301 Air Operated Jack 30 Tonne Single Stage
£958.85
£940.05
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
Draper 2078 Pneumatic High Lift Jack, 30 Tonne
£1,498.48
£1,469.10
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YAJ10-40LELR | YAJ301 | 53438000 | 09893 | 09890 | 02078 |
| Warranty | 12 | 36 | 12 | 36 | 36 | 6 |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack |
| Capacity | 40 Tonne | 30 Tonne | 30 Tonne (30,000kg) | |||
| Length (mm) | 830 | 490 | 420 | 150 | 141 | 360 |
| Max Pressure (psi) | 174 | 174 | 174 | |||
| Nett Weight | 54kg | 47kg | 87kg | |||
| Weight (kg) | 54 | 47 | 117 | 000 | ||
| Show More | ||||||
A. The YAJ15-30LE has a capacity of 30 tonnes at Stage 1 and 15 tonnes at Stage 2.
A. The minimum saddle height is 150mm. Maximum height including extensions is 343mm at Stage 1 (30t capacity) and 409mm at Stage 2 (15t capacity).

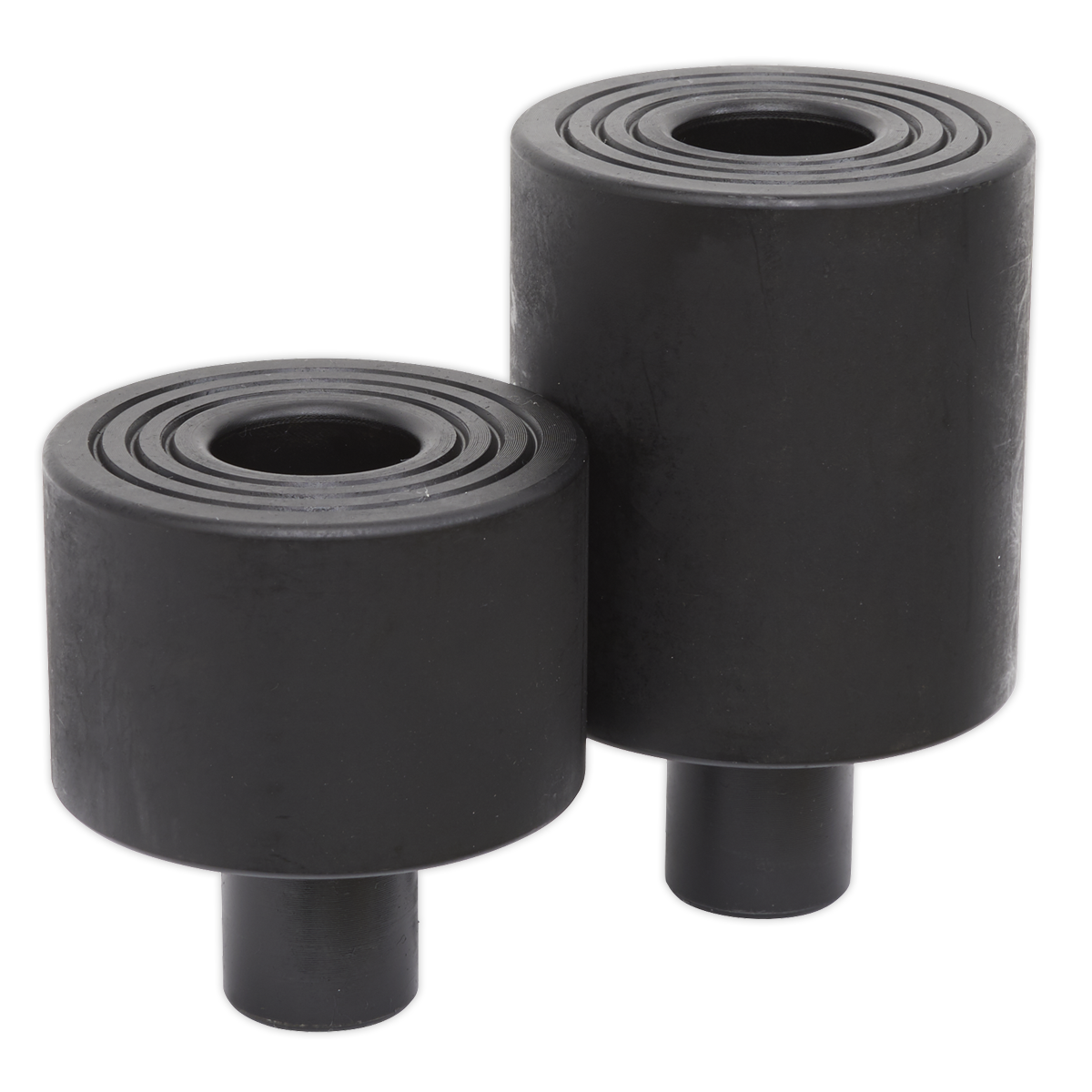

A. The jack is supplied with 45mm and 75mm extensions to help close the gap between the saddle and the jacking point.
A. The working pressure is 116-174psi, with an air consumption of 11.5cfm.

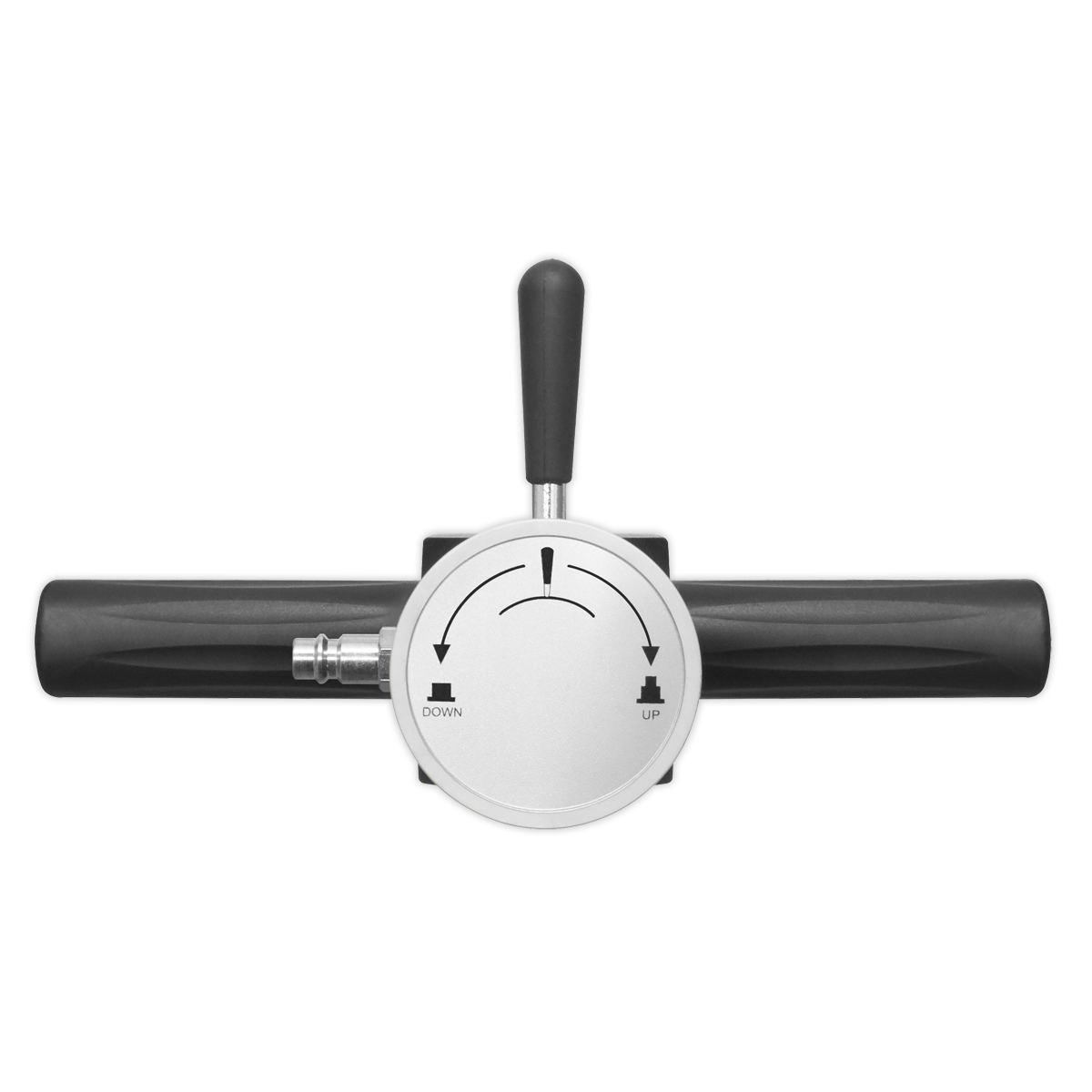

A. The jack features a spring-loaded dead man's control that enables safe, controlled lifting and lowering of the vehicle.
A. Yes. The handle is adjustable, locks in position, and can be used at three different angles to improve manoeuvrability and access around the vehicle.
A. The YAJ15-30LE carries a 3-year guarantee.
A. Yes. The YAJ15-30 is available as a variant in the same product family. Please refer to its product listing for the full specification.
A. Yes. Alternatives include the YAJ10-40LELR, YAJ20-60LR, and YAJ50-80LR, each offering a different capacity and reach specification. Please refer to the individual product listings for details.
A. Standard delivery is 2-3 working days for in-stock items. Next-day delivery is available for eligible orders placed before cut-off.
