Product Number: YAJ301
Variations

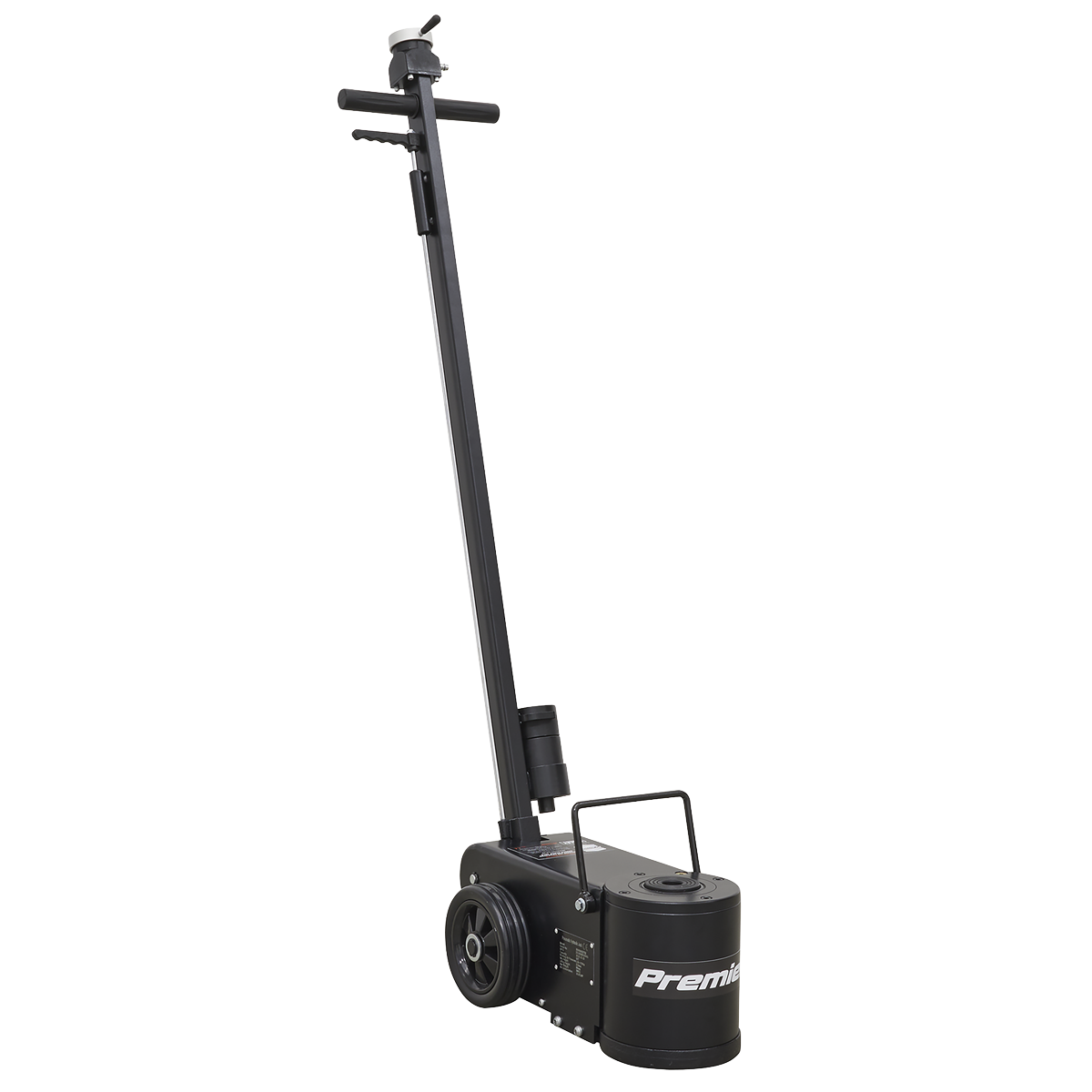

When heavy plant, tractors, and commercial vehicles need lifting, manually operated jacks can be slow, unsafe, and physically demanding whether in a busy workshop or at the roadside. The Sealey YAJ301 is a single-stage air operated jack with a 30-tonne lifting capacity, designed to take the effort out of the most demanding lifting jobs. Powered at a working pressure of 116-174psi with an air consumption of 10.5cfm, the YAJ301 raises from a minimum saddle height of 210mm to a maximum height of 463mm including the supplied extensions, with a piston stroke of 133mm. The chassis is 490mm long, overall width is 290mm, width without wheels is 176mm, and the maximum overall length is 1,700mm. A spring-loaded dead man's control enables safe, controlled lifting and lowering, and also aids controlled lowering speed. The handle locks in position and can be used at three different angles for improved manoeuvrability and access around the vehicle. Supplied with 45mm and 75mm extensions to close the gap between the saddle and the jacking point. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YAJ301 |
|---|---|
| Air Consumption | 10.5cfm |
| Brand | Premier |
| Capacity | 30 Tonne |
| Chassis Length | 490mm |
| Extensions | 45/75mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 463/30 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | n/a |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | n/a |
| Maximum Length | 1700mm |
| Minimum Saddle Height | 210mm |
| Nett Weight | 47kg |
| Overall Width | 290mm |
| Piston Stroke | 133mm |
| Screw Extension | n/a |
| Width without Wheels | 176mm |
| Working Pressure | 116-174psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YAJ201 Air Operated Jack 20 Tonne Single Stage
£769.98
£754.88
2% OFF
Free delivery in UK Mainland
|
Sealey PAFJ3S Premier Air Fast Jack 3 Tonne 3-Stage
£537.03
£526.29
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
Draper 2078 Pneumatic High Lift Jack, 30 Tonne
£1,498.48
£1,469.10
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YAJ201 | PAFJ3S | 53438000 | 09893 | 09890 | 02078 |
| Warranty | 12 | 36 | 12 | 36 | 36 | 6 |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack |
| Capacity | 20 Tonne | 3 Tonne | 30 Tonne (30,000kg) | |||
| Length (mm) | 525 | 405 | 420 | 150 | 141 | 360 |
| Max Pressure (psi) | 174 | 150 | 174 | |||
| Nett Weight | 30kg | 20kg | 87kg | |||
| Weight (kg) | 30 | 20 | 117 | 000 | ||
| Show More | ||||||
A. The YAJ301 has a single-stage lifting capacity of 30 tonnes.
A. The YAJ301 requires a working pressure of 116-174psi and has an air consumption of 10.5cfm.
A. The minimum saddle height is 210mm. The maximum height including extensions is 463mm, with a piston stroke of 133mm.
A. The YAJ301 is supplied with 45mm and 75mm extensions to help close the gap between the saddle of the jack and the jacking point.
A. The YAJ301 features a spring-loaded dead man's control for safe, controlled lifting and lowering, and a locking handle that can be set at three different angles for improved manoeuvrability and access.
A. The YAJ301 is backed by a 3-year guarantee.
A. The chassis length is 490mm, overall width is 290mm, width without wheels is 176mm, and the maximum overall length is 1,700mm.
A. Yes, the YAJ301 is described as ideal for both workshop and roadside use, designed to lift heavy plant, tractors, and commercial vehicles.
A. Several alternative air operated jacks are listed: YAJ18S, YAJ201, YAJ20B, and YAJ30H - each is a different product offering a similar lifting function at a different capacity or configuration. Please refer to those listings for their individual specifications.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase. Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification. Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
