Product Number: 02080

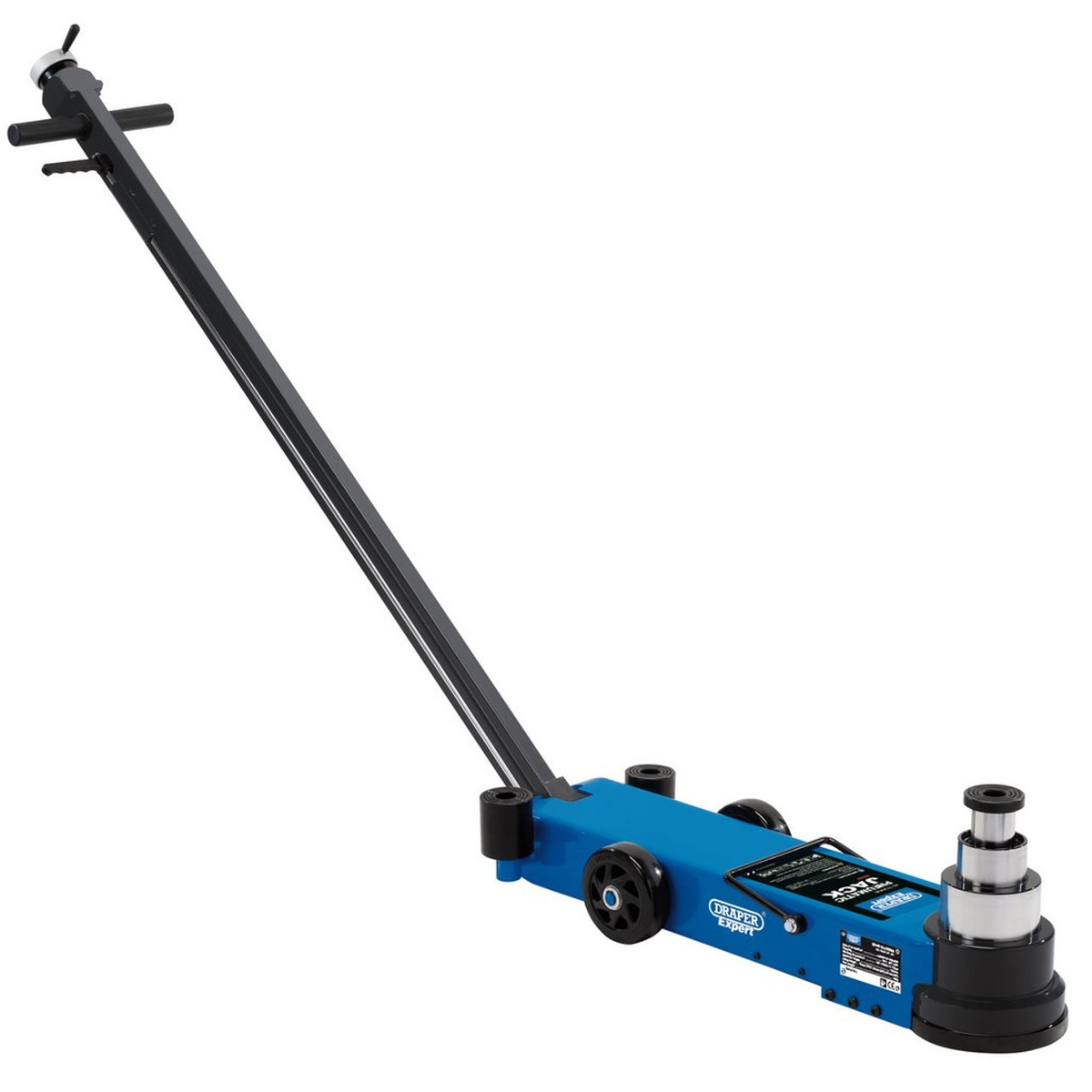

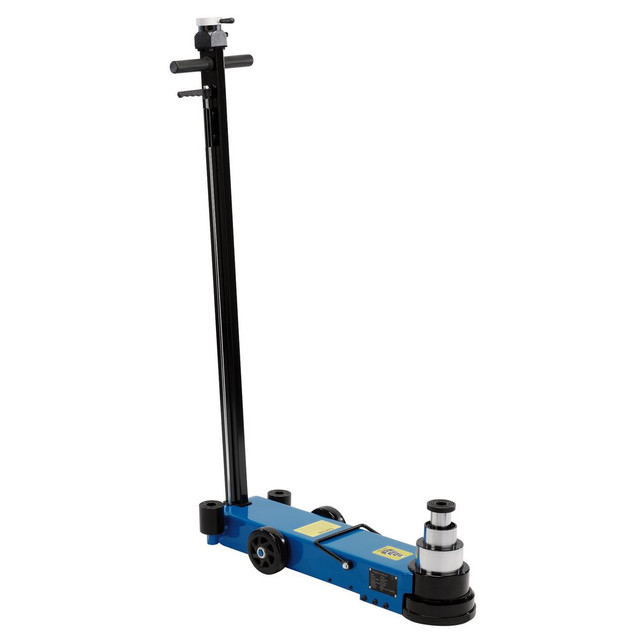

Heavy commercial and industrial lifting demands a jack that can reach beneath low-slung vehicles whilst carrying substantial loads safely. The Draper Expert 2080 is a long chassis, extra low profile pneumatic jack with a 125mm entry height and a total chassis reach of 2210mm, enabling it to access vehicles where conventional floor jacks cannot. Lifting capacity is staged across three positions: 40 tonnes at stage one, 20 tonnes at stage two, and 10 tonnes at stage three, providing versatility across a wide range of lifting tasks. The three-stage adjustable ergonomic handle is fitted with a 'Slow Down' valve and a 'Self-Return' switch, both designed to improve operational safety and ease of use. Industrial quality seals prolong service life, and a safety overload valve provides an additional layer of protection during use. Twin rubber-coated wheels reduce operating noise, protect garage and workshop floors from damage, and enhance manoeuvrability across flat surfaces. Operating air pressure is 9–12 BAR (130–174 psi) with an air consumption of 11.5 cfm. The air inlet is a standard 1/4" BSP connection. Maximum lift heights with extensions fitted are 302mm at stage one, 347mm at stage two, and 396mm at stage three. The saddle diameter is 70mm and the chassis measures 830 x 179 x 125mm. The unit weighs 44kg and is supplied complete with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured to EN1494 specification.
Expert Quality, long chassis, extra low profile pneumatic jack. The 125mm entry height has a total reach of 2210mm and is capable of lifting 40 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a 'Slow Down' valve and a 'Self-Return' switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Consumption | 11.5cfm |
|---|---|
| Air Inlet | 1/4" BSP |
| Capacity | 40 Tonne (40,000kg)20 Tonne (20,000kg)10 Tonne (10,000kg) |
| Chassis Dimensions | 830 x 179 x 125mm |
| Handle Length | 1380mm |
| Lifting Height Position 1 | 57mm |
| Max Height Stage 1 | 302mm (inc extensions) |
| Max Height Stage 2 | 347mm (inc extensions) |
| Min Height | 125mm |
| Nett Weight | 44kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 125mm |
| Max Height Stage 3 | 396mm (inc extensions) |
| Wheel Width | 47.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 2078 Pneumatic High Lift Jack, 30 Tonne
£1,498.48
£1,469.10
2% OFF
Free delivery in UK Mainland
|
Sealey AM30S Viking Manual/Air Hydraulic Bottle Jack 30 Tonne
£471.97
£462.72
2% OFF
Free delivery in UK Mainland
|
Sealey AM50S Viking Manual/Air Hydraulic Bottle Jack 50 Tonne
£569.51
£558.34
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02081 | 02078 | AM30S | AM50S | 09893 |
| Warranty | 6 | 6 | 36 | ||
| Type | Air Jack | Air Jack | Air Jack | ||
| Lifting Capacity (Tonne) | 50 | 30 | 32 | ||
| Min. Lifting Height (mm) | 114 | 360 | 150 | ||
| Max. Lifting Height (mm) | 115 | 772 | 289 | ||
A. The Draper Expert 2080 has a minimum entry height of 125mm, making it suitable for use beneath low-profile vehicles where standard floor jacks cannot be positioned.
A. The jack operates across three stages: stage one provides a 40-tonne (40,000kg) capacity, stage two provides 20 tonnes (20,000kg), and stage three provides 10 tonnes (10,000kg).
A. With the supplied extensions fitted, maximum height is 302mm at stage one, 347mm at stage two, and 396mm at stage three.
A. The jack requires an operating air pressure of 9–12 BAR (130–174 psi) and consumes 11.5 cfm. It connects via a standard 1/4" BSP airline connector, which is supplied with the unit.
A. The jack is fitted with a 'Slow Down' valve and a 'Self-Return' switch on the three-stage ergonomic handle, industrial quality seals, and a safety overload valve to help prevent overloading during use.
A. The Draper Expert 2080 is manufactured to EN1494 specification.

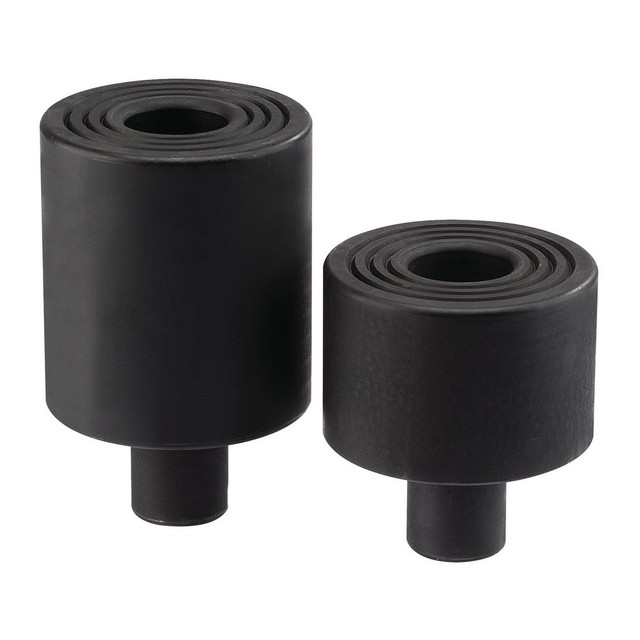

A. The jack is supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
