Product Number: 02081

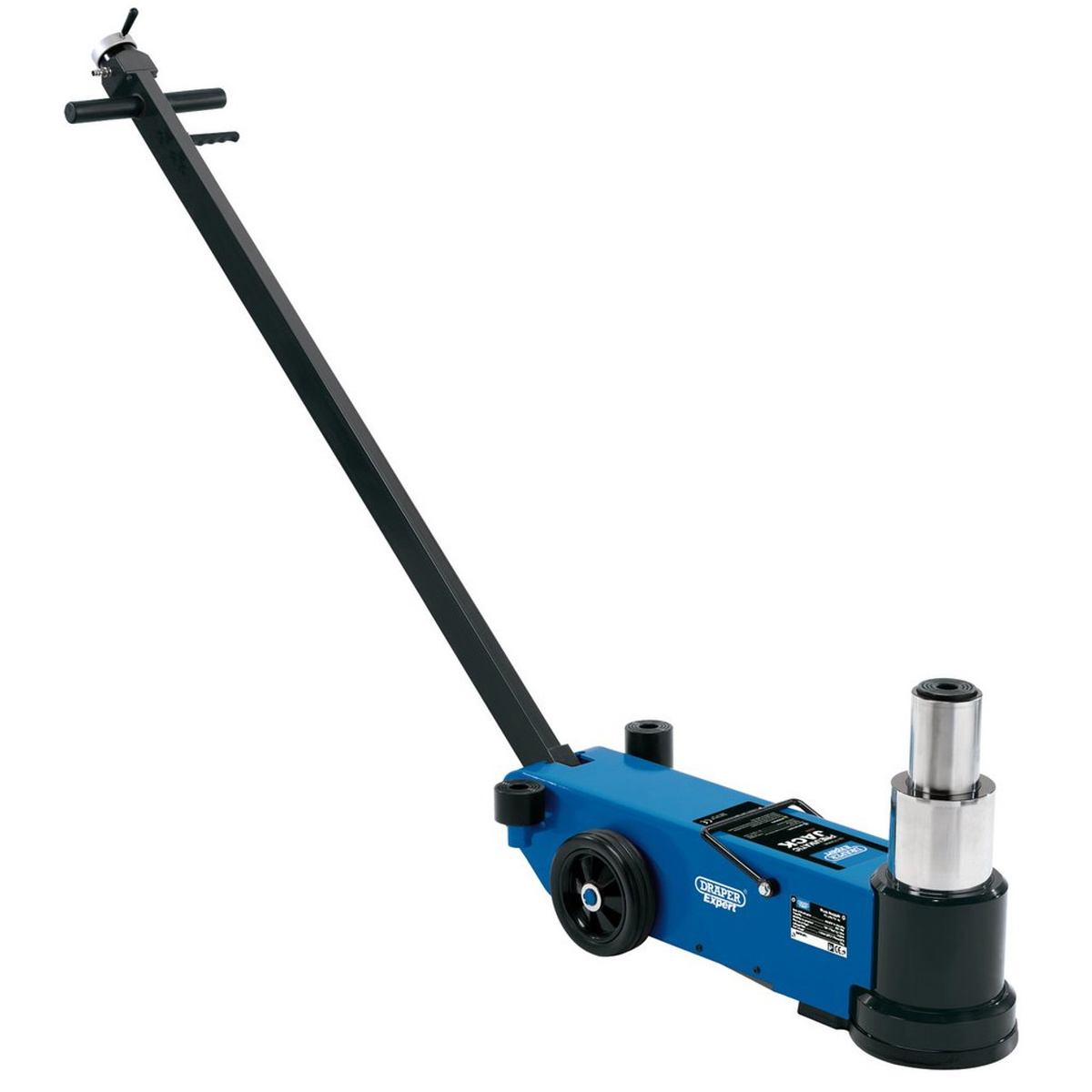

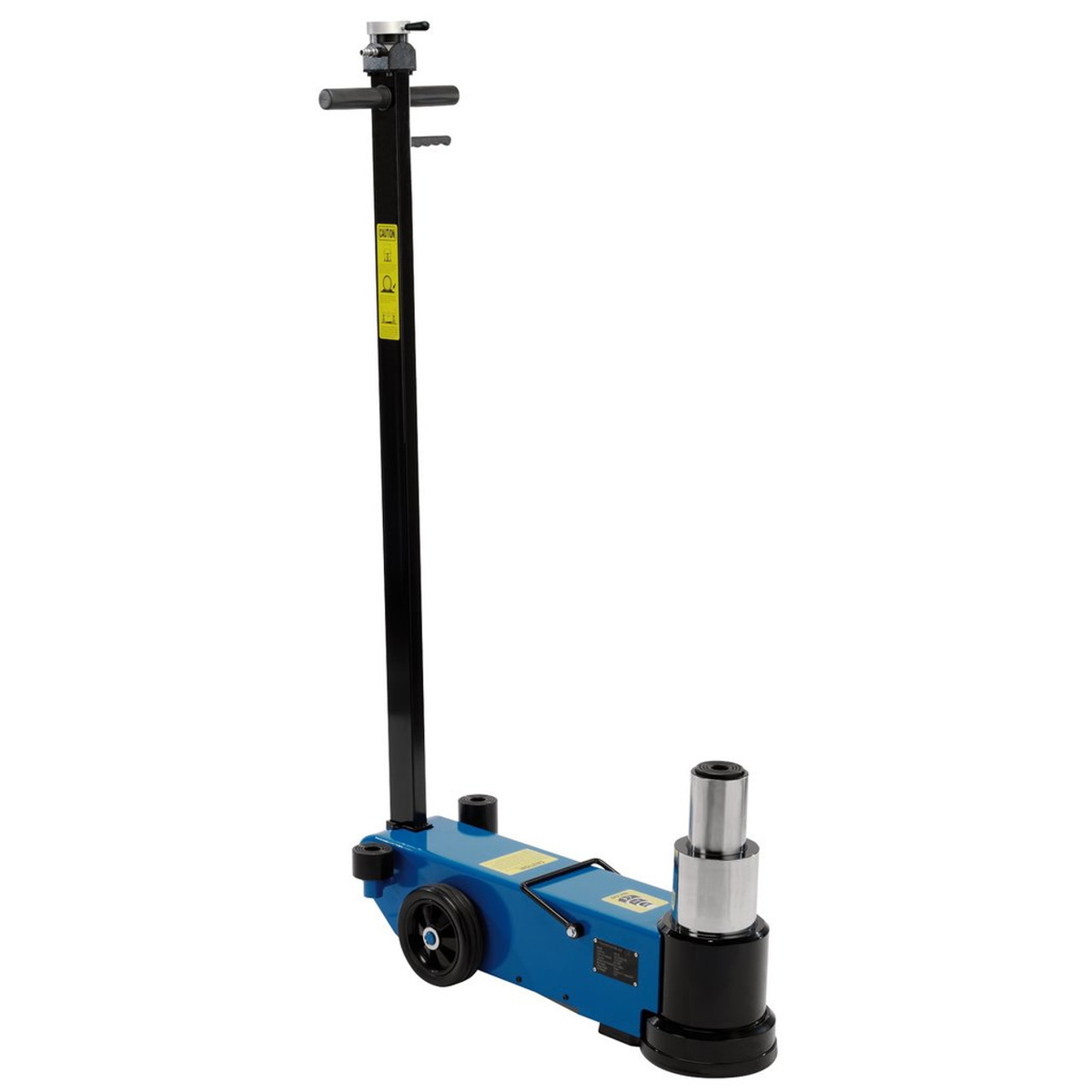

Heavy-duty lifting operations demand equipment that combines capacity with precise control, and the Draper Expert 2081 pneumatic jack delivers both in a portable, compact twin-stage design capable of lifting 50 tonnes in stage one and 25 tonnes in stage two. Air-powered operation ensures consistent, controlled lifts without physical effort, making it well suited to demanding workshop and industrial environments. Safety and ease of use are built into the handle assembly: the three-stage adjustable ergonomic handle is fitted with a 'Slow Down' valve to regulate descent and a 'Self-Return' switch, both of which contribute to safer, more predictable operation. Industrial quality seals are fitted throughout to prolong service life, and a safety overload valve provides an additional layer of protection against overload conditions. The jack rides on twin rubber-coated wheels measuring 165mm in diameter and 42.5mm in width, chosen to reduce noise, protect garage and workshop floors, and improve manoeuvrability around the vehicle. The 70mm diameter saddle provides a stable contact point during lifting. The unit operates on a supply of 9–12 BAR (130–174 psi) via a 1/4" BSP air inlet, with an air consumption of 11.5 cfm. Minimum height is 215mm; maximum height reaches 450mm in stage one and 564mm in stage two, both figures inclusive of the supplied 45mm and 75mm height lift extensions. The chassis measures 805 x 200 x 215mm and the handle extends to 1,380mm. Nett weight is 73 kg. Manufactured, tested, and certified to the EN1494 standard, the Draper Expert 2081 is supplied with 45mm and 75mm lift extensions and a 1/4" BSP airline connector.
Expert Quality, portable and compact twin stage pneumatic jack, capable of lifting 50 Tonnes. The 3 stage adjustable ergonomic handle is fixed with a "Slow Down" valve and a "Self-Return" switch for increased safety and easy use. Fitted with industrial quality seals prolonging the life of the jack, a safety overload valve and twin rubber coated wheels for a quieter and smoother operation, whilst also preventing damage to garage floors and improving manoeuvrability. Supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector. Manufactured, tested and certified to the current EN1494 standard.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Air Consumption | 11.5cfm |
|---|---|
| Air Inlet | 1/4" BSP |
| Capacity | 50 Tonne (50,000kg)25 Tonne (25,000kg) |
| Chassis Dimensions | 805 x 200 x 215mm |
| Handle Length | 1380mm |
| Lifting Height Position 1 | 115mm |
| Lifting Height Position 2 | 114mm |
| Max Height Stage 1 | 450mm (inc extensions) |
| Max Height Stage 2 | 564mm (inc extensions) |
| Min Height | 215mm |
| Nett Weight | 73kg |
| Operating Air Pressure | 9 – 12BAR (130 – 174psi) |
| Saddle Diameter | 70mm |
| Wheel Diameter | 165mm |
| Wheel Width | 42.5mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
87679 | Draper 87679 INNER SLEEVE ASSY | 1 Unit |
£218.17
£213.89
|
Add |
|
|
87773 | Draper 87773 PUMP SEAL KIT | 1 Unit |
£121.58
£119.20
|
Add |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AM50S Viking Manual/Air Hydraulic Bottle Jack 50 Tonne
£569.51
£558.34
2% OFF
Free delivery in UK Mainland
|
Draper 02080 Pneumatic Long Chassis Low Profile Jack, 40 Tonne
£1,205.25
£1,181.62
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
SIP 03643 AirFloor Jack, Weight Capacity - 22 Tonne
£555.81
£544.91
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | AM50S | 02080 | 53438000 | 09893 | 09890 | 03643 |
| Warranty | 6 | 12 | 36 | 36 | 24 | |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | |
| Lifting Capacity (Tonne) | 40 | 10 | 32 | 24 | 22 | |
| Min. Lifting Height (mm) | 45 | 150 | 150 | 141 | 230 | |
| Max. Lifting Height (mm) | 57 | 289 | 441 | 555 | ||
A. The Draper Expert 2081 is a twin-stage pneumatic jack. In stage one it is capable of lifting 50 tonnes (50,000 kg); in stage two the capacity is 25 tonnes (25,000 kg).
A. The jack requires an operating air pressure of 9–12 BAR (130–174 psi), supplied via a 1/4" BSP air inlet. Air consumption is 11.5 cfm. A 1/4" BSP airline connector is supplied with the unit.
A. The minimum height is 215mm. Maximum height in stage one is 450mm and in stage two is 564mm; both figures are inclusive of the supplied 45mm and 75mm height lift extensions. Lift height in stage one is 115mm and in stage two is 114mm.
A. The three-stage adjustable ergonomic handle is fitted with a 'Slow Down' valve to control the rate of descent and a 'Self-Return' switch for safer operation. A safety overload valve is also fitted, along with industrial quality seals that prolong the service life of the jack.

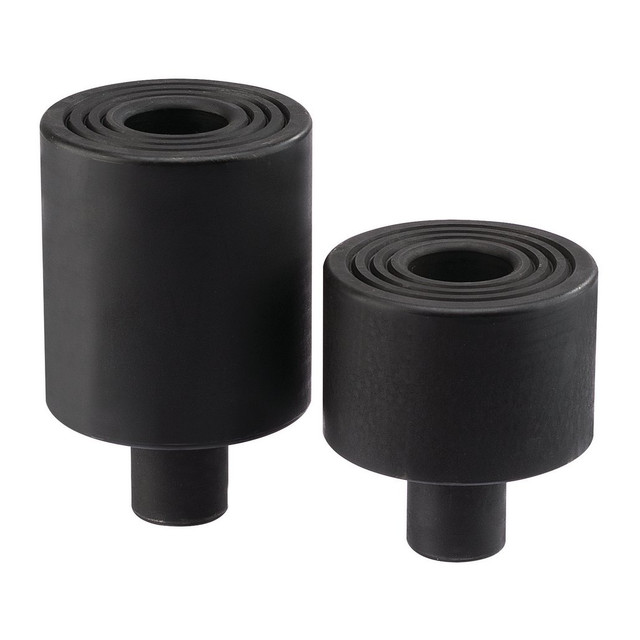

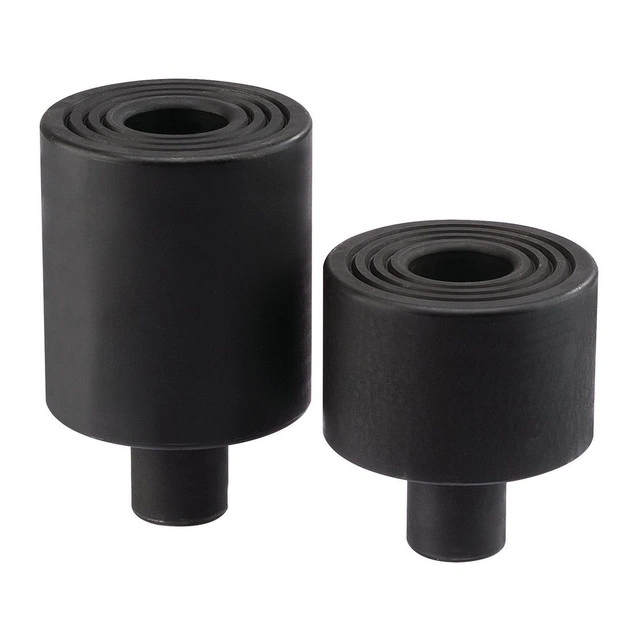

A. The Draper Expert 2081 is supplied with 45mm and 75mm height lift extensions and a 1/4" BSP airline connector.
A. Yes. The jack is manufactured, tested, and certified to the EN1494 standard.
