Product Number: 09893
Variations

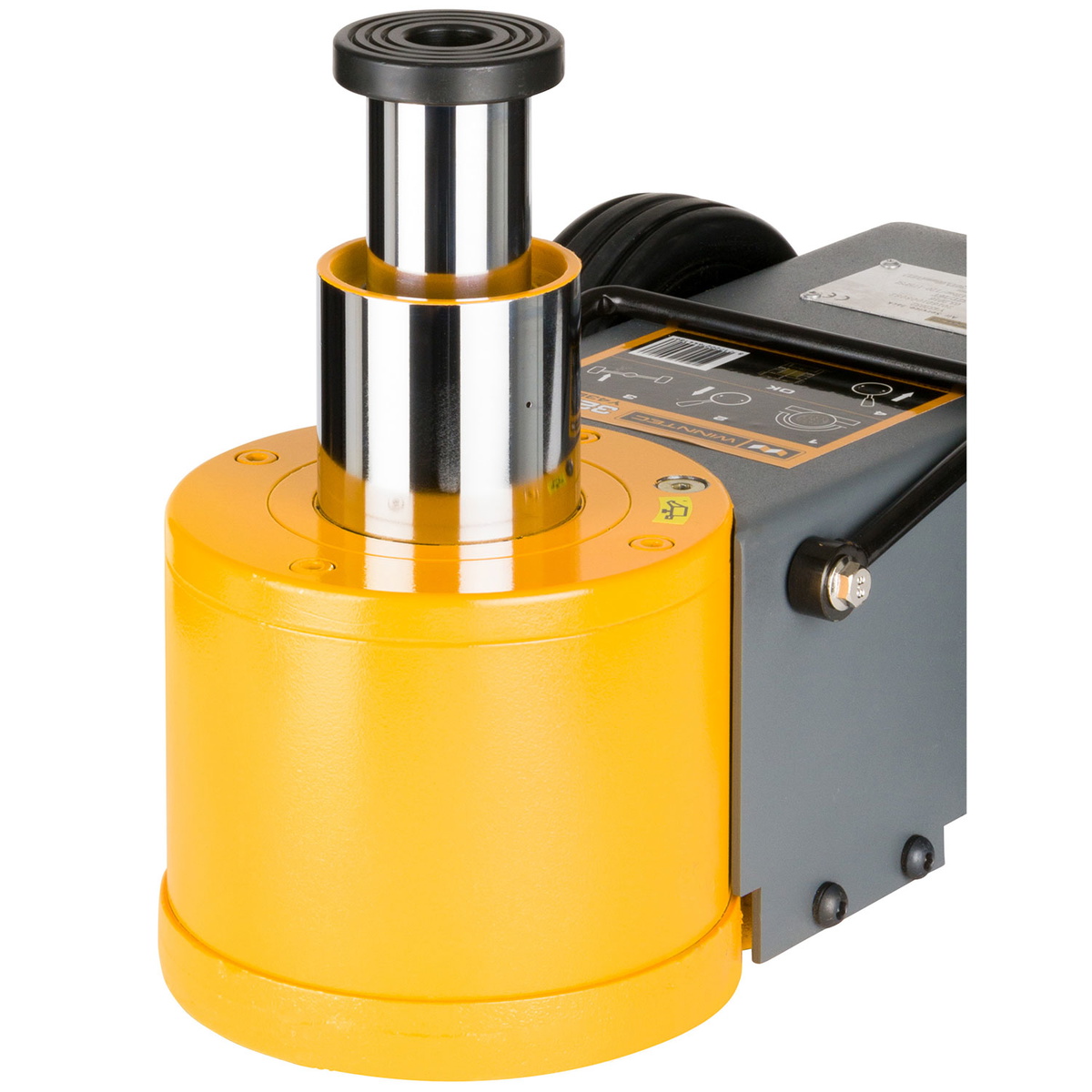

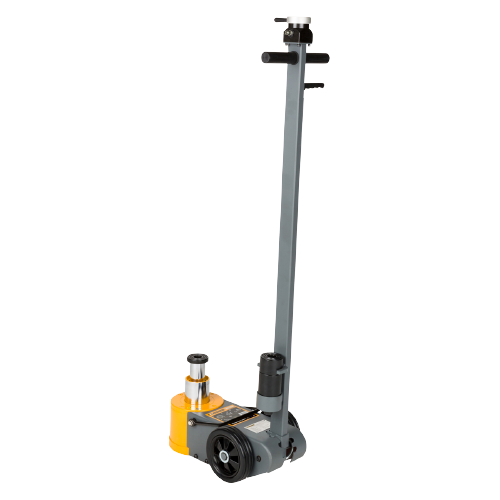

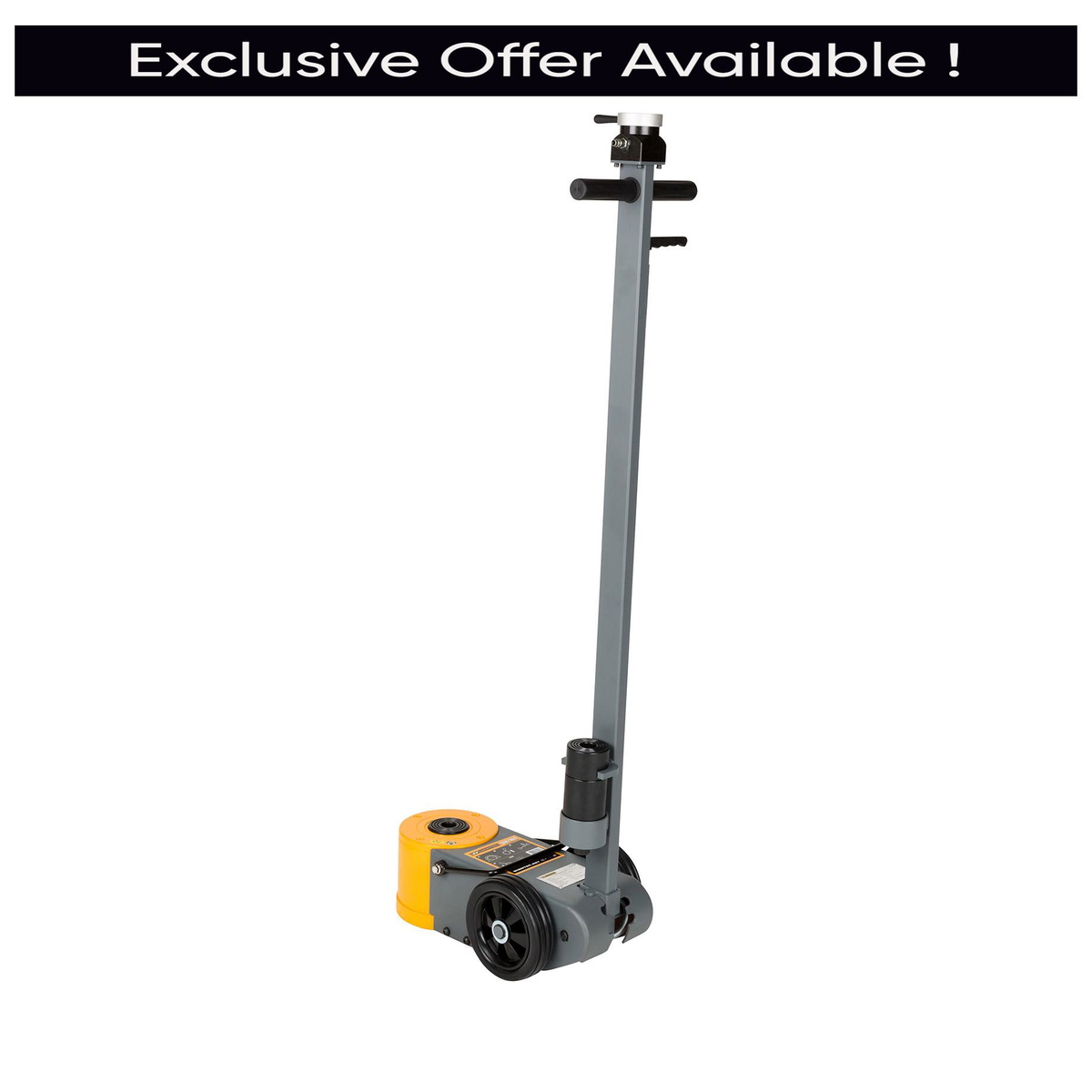

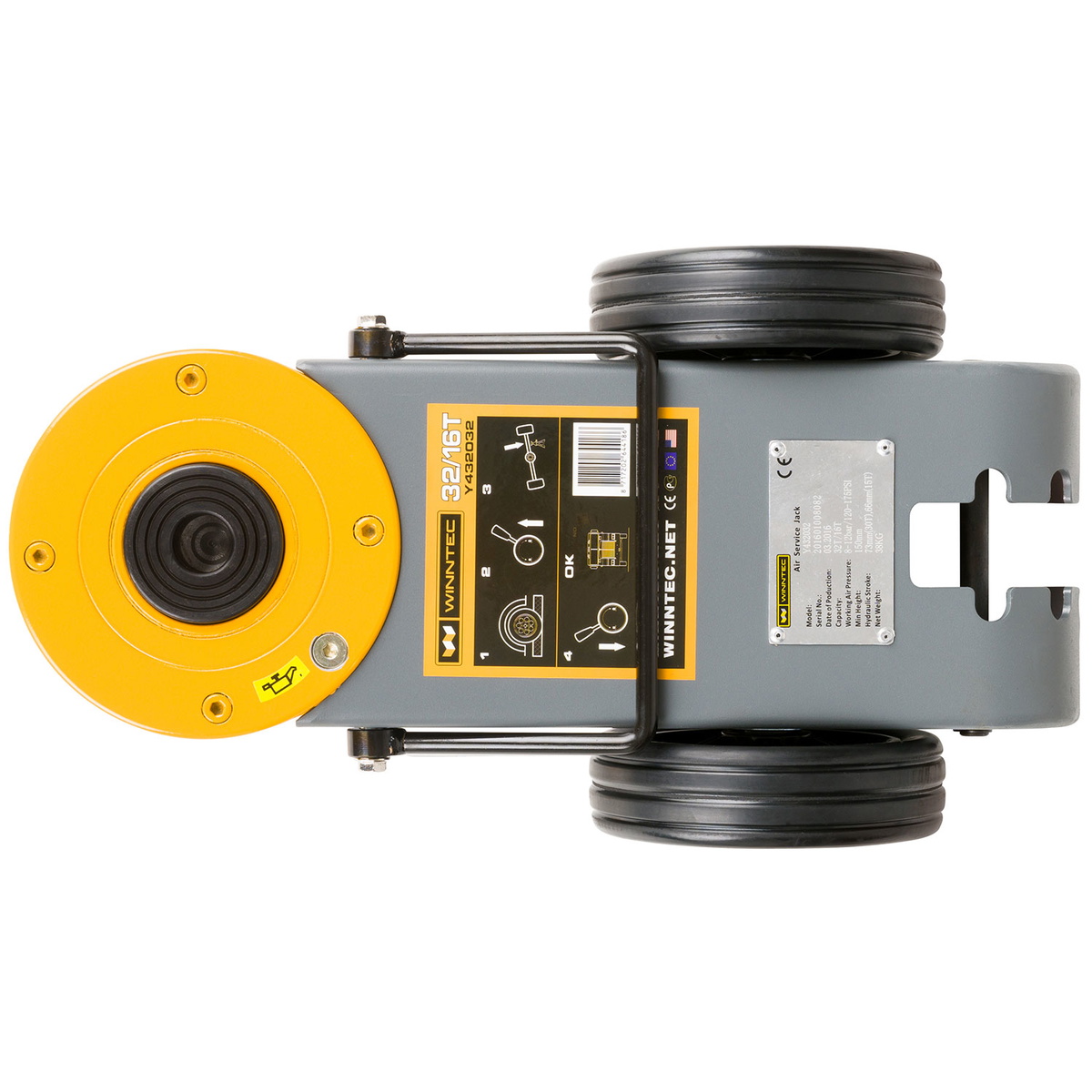

The SIP 09893 WINNTEC® Air Service Jack is a heavy-duty, hydraulically-assisted lifting tool engineered for larger and heavier vehicles that require a versatile lifting range. Designed to handle a maximum weight capacity of 32/16 tonnes and deliver a minimum lifting height of 150mm rising to a maximum of 289mm, this jack is built to meet the demands of professional workshop and service environments.
At the core of this jack is a dual-stage telescopic hydraulic lifting system that provides straightforward ascension and descension using air, ensuring controlled and consistent operation. The heavy-duty hard chromed piston and main ram contribute to the robustness and longevity of the unit, whilst the wheel-mounted design combined with a 1300mm handle allows for precise and effortless repositioning around the workshop floor. Built-in dead man's controls deliver a reliable safety function during all lifting applications.
The WINNTEC® 09893 ships with two versatile saddle extensions — 45mm and 100mm — to accommodate varying vehicle undercarriage profiles. An optional 260mm extension is available separately for applications requiring additional reach. Air consumption is rated at 10.6 CFM (300 litres per minute), and the jack operates across two lifting stages. Overall footprint dimensions are 480mm in length, 290mm in width, and 150mm in base height, making this a compact yet capable unit for its capacity class.
This product is part of the WINNTEC® from SIP range. Operators requiring different capacity options should explore additional models within the WINNTEC® air jack series available on PartsForMachines.com.
The jack is supplied with two extensions (45mm and 100mm) as standard. A 3-year warranty is provided under the WINNTEC® from SIP warranty programme. Country of manufacture: Europe.
Additional Information:
The WINNTEC® from SIP 32/16 TON Air Service Jack offers powerful lifting and high performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 289mm. Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 09893 |
|---|---|
| Weight Capacity | 32 / 16 TON |
| Min. Lifting Height | 150mm |
| Max. Lifting Height | 289mm |
| Screw Extension | Optional |
| Supplied Extensions | 45mm / 100mm |
| No. of Stages | 2 stages |
| Handle Length | 1300mm |
| Jack Length | 480mm |
| Jack Width | 290mm |
| Base Height | 150mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 09818 WINNTEC Bottle Jack, Weight Capacity - 20 Tonne
£97.88
£95.96
2% OFF
Free delivery in UK Mainland
|
SIP 09820 WINNTEC Bottle Jack, Weight Capacity - 30 Tonne
£127.07
£124.58
2% OFF
Free delivery in UK Mainland
|
SIP 09827 WINNTEC AirBottle Jack, Weight Capacity - 20 Tonne
£299.47
£290.75
3% OFF
Free delivery in UK Mainland
|
SIP 09829 WINNTEC Low-Profile AirBottle Jack, Weight Capacity - 20 Tonne
£298.11
£292.26
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 09818 | 09820 | 09827 | 09829 |
| Warranty | 36 | 36 | 36 | 36 |
| Type | Bottle Jack | Bottle Jack | Air Bottle Jack | Air Bottle Jack |
| Lifting Capacity (Tonne) | 20 | 30 | 20 | 20 |
| Min. Lifting Height (mm) | 244 | 285 | 245 | 148 |
| Max. Lifting Height (mm) | 449 | 465 | 475 | 260 |
A. The WINNTEC® from SIP 09893 Air Service Jack has a maximum weight capacity of 32/16 tonnes, making it suitable for larger and heavier vehicles requiring substantial lifting support.
A. The jack provides a minimum lifting height of 150mm and a maximum lifting height of 289mm, offering a versatile range for a variety of vehicle undercarriage clearances.
A. The 09893 uses a dual-stage telescopic hydraulic lifting system, providing smooth and controlled hydraulically-assisted lifting in two stages.
A. The jack is supplied as standard with two saddle extensions measuring 45mm and 100mm. An optional 260mm extension is also available and sold separately.
A. The jack is fitted with built-in dead man's controls to provide reliable operator protection during all lifting applications, alongside durable heavy-duty hard chromed piston and main ram components.
A. The WINNTEC® 09893 Air Service Jack requires an air supply delivering 10.6 CFM (300 litres per minute) to operate.
A. The WINNTEC® from SIP 09893 Air Service Jack is covered by a 3-year warranty under the WINNTEC® from SIP warranty programme.
A. The jack measures 480mm in length, 290mm in width, and has a base height of 150mm, with a handle length of 1300mm for ease of manoeuvring.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
