Product Number: D98SS10T/P0

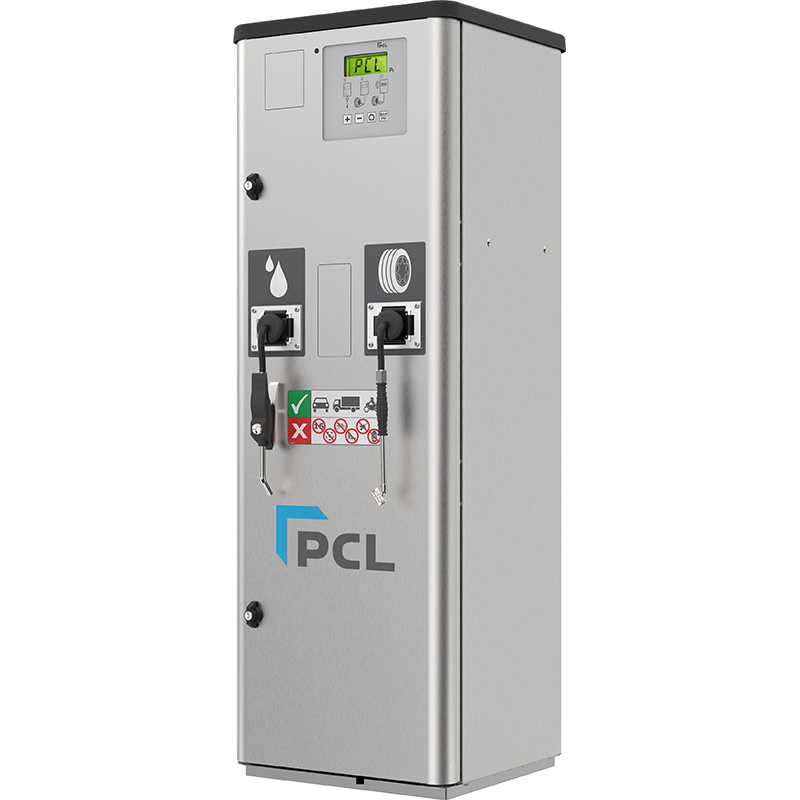

Delivering dependable self-service air and water provision on the petrol forecourt takes equipment engineered for constant public use in all weathers, and the PCL D98SS10T/P0 is built for exactly that duty. This is the D98 Air & Water Tower, 5.5 bar, psi/bar, hold-on, GBP — the latest air and water tower design with integrated hose reels from PCL, built in the UK and constructed to meet the exacting and testing demands of the modern petrol forecourt while providing an attractive and stylish appearance. The stainless steel or painted casings offer long life and the ability to resist the harsh forecourt environment while keeping the unit looking good, and every component from the housing through to the tyre inflator and hoses is built for ease of use, reliability and long life. Inflation is fully preset and automatic: the road user sets the required pressure electronically, and auto-start inflation with audible and visual end-of-cycle signals and a default-to-safe setting does the rest, displayed on the 30 mm transflective backlit LCD fitted as standard with a psi/bar reading sequence. Pressure measurement is accurate to ±0.5% of full-scale reading at a display resolution of 1 psi / 0.1 bar, with auto zero drift correction, a maximum inlet pressure of 232 psi / 16 bar, maximum inflation pressure of 145 psi / 10 bar and an inflation flow of 400 l/min with a 10 bar mains air supply. The unit features a built-in 5.5 bar compressor option for sites where mains air is not available, and this model is supplied with the hold-on tyre valve connector on a 7.6 m / 25 ft air hose alongside a 4 m / 13 ft water hose with radiator filler. This variant is factory-configured with a GBP coin mechanism in the standard stainless steel finish. The cabinet measures 1425 mm high x 573 mm wide x 445 mm deep with an IP44 cabinet rating and IP65-rated electronic inflator unit, operates from -20°C to 70°C in up to 95% RH, and accepts 230 Vac or 100/120 Vac nominal supplies. Compliance covers EC Directive 86/217/EEC, BS EN 12645:1999 and most EU national directives, and towers can be customised from standard specification to individual site requirements. The PCL D98SS10T/P0 is designed and built in Sheffield, United Kingdom, by PCL — part of HORNGROUP.
Product Features :About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Number | D98SS10T/P0 |
| Range | D98 Air & Water Tower (D96/D98) |
| Configuration | Reeled freestanding tower |
| Air Supply | Built-in compressor option |
| Pressure Class | 5.5 bar |
| Display | 30 mm transflective backlit LCD, psi/bar |
| Tyre Valve Connector | Hold-on |
| Air Hose | 7.6 m / 25 ft |
| Water Hose | 4 m / 13 ft |
| Payment | GBP coin mechanism |
| Finish | Stainless steel (painted options available) |
| Dimensions | 1425 mm high x 573 mm wide x 445 mm deep |
| Accuracy | ±0.5% of full scale reading |
| Display Resolution | 1 psi / 0.1 bar |
| Maximum Inlet Pressure | 232 psi / 16 bar |
| Maximum Inflation Pressure | 145 psi / 10 bar |
| Inflation Flow | 400 l/min with 10 bar mains air supply |
| IP Rating | IP44 cabinet / IP65 electronic inflator unit |
| Operating Temperature | -20°C to 70°C |
| Humidity | Up to 95% RH non-condensing |
| Voltage Nominal | 230 Vac / 100-120 Vac |
|
Compliance:EC Directive 86/217/EEC, BS EN 12645:1999, most EU national directives
|
|
| Country of Manufacture | United Kingdom (Sheffield) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
PCL D91SS10T/P0 D91 Air & Water Tower, Mains Air, 5.5 bar, psi/bar, hold-on, GBP
£2,434.34
£2,386.61
2% OFF
|
PCL D96SS10T/P0 D96 Air & Water Tower, Mains Air, 5.5 bar, psi/bar, hold-on, GBP
£4,321.85
£4,237.11
2% OFF
|
Sealey RE109 Air Hydraulic Foot Pump 10,000psi
£331.52
£325.02
2% OFF
Free delivery in UK Mainland
|
Draper 42599 PCL Airforce Analogue Tyre Inflator
£113.33
£111.11
2% OFF
Free delivery in UK Mainland
|
Draper 36633 Air Line Inflator with Open Ended Clip On Connector
£50.59
£49.60
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | D91SS10T/P0 | D96SS10T/P0 | D90SS10T/P0 | D91SS10T | D91ST10T | D98ST10T/E0 | D98SS20T | RE109 | 42599 | 36633 | MS087 |
A. The road user pre-sets the required pressure electronically and the auto-start function inflates automatically, with audible and visual end-of-cycle signals and a default-to-safe setting.
A. Pressure measurement is accurate to ±0.5% of full-scale reading with a display resolution of 1 psi / 0.1 bar, with auto zero drift correction, complying with EC Directive 86/217/EEC and BS EN 12645:1999.
A. Maximum inflation pressure is 145 psi / 10 bar (maximum inlet 232 psi / 16 bar) with an inflation flow of 400 l/min on a 10 bar mains air supply.
A. Yes. The cabinet is IP44 rated with an IP65-rated electronic inflator unit, operating from -20°C to 70°C in humidity up to 95% RH non-condensing.
A. No — the D98 offers a built-in compressor option (5.5 or 10 bar), making it suitable for sites without mains compressed air.
A. Towers can be configured for free air or with coin (GBP/EUR), token and cashless payment mechanisms.
A. This model carries a 7.6 m / 25 ft air hose and a 4 m / 13 ft water hose with radiator filler, with short-stem twin hold-on standard and alternative tyre valve connectors available for all units.
A. Yes — stainless steel or painted casings, bespoke graphical/branded designs, alternative connectors and hose lengths, and screenwash options can all be specified from PCL's standard specification.
