Product Number: 02512

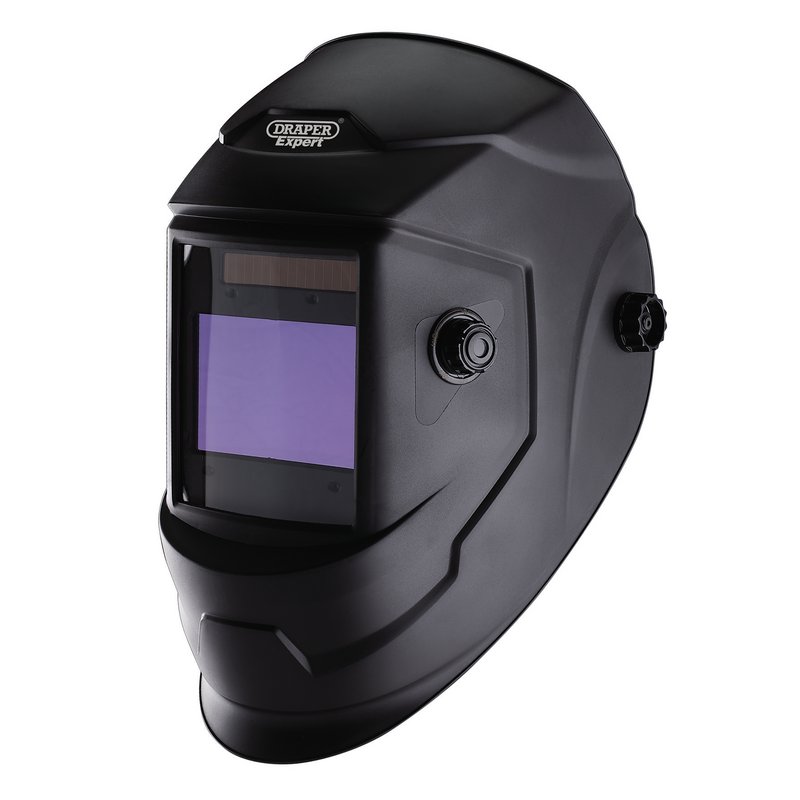

Welding safely depends on reliable, fast lens response — a helmet that reacts too slowly or lacks the correct shade range puts the operator at risk. The Draper Expert Auto-Darkening Welding Helmet (SKU 2512) addresses this directly: its lens switches from light to dark in just 1/10,000 of a second the moment the arc is struck, eliminating manual adjustment between passes and protecting the eyes consistently throughout the weld. The helmet covers shade levels 4, 5–9 and 9–13, making it suitable for TIG, MIG and ARC welding, plasma cutting and grinding via a dedicated grinding setting. Four ARC sensors drive the auto-darkening response, and a rotary dial on the control panel allows sensitivity adjustment. A stepless dark-to-light delay function gives the operator control over how quickly the lens returns to its lighter state between welds. Power is supplied by a combined solar cell and replaceable 600 mAh lithium-ion battery, supporting both fast switching and low-amperage sensitivity. The 100 x 67 mm viewing area provides clear sightlines across the weld zone, and the helmet operates across a temperature range of -5 to +55 °C. Total weight is 522 g. Fit is managed through an adjustable headband with a knob control, enabling the helmet to be positioned optimally for extended periods of workshop use. The helmet is supplied as a single unit and is part of the Draper Expert range.
This auto-darkening welding helmet instantly switches on when the arc is struck and rapidly changes to the required amount of shade. The shade coverage includes 4, 5-9 and 9-13. The sensitivity is adjustable using the control panel and there is also a dark to light delay (stepless) function. The helmet is powered by a solar cell and lithium-ion battery (replaceable) for fast switching and low amp sensitivity. The 100 x 67mm viewing area provides decent visibility of the weld zone. It is suitable for TIG, MIG and ARC welding, plasma cutting and also grinding using the dedicated setting. The comfortable headband is adjustable using the knob to enable an optimal fit.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Suitability | TIG, MIG, ARC, grinding and plasma cutting |
|---|---|
| Lens size | 100 x 67mm |
| Shade levels | 4, 5–9 and 9–13 |
| Lens switching time | 1/10,000s |
| ARC sensors | 4 |
| Sensitivity control | Rotary dial |
| Operating temperature | -5 to +55℃ |
| Power supply | Li-ion battery and solar |
| Battery | 600mAh Li-ion (replaceable) |
| Weight | 522g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 2517 Storm Force® Fixed Shade Auto Darkening Welding Helmet
£35.24
£34.55
2% OFF
|
Sealey PWH601 Auto Darkening Welding Helmet Shade 9-13
£73.88
£72.43
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02516 | 02517 | SSP19CO | PWH1 | PWH601 | S01001 |
A. The helmet provides shade levels 4, 5–9 and 9–13, as confirmed in the product specifications.
A. The lens switches from light to dark in 1/10,000 of a second upon arc activation.
A. It is suitable for TIG, MIG and ARC welding, plasma cutting, and grinding via a dedicated grinding setting.
A. The helmet is powered by a combined solar cell and a replaceable 600 mAh lithium-ion battery, supporting fast switching and low-amperage sensitivity.
A. Yes — sensitivity is adjusted via a rotary dial on the control panel, and a stepless dark-to-light delay function allows control over how quickly the lens lightens between welds.
A. The viewing area measures 100 x 67 mm. The helmet operates between -5 °C and +55 °C.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
