Product Number: 02516

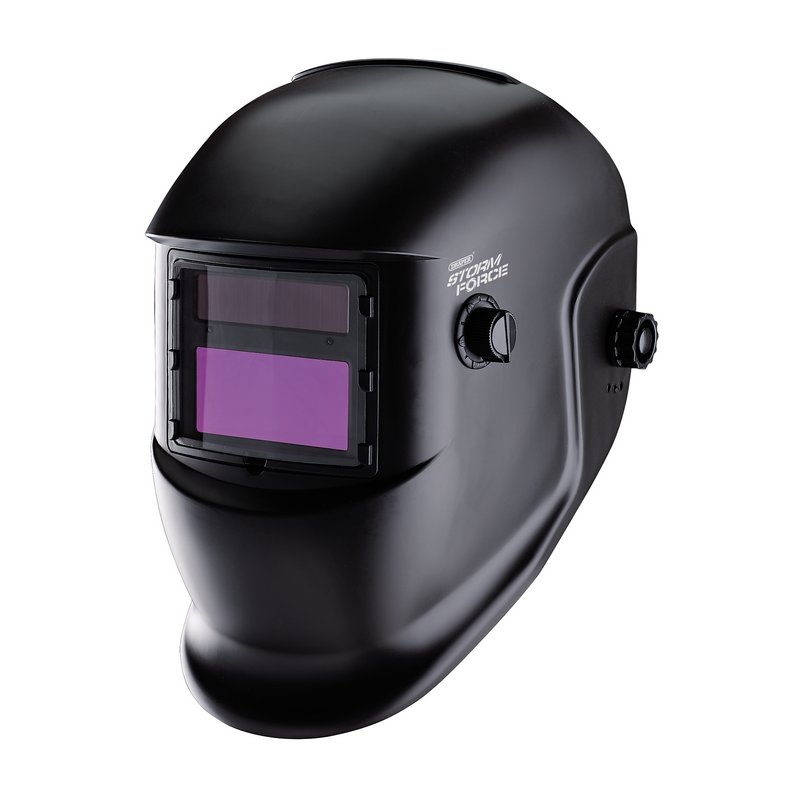

Welding in variable conditions demands eye protection that reacts faster than the human eye — the Draper Storm Force Auto-Darkening Welding Helmet addresses this by switching on the instant an arc is struck and transitioning to the appropriate shade level in 3/10,000 of a second. Two ARC sensors detect the arc reliably, triggering the automatic lens response without manual intervention. The lens offers shade levels of 4 and 9–13, with the dark shade, sensitivity and delay time all adjustable via rotary control knobs, allowing the welder to dial in precise settings to suit the application and arc intensity. The 92.5 x 42.5 mm viewing area provides clear visibility of the weld zone throughout the process. Power is supplied by a combination of a solar cell and a replaceable 600 mAh lithium-ion battery, operating across a temperature range of -5 to +55 °C. The helmet weighs 440 g and features a headband adjustable via a knob to achieve an optimal, comfortable fit during extended use. The helmet is suitable for TIG, MIG and arc welding, plasma cutting and grinding, making it a versatile choice for professional workshop and fabrication environments. Supplied as one complete helmet unit.
This auto-darkening welding helmet instantly switches on when the arc is struck and rapidly changes to 9-13 shade level. The dark shade, sensitivity and delay time are adjustable using control knobs. The helmet is powered by a solar cell and a lithium-ion battery (replaceable). The 92.5 x 42.5mm viewing area provides very good visibility of the weld zone. It is suitable for TIG, MIG and arc welding, plasma cutting and also grinding. The comfortable headband is adjustable using the knob to enable an optimal fit.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Suitability | TIG, MIG, arc, grinding and plasma cutting |
|---|---|
| Lens size | 92.5 x 42.5mm |
| Shade levels | 4 and 9-13 |
| Lens switching time | 3/10,000s |
| ARC sensors | 2 |
| Sensitivity control | Rotary dial |
| Operating temperature | -5 to +55℃ |
| Power supply | Li-ion battery and solar |
| Battery | 600mAh Li-ion (replaceable) |
| Weight | 440g |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 2517 Storm Force® Fixed Shade Auto Darkening Welding Helmet
£35.24
£34.55
2% OFF
|
Draper 2512 Expert Auto-Darkening Multi-Use Welding Helmet
£65.11
£63.83
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02517 | 02512 | SSP19CO | S01000 | S01001 | 201/10 |
A. The helmet provides a fixed light shade of 4 and an adjustable dark shade range of 9–13. The dark shade level is set using a rotary control knob on the helmet.
A. The lens switching time is 3/10,000 of a second, triggered automatically by two ARC sensors the moment the arc is detected.
A. The helmet is suitable for TIG, MIG and arc welding, plasma cutting and grinding.
A. It is powered by a combination of a solar cell and a replaceable 600 mAh lithium-ion battery.
A. Yes. The dark shade level, sensitivity and delay time are all adjustable using the rotary control knobs on the helmet.
A. The helmet is rated to operate between -5 °C and +55 °C.
A. Standard UK mainland delivery is 3–5 working days.
