Product Number: 02518

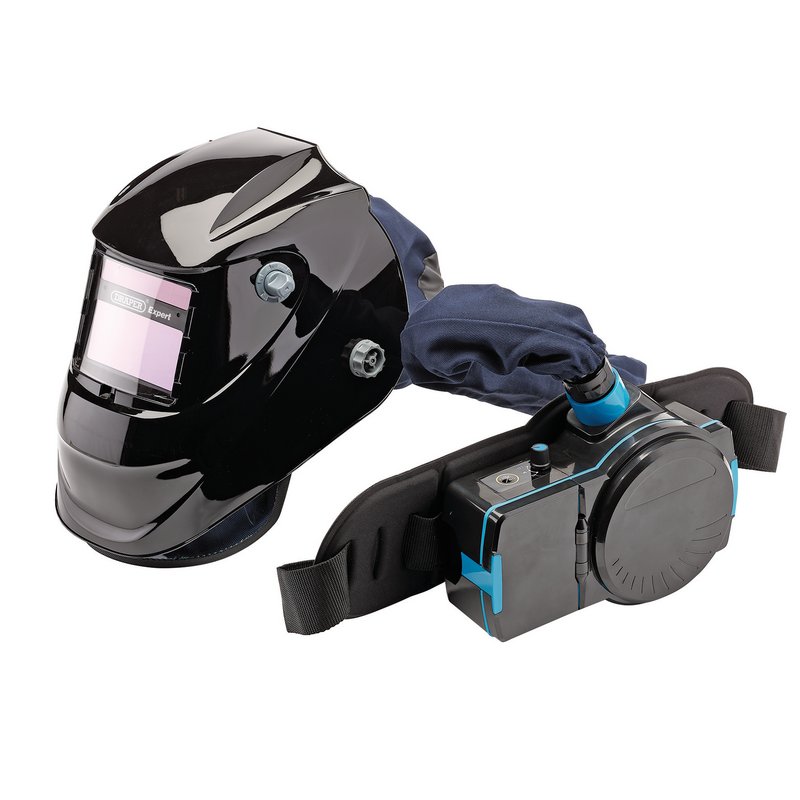

Maintaining respiratory and eye health in demanding welding environments requires equipment that combines effective filtration with reliable arc protection. The Draper Expert Air-Fed PAPR Auto-Darkening Welding Helmet (2518) addresses both requirements in a single unit, delivering powered air-purifying respiratory protection alongside fully integrated auto-darkening optics. The helmet provides electronically controlled airflow across three selectable levels — 150 L/min, 180 L/min and 220 L/min — adjusted via a dual airflow knob offering high, medium and low settings. An on/off button controls the system, and a dedicated alarm warns the wearer of low airflow or low battery, supporting safe operation. The fire-retardant air hose incorporates a P3 filter for effective airborne particulate protection. The auto-darkening lens activates automatically when the arc is struck, switching at 1/25,000 s across shade levels 4 and 9–13. Two ARC sensors drive the response, and the 98 × 48 mm viewing area provides clear visibility of the weld zone. Power comes from a combination of solar cell and a replaceable 12 V 4.3 Ah lithium-ion battery, enabling fast switching and low amp sensitivity. The helmet is suitable for TIG, MIG and arc welding as well as grinding. The operating temperature range spans -10 °C to +55 °C. An adjustable knob headband allows the wearer to achieve a comfortable, secure fit. Total weight is 2.31 kg.
This air-fed powered air-purifying respiratory (PAPR) welding helmet is ideal for keeping lungs and eyes healthy in a challenging work environment. It offers electronically controlled airflow with three levels: 150L/min, 180L/min and 220L/min. There is a dual airflow adjustment knob – high, medium and low – and an on/off button. For safety, there is an alarm to warn of low airflow and low battery. The air hose is fire retardant and includes a P3 filter. This versatile helmet is auto-darkening, automatically switching on when the arc is struck and rapidly changing to the required amount of shade. The shade coverage includes 4 and 9-13. The helmet is powered by a solar cell and a lithium-ion battery (replaceable) for fast switching and low amp sensitivity. The 98 x 48mm viewing area provides good visibility of the weld zone. It is suitable for TIG, MIG and arc welding and also grinding. The comfortable headband is adjustable using the knob to enable an optimal fit.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Suitability | TIG, MIG, arc and grinding |
|---|---|
| Airflow rates | 150L/min, 180L/min and 220L/min |
| Lens size | 98 x 48mm |
| Shade levels | 4 and 9-13 |
| Lens switching time | 1/25,000s |
| ARC sensors | 2 |
| Operating temperature | -10 to +55℃ |
| Power supply | Li-ion battery and solar |
| Battery | 12V 4.3Ah Li-ion (replaceable) |
| Weight | 2.31kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
04876 | Welding Air Filter for use with Welding Helmet - Stock No. 02518 - 04876, Draper | 1 Unit |
£20.91
£20.50
|
Add |
|
04877 | Draper Battery for use with Welding Helmet - Stock No. 02518 | 1 Unit |
£99.12
£97.18
|
Add |
|
04881 | Draper Visor for use with Welding Helmet - Stock No. 02518 | 1 Unit |
£24.83
£24.34
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey HVCOM3 EV/Hybrid Safety Kit - Arc Shield, Gloves & Mat
£306.23
£300.11
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 04896 | 04881 | 201/10 | HVCOM3 | SEP4 |
| Type | Helmet | Helmet | Goggles | Mask | |
| Brand | Worksafe | Sealey | |||
| Model No | 201/10 | HVCOM3 | |||
A. The helmet is suitable for TIG, MIG and arc welding, and also for grinding.
A. The helmet provides electronically controlled airflow at three levels: 150 L/min, 180 L/min and 220 L/min, selectable via a dual adjustment knob with high, medium and low settings.
A. The auto-darkening lens covers shade levels 4 and 9–13, switching automatically when the arc is struck.
A. The lens switching time is 1/25,000 s.
A. The air hose is fire retardant and includes a P3 filter for airborne particulate protection.
A. The helmet is powered by a combination of a solar cell and a 12 V 4.3 Ah lithium-ion battery. The lithium-ion battery is replaceable.
A. Yes. An alarm warns the wearer of both low airflow and low battery conditions.
