Product Number: 03696
Variations

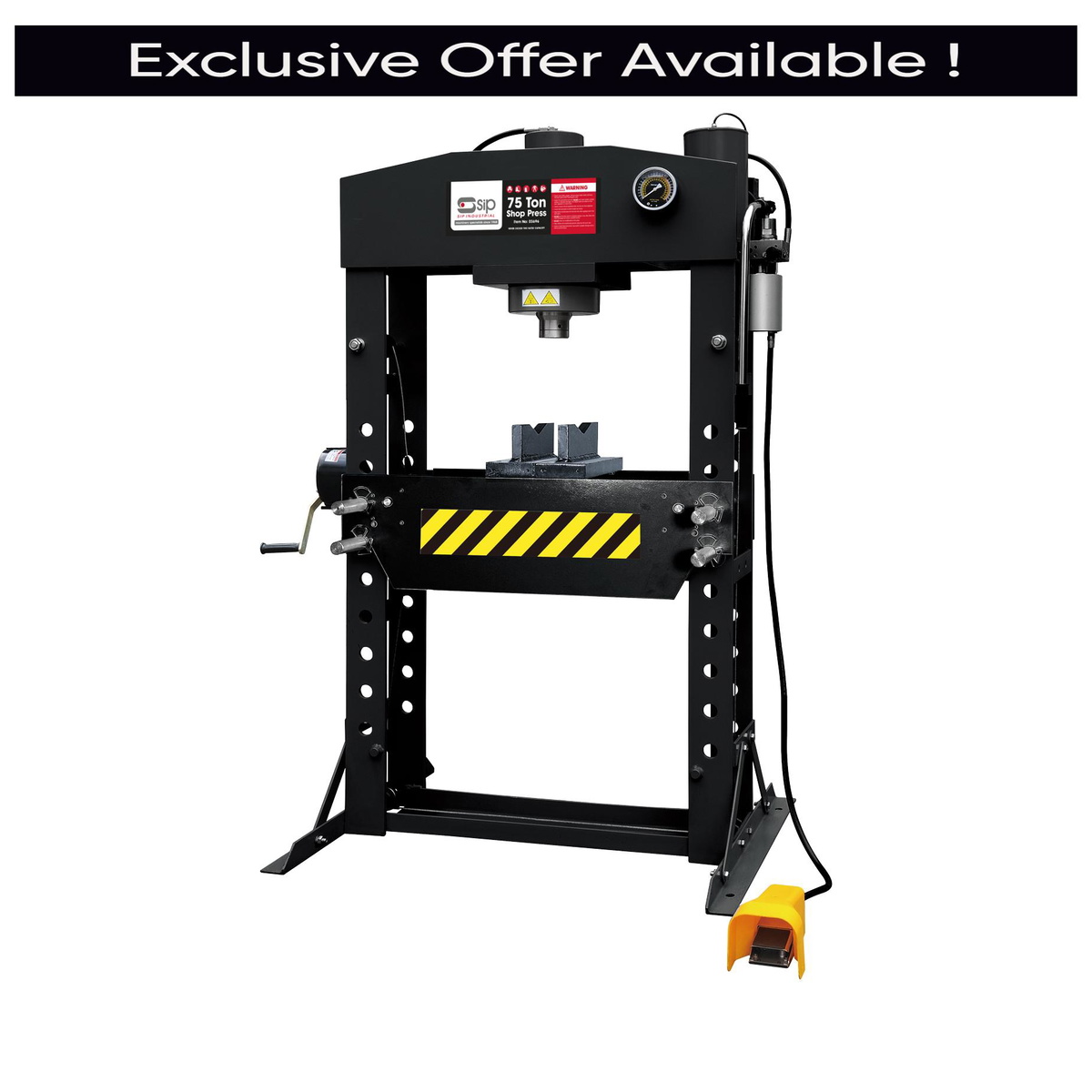

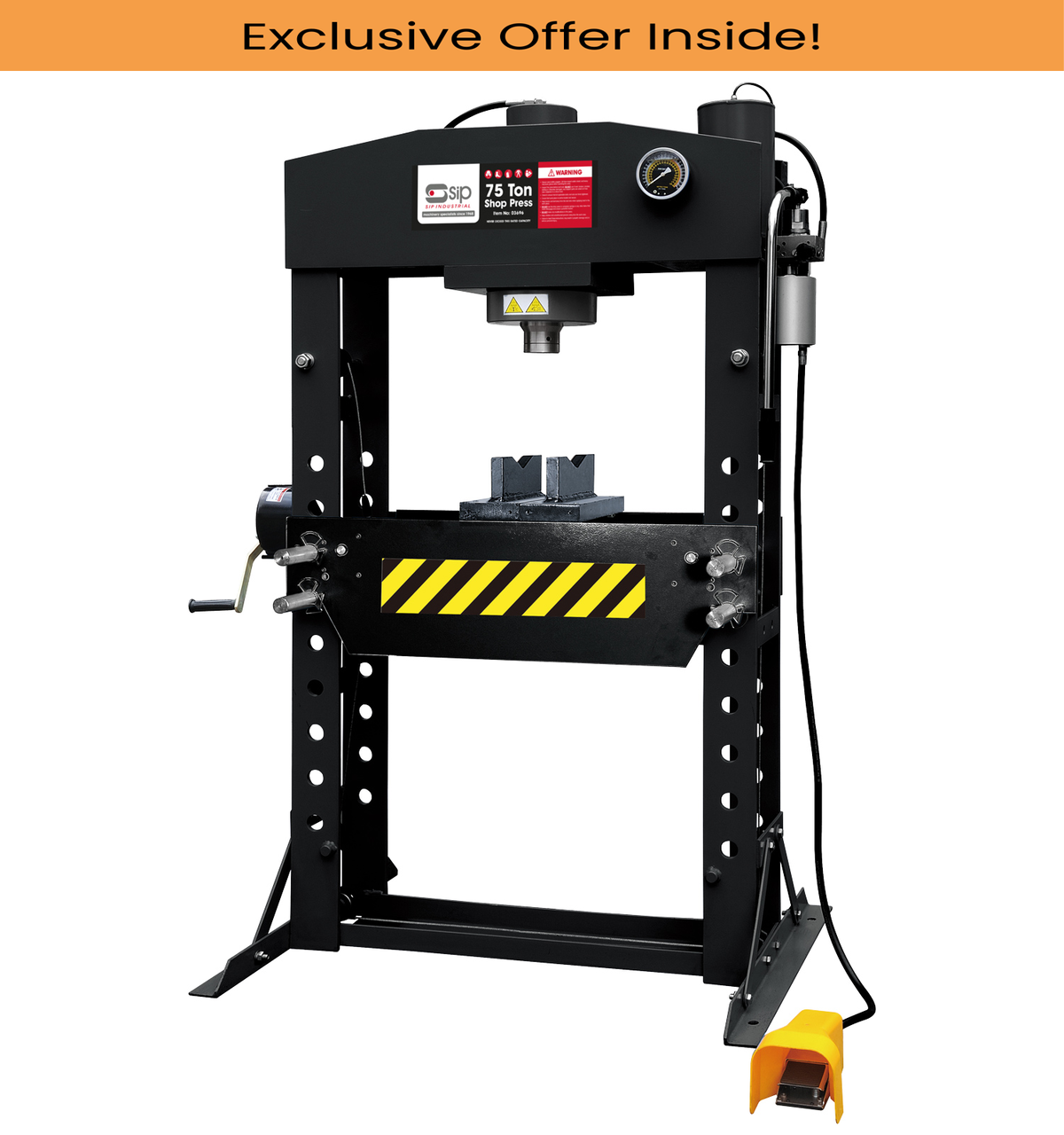

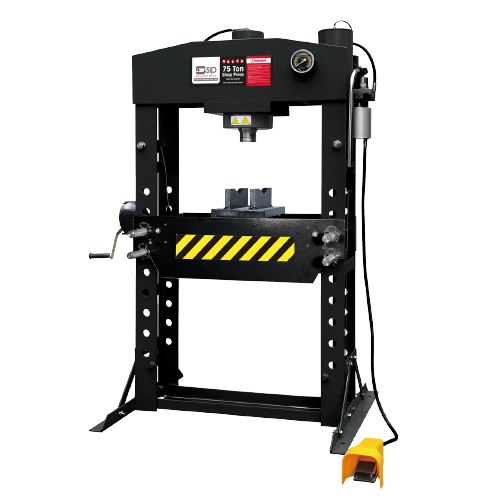

The SIP 03696 is a 75-tonne capacity pneumatically-assisted shop floor press designed for a wide variety of demanding garage and workshop applications. Built around a heavy-duty steel frame engineered for exceptional durability, it delivers reliable pressing performance across a fully adjustable workbed, making it equally suited to production environments and busy trade workshops.
The press handles an extensive range of tasks including the pressing of bearings, bushings and sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheet and plate materials, and forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys, covering the most common and repetitive workshop press operations.

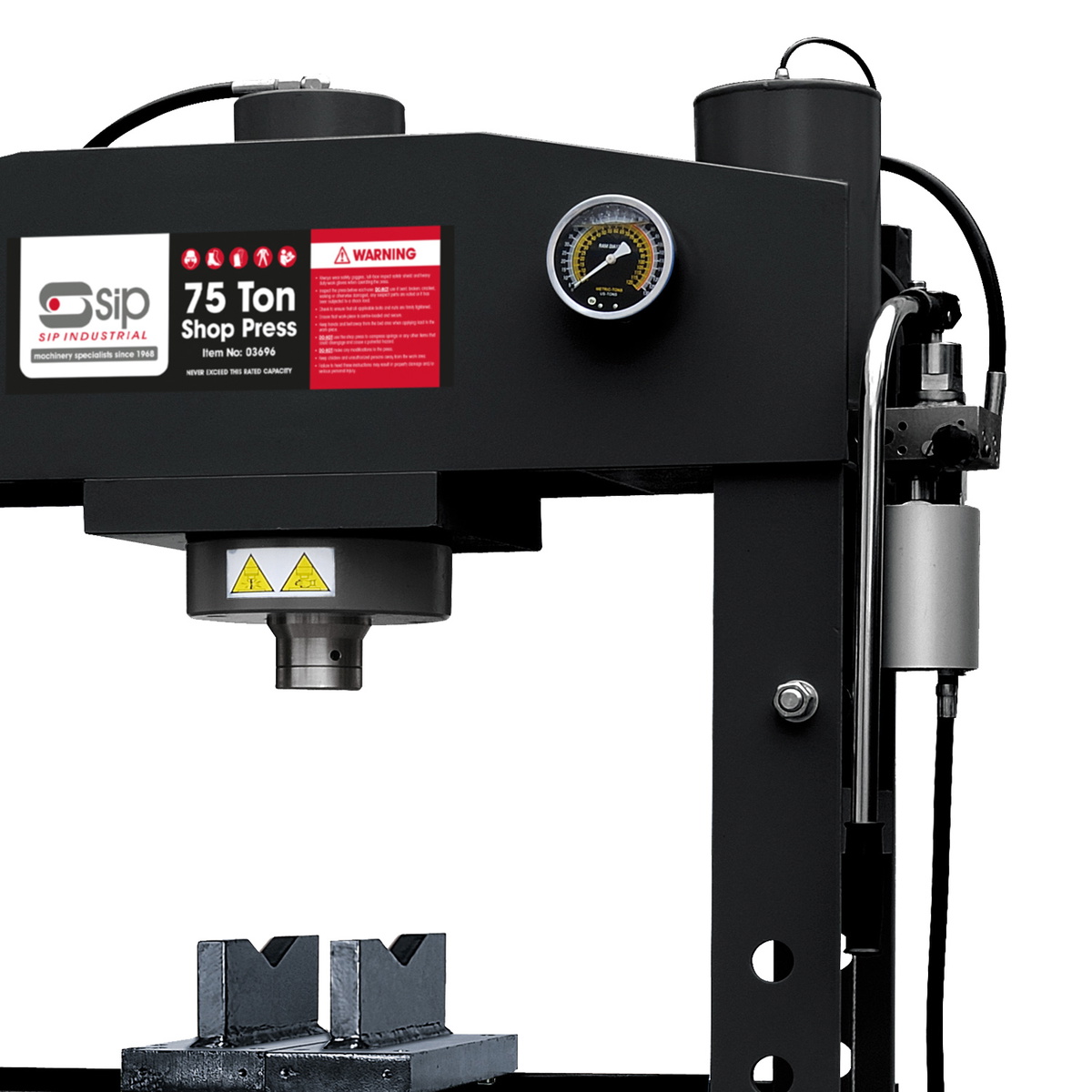

A glycerine-filled manometer is fitted to the gauge assembly, protecting it against adverse conditions and corrosion whilst providing higher-accuracy pressure readings during operation. The fully adjustable workbed accommodates a working range of 160 mm to 880 mm, supported by a 250 mm ram stroke. Overall machine dimensions are 1,940 mm (height) × 1,150 mm (width) × 800 mm (depth), with a bed width of 800 mm — dimensions that confirm this as a full-footprint floor-standing unit.
The SIP 03696 is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 75 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed. This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys. A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03696 |
|---|---|
| Press Capacity | 75 TON |
| Press Type | FLOOR |
| Press Operation | Pneumatic |
| Working Range | 160mm - 880mm |
| Press Height | 1940mm |
| Press Width | 1150mm |
| Press Depth | 800mm |
| Ram Stroke | 250mm |
| Bed Width | 800mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

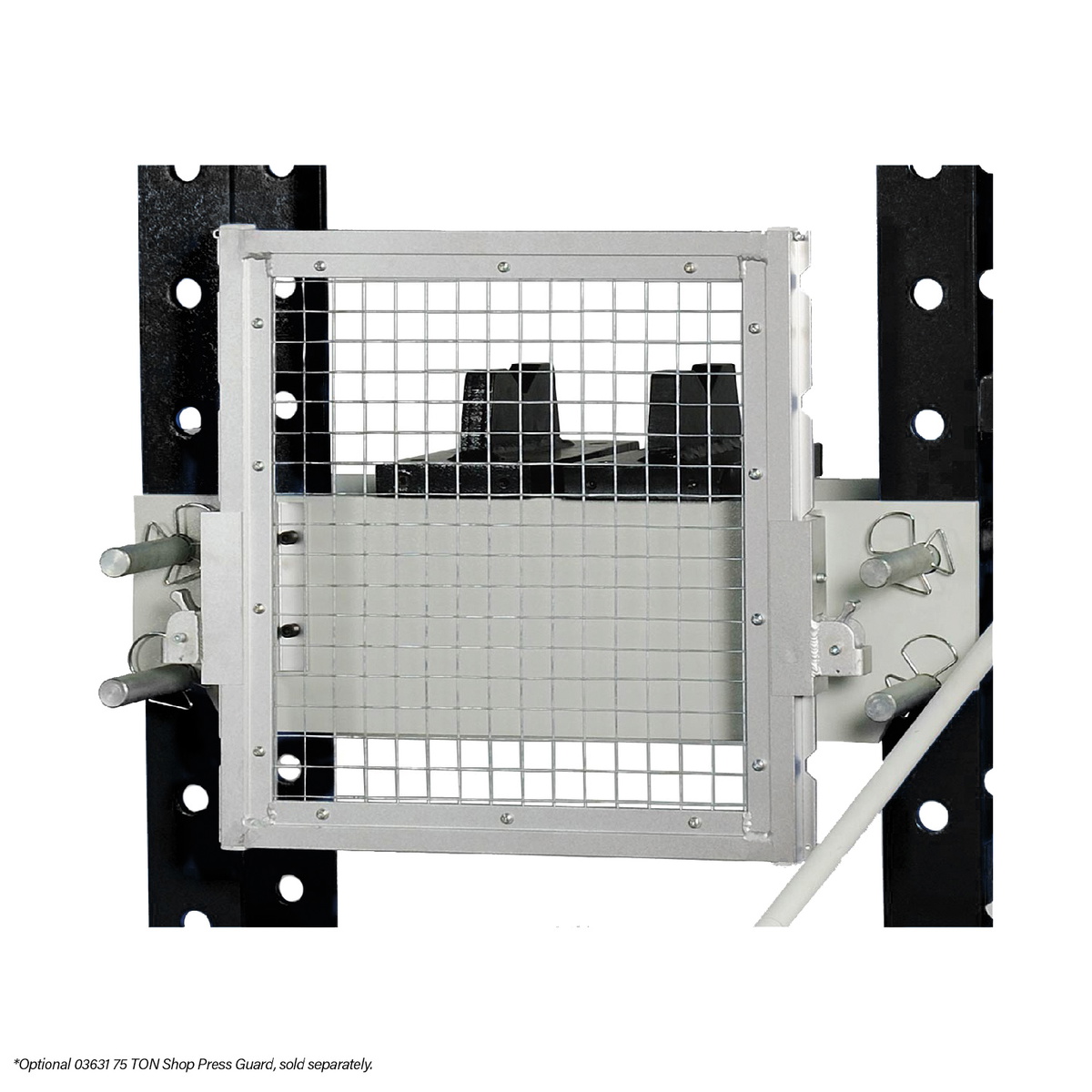

03631 | SIP 03631 75 Ton Shop Press Guard | 1 Unit |
£146.04
£143.18
|
Add |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03691 45 Tonne Manual & Pneumatic Shop Press
£1,933.18
£1,895.27
2% OFF
Free delivery in Channel Island
|
SIP Combo03650 10 Tonne Shop Bench Press + 1ltr Advanced Hydraulic Oil (combo)
£307.73
£301.70
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 03689 | 03650 | 03691 | Combo03650 |
| Length (mm) | 770 | 340 | 159 | 340 |
| Ram Stroke | 185mm | 190mm | ||
| Weight (kg) | 95 | |||
A. The SIP 03696 has a rated press capacity of 75 tonnes, delivered via pneumatically-assisted operation.
A. The working range is 160 mm to 880 mm, with a ram stroke of 250 mm and a bed width of 800 mm.
A. The SIP 03696 uses pneumatically-assisted press operation, making it a pneumatic floor-standing press.
A. It is suitable for pressing bearings, bushings and sleeves; bending or shaping metal rods and bars; straightening bent metal; bonding and riveting; punching holes in sheets and plates; forming sheet metal; and the removal and installation of bearings, wrist pins, universal joints and pulleys.
A. The press stands 1,940 mm high, 1,150 mm wide and 800 mm deep, with a bed width of 800 mm — confirming it as a full-size floor-standing unit requiring appropriate workshop floor space.
A. The glycerine-filled manometer protects the pressure gauge against adverse conditions and corrosion whilst providing higher-accuracy readings during pressing operations.
A. The SIP 03696 is covered by the SIP 2-Year Standard Silver Warranty.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
