Product Number: 03686

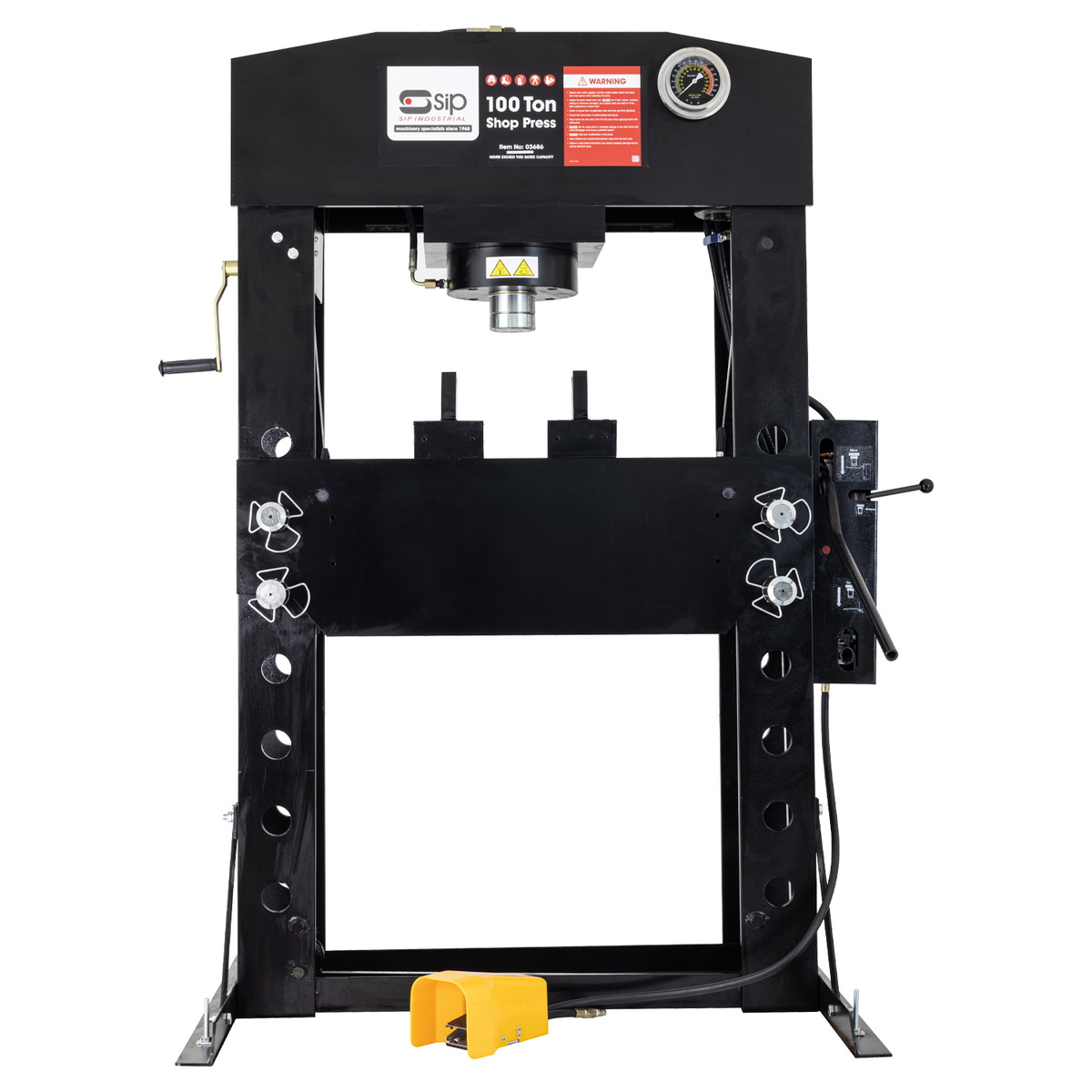

The SIP 03686 is a 100-tonne capacity pneumatically-assisted shop floor press designed for a wide variety of applications in garage and workshop environments. Built around a heavy-duty steel frame for exceptional durability, the press features a fully adjustable workbed that improves versatility across a broad range of pressing tasks.

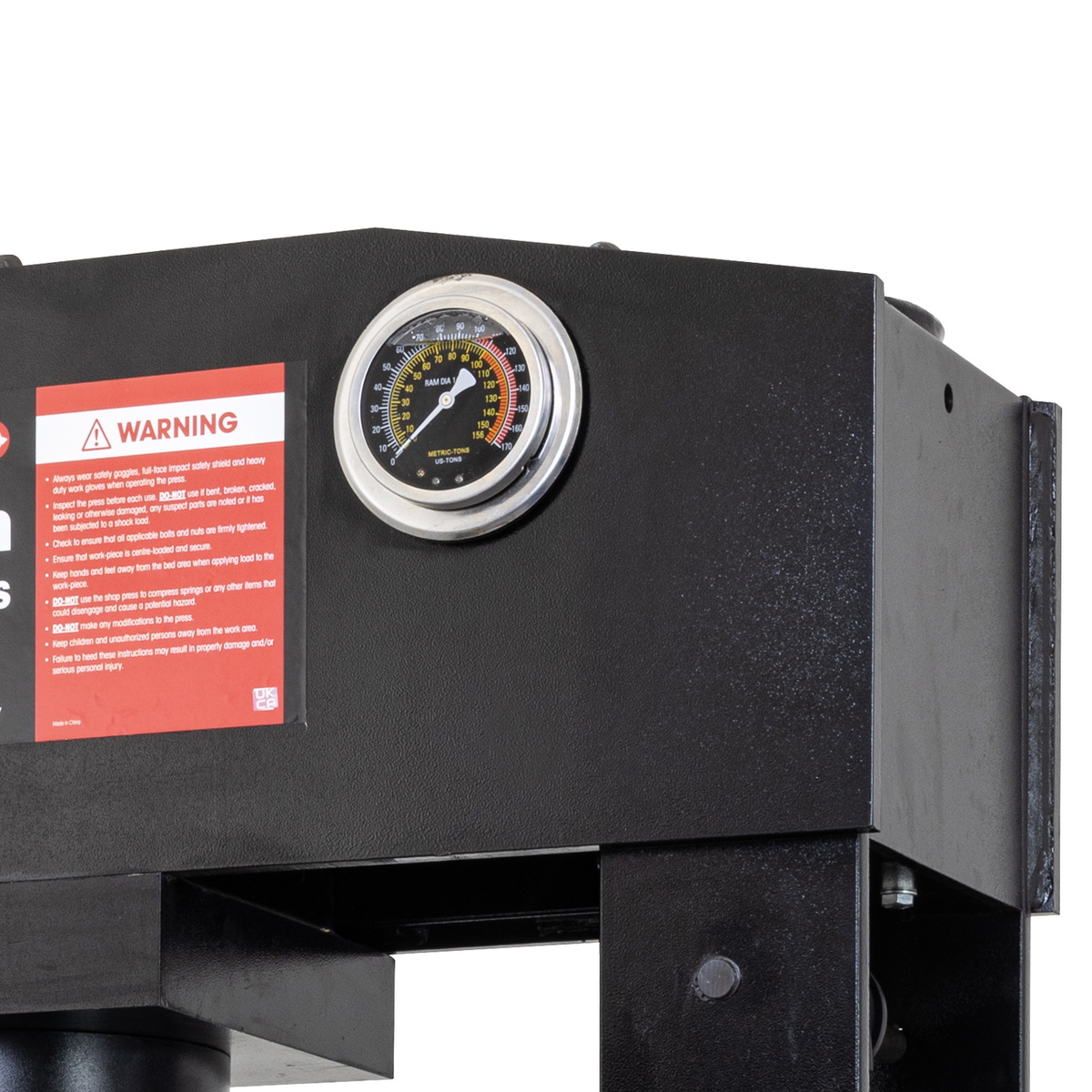

The press delivers pneumatically-assisted pressing force across a working range of 93mm to 993mm, with a 300mm ram stroke and a bed width of 787mm. Maximum air pressure is rated between 108psi (7.5 bar) and 123psi (8.5 bar), with a 1/4" NPT air inlet. A glycerine-filled manometer protects the gauge from damage and corrosion whilst providing higher-accuracy pressure readings — an important consideration in demanding workshop conditions.
This floor press is well suited to pressing bearings, bushings and sleeves; bending or shaping metal rods and bars; straightening bent metal; bonding and riveting; punching holes in sheets and plates; and forming sheet metal into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys, making it a capable and versatile asset for professional automotive and general engineering workshops.
The SIP 03686 is covered by the SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 100 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed. This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys. A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03686 |
|---|---|
| Press Capacity | 100 TON |
| Press Type | FLOOR |
| Press Operation | Pneumatic |
| Working Range | 93mm - 993mm |
| Max. Air Pressure | 108psi (7.5bar) - 123psi (8.5bar) |
| Air Inlet | 1/4" NPT |
| Ram Stroke | 300mm |
| Bed Width | 787mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Chicago Pneumatic CP86150, 15 Tonne Hydraulic Workshop Press
£682.88
£662.99
3% OFF
Free delivery in UK Mainland
|
Clarke CSA30 FPB 30 Tonne Hydraulic Floor Press
£1,152.49
£1,118.92
3% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 70540 | 8941086150 | 7614055 | 7615201 | 03695 | 03696 |
| Type | Floor Presse | Floor Presse | Floor Presse | Floor Presse | ||
| Capacity | 20 tonne | |||||
| Capacity (metric tons) | 20 | |||||
| Length (mm) | 105 | 160 | 151 | 160 | ||
| Ram Stroke | 150mm | 250mm | ||||
| Weight (kg) | 113.5 | |||||
A. The SIP 03686 has a maximum pressing capacity of 100 tonnes.
A. The SIP 03686 offers a working range of 93mm to 993mm and a ram stroke of 300mm, with a bed width of 787mm.
A. The press operates at a maximum air pressure of between 108psi (7.5 bar) and 123psi (8.5 bar), with a 1/4" NPT air inlet.
A. It is suitable for pressing bearings, bushings and sleeves; bending or shaping metal rods and bars; straightening bent metal; bonding and riveting; punching holes in sheets and plates; and forming sheet metal into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys.
A. The glycerine-filled manometer protects the gauge against damage and corrosion in demanding conditions whilst providing higher-accuracy pressure readings compared with a standard gauge.
A. Yes — the SIP 03686 features a fully adjustable workbed, which improves versatility across a wide range of pressing applications.
A. The SIP 03686 is covered by the SIP 2-Year Standard Silver Warranty.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.,
