Product Number: 03695

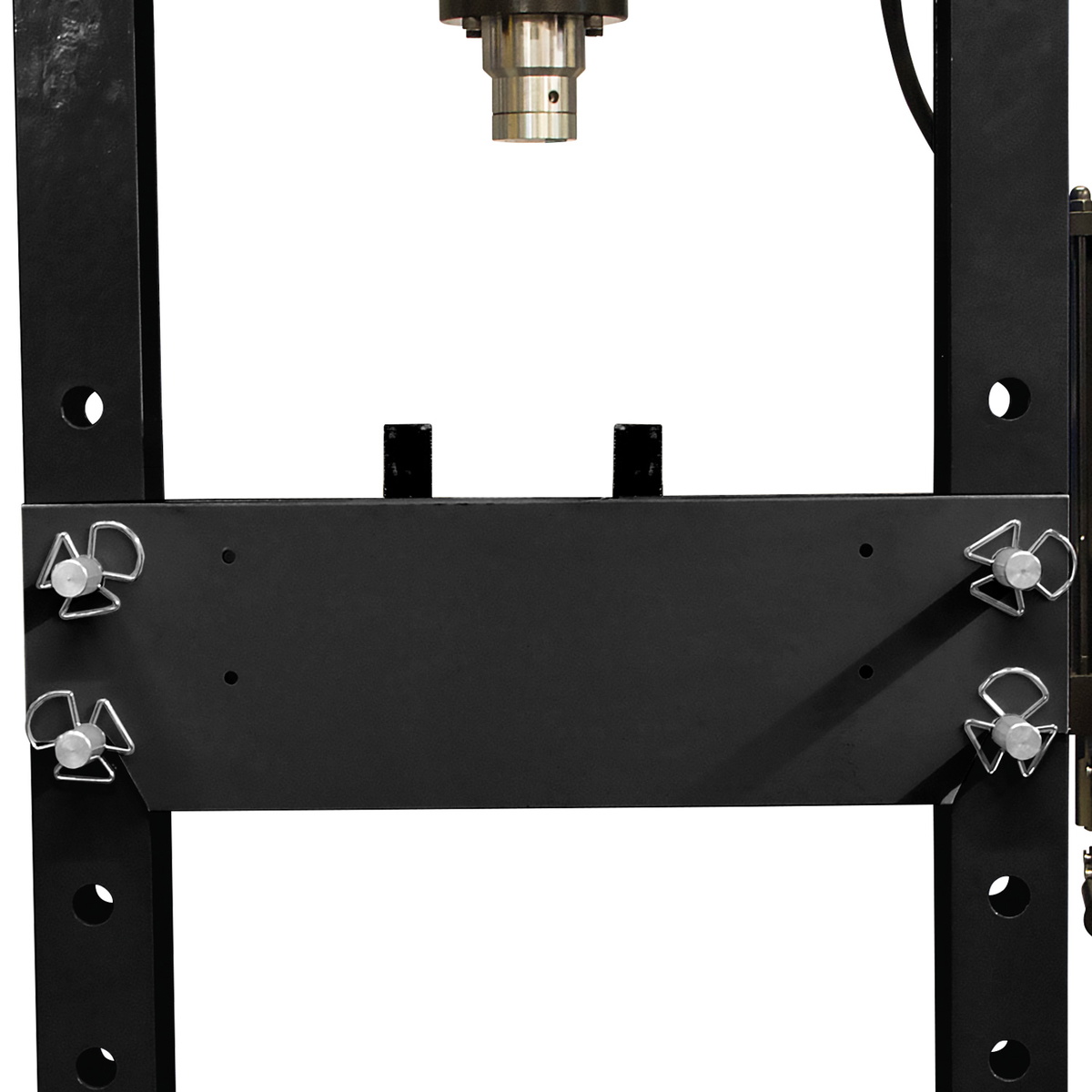

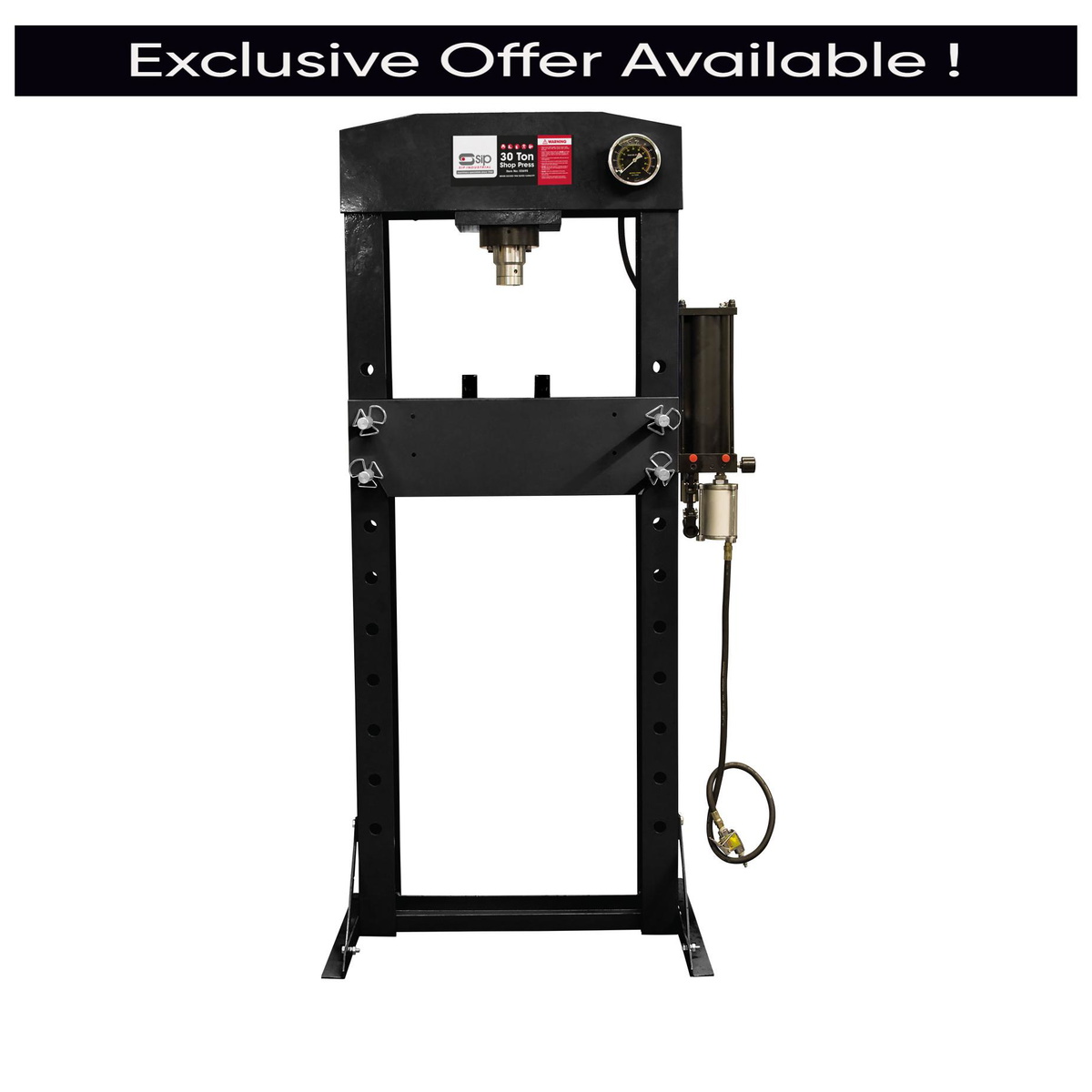

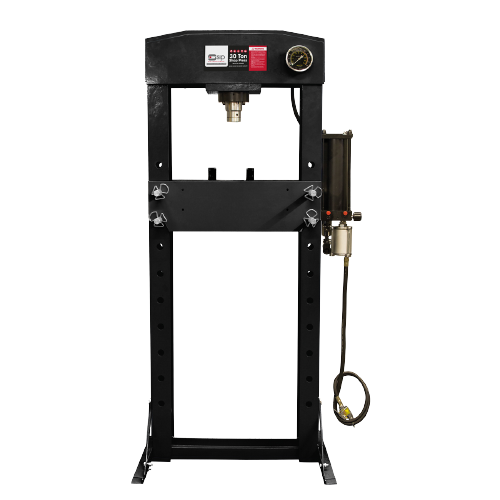

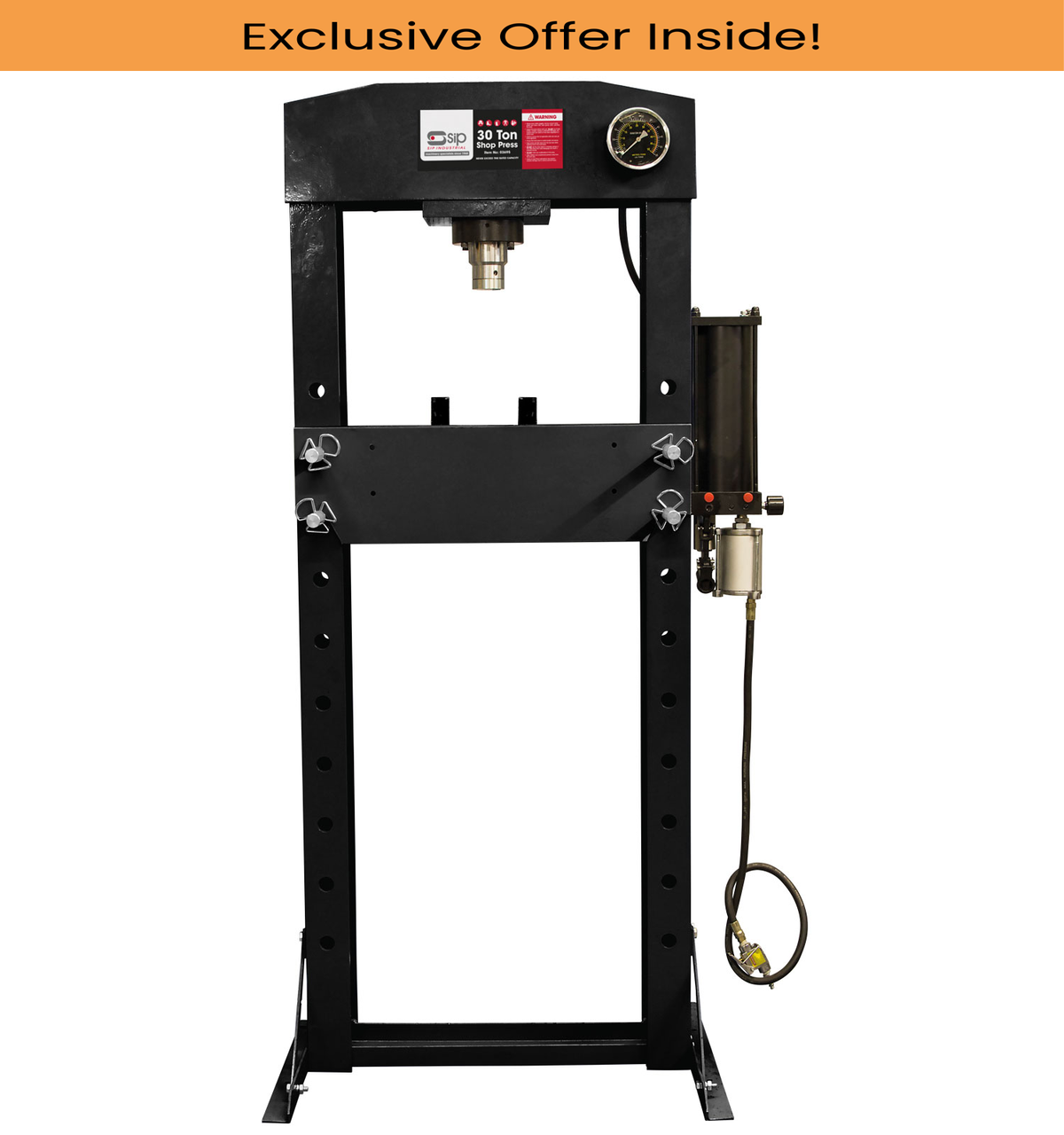

The SIP 03695 is a 30-tonne pneumatically-assisted shop floor press designed for a wide range of pressing, forming and straightening tasks in professional garage and workshop environments. With a heavy-duty steel frame, fully adjustable workbed and a working range spanning 151 mm to 1,031 mm, it delivers robust and exceptionally durable pressing performance across demanding daily use.
The press handles an extensive array of applications with confidence. It is well suited to pressing bearings, bushings and sleeves; bending or shaping metal rods and bars; straightening bent metal; bonding and riveting; punching holes in sheet and plate material; and forming sheet metal into various shapes. It is particularly effective for the removal and installation of bearings, wrist pins, universal joints and pulleys, making it a practical centrepiece for any automotive or engineering workshop.
A glycerine-filled manometer is fitted as standard, protecting the gauge from shock and vibration whilst delivering higher accuracy pressure readings and improved resistance to corrosion and adverse working conditions. The 150 mm ram stroke and 535 mm bed width provide a generous working envelope, whilst the overall frame dimensions of 1,830 mm height × 915 mm width × 700 mm depth give the press a stable, floor-standing footprint suited to fixed workshop installation.
This model forms part of SIP's hydraulic press range. Buyers requiring different capacity options should check the full SIP press line-up available on the site.
The SIP 03695 is supplied with a SIP 2-Year Standard Silver Warranty.
Additional Information:
The SIP 30 TON Shop Floor Press is perfect for a variety of applications in garage or workshop applications, offering pneumatically-assisted pressing performance within a robust and exceptionally durable frame, plus a fully adjustable workbed. This press can be used for pressing bearings, bushings or sleeves, bending or shaping metal rods and bars, straightening bent metal, bonding and riveting, punching holes in sheets and plates, or forming sheets into various shapes. It is particularly well-suited for the removal and installation of bearings, wrist pins, universal joints and pulleys. A glycerine-filled manometer helps protect the gauge and provides higher accuracy readings, plus durability against less-than-ideal conditions and corrosion.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03695 |
|---|---|
| Press Capacity | 30 TON |
| Press Type | FLOOR |
| Press Operation | Pneumatic |
| Working Range | 151mm - 1031mm |
| Press Height | 1830mm |
| Press Width | 915mm |
| Press Depth | 700mm |
| Ram Stroke | 150mm |
| Bed Width | 535mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03691 45 Tonne Manual & Pneumatic Shop Press
£1,955.97
£1,917.62
2% OFF
Free delivery in Channel Island
|
Chicago Pneumatic CP86150, 15 Tonne Hydraulic Workshop Press
£682.88
£662.99
3% OFF
Free delivery in UK Mainland
|
Clarke CSA30 FPB 30 Tonne Hydraulic Floor Press
£1,152.49
£1,118.92
3% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03691 | 70540 | 8941086150 | 7614055 | 7615201 | 03696 |
| Type | Floor Presse | Floor Presse | Floor Presse | Floor Presse | ||
| Capacity | 20 tonne | |||||
| Capacity (metric tons) | 20 | |||||
| Length (mm) | 159 | 105 | 160 | 160 | ||
| Ram Stroke | 190mm | 250mm | ||||
| Weight (kg) | 113.5 | |||||
A. The SIP 03695 has a press capacity of 30 tonnes, making it suitable for heavy-duty pressing, bearing removal and installation, and metalworking tasks in professional garage and workshop settings.
A. The working range is 151 mm to 1,031 mm with a 150 mm ram stroke, giving a versatile envelope for a wide variety of workpiece sizes.

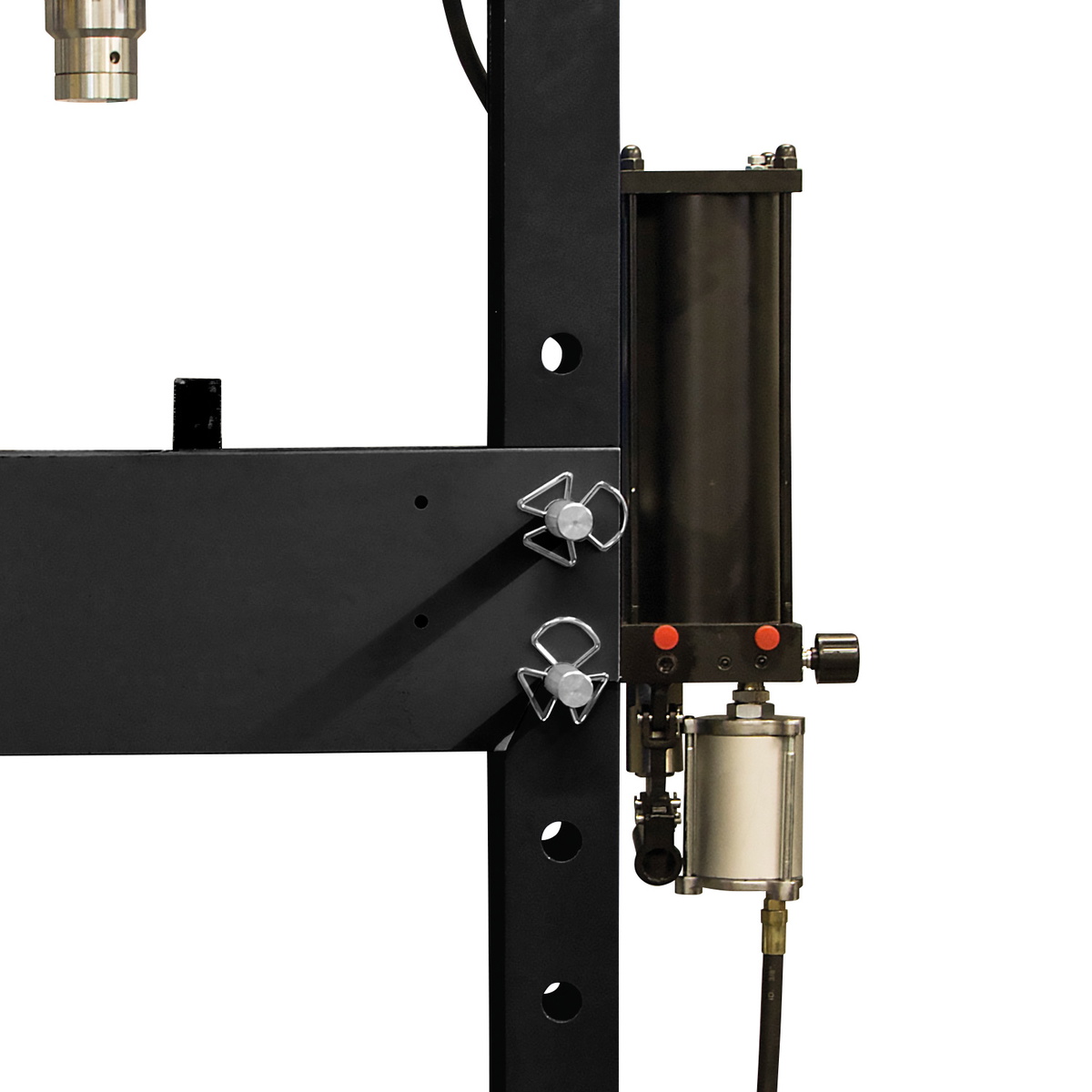

A. The SIP 03695 uses pneumatically-assisted operation, delivering controlled pressing force through a pneumatic system within its heavy-duty steel frame.
A. It is suitable for pressing bearings, bushings and sleeves; bending and shaping metal rods and bars; straightening bent metal; bonding and riveting; punching holes in sheets and plates; forming sheet metal; and the removal and installation of bearings, wrist pins, universal joints and pulleys.
A. The press stands 1,830 mm tall, 915 mm wide and 700 mm deep, with a bed width of 535 mm. It is a floor-standing unit intended for fixed workshop installation.

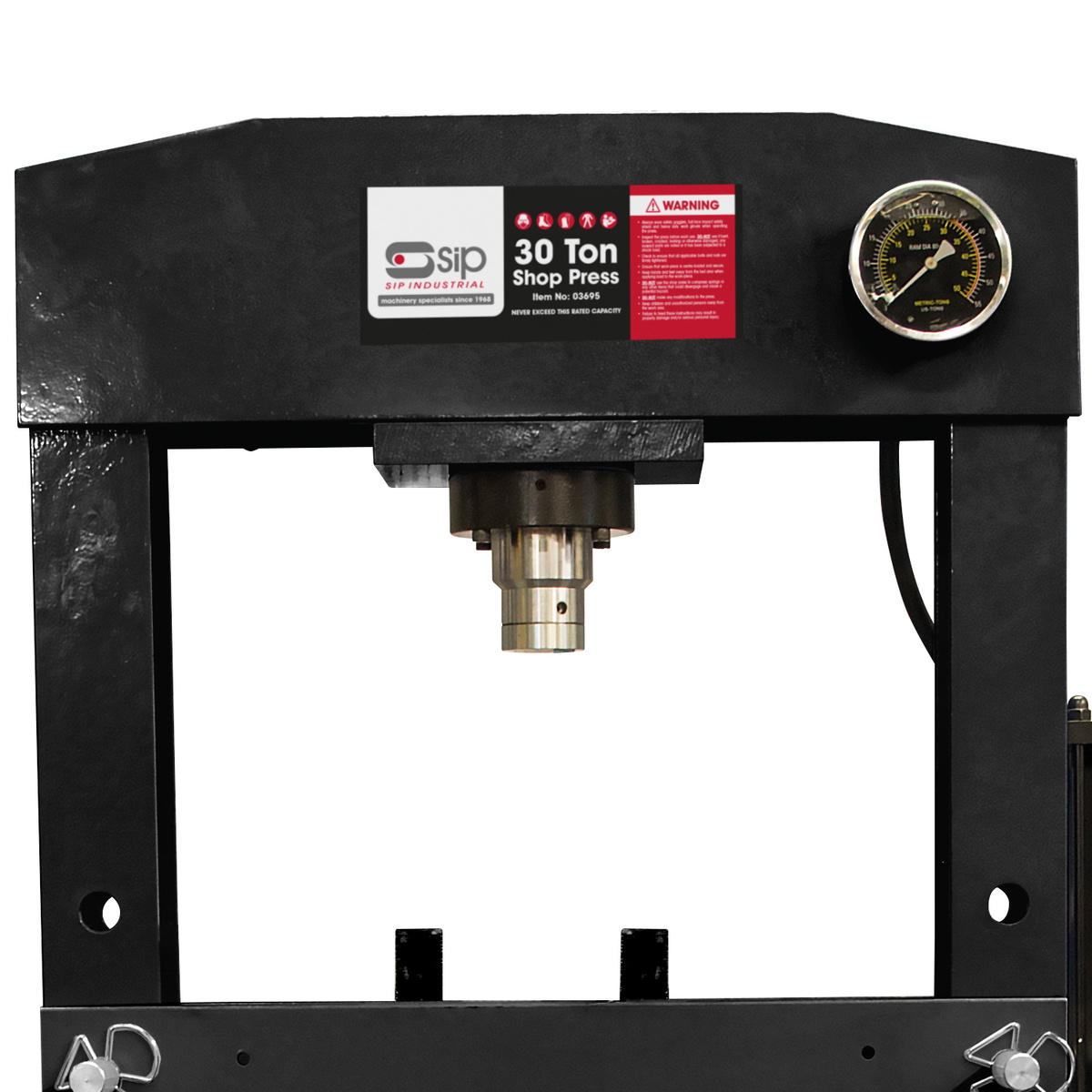

A. The glycerine-filled manometer protects the pressure gauge from shock, vibration and corrosion, whilst providing higher accuracy readings compared to a standard dry gauge — an important feature in demanding workshop conditions.
A. The SIP 03695 is covered by the SIP 2-Year Standard Silver Warranty.
A. We accept all major credit and debit cards, along with PayPal.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.,
