Product Number: SM02315

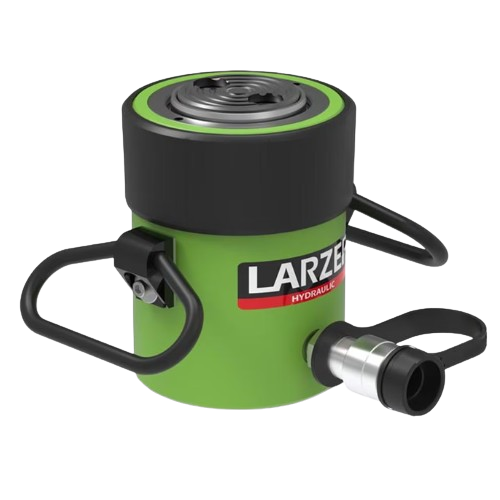

Larzep SM single-acting hydraulic cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of variants available, youre certain to find a cylinder perfectly matched to your applications. Larzep accessories can be attached to the collar threads, piston end threads, and base holes to give you many more possibilities. The pre-tensioned spring ensures maximum productivity by providing fast plunger retraction in any position. Inside each cylinder is a stop ring capable of withstanding the full capacity of the cylinder. Side-load resistance is improved by guiding bands, and cylinder life is extended by wiper seal.
Key Features
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity (kN) | 228 |
| Capacity (metric tons) | 23 |
| Stroke (mm) | 159 |
| Collapsed Height A (mm) | 277 |
| Extended Height B (mm) | 436 |
| Outside Diameter D (mm) | 85 |
| Return Type | Single Acting Spring Return |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 33 |
| Oil Capacity Advance (cm3) | 528 |
| Collapsed Height A with Optional Tilt Saddle (mm) | 295 |
| Optional Tilt Saddle | AZ0421 |
| Weight (kg) | 9.6 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
SM-Series_Cylinders_EN-GB.pdf
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SM02331 | SH03015 | SH01204 | SP01004 | TE01015 | DM00803 |
| Capacity (metric tons) | 23 | 30 | 12 | 10 | 10 | 8 |
| Maximum Operating Pressure (bar) | 700 | 700 | 700 | 700 | 700 | 700 |
| Return Type | Single Acting Spring Retur | Single Acting Spring Retur | Single Acting Spring Retur | Single Acting Load Return | Single Acting Spring Retur | Double Acting Hydraulic Re |
| Stroke (mm) | 310 | 150 | 40 | 40 | 150 | 28 |
| Weight (kg) | 14.8 | 21.2 | 4 | 2.3 | 14.9 | 4.2 |
