Product Number: SP01004
Variations

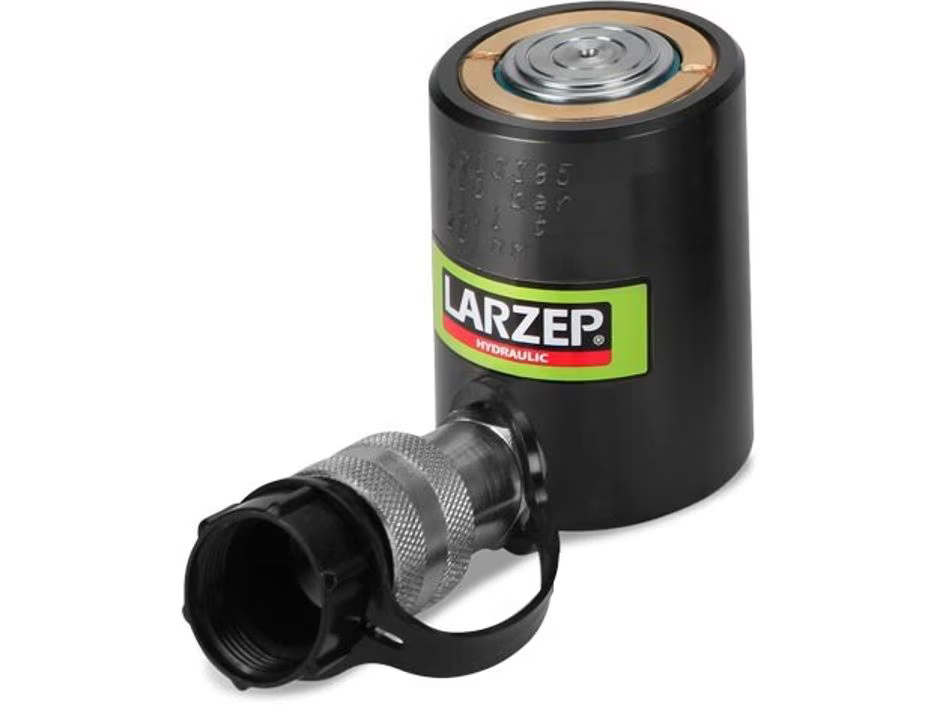

Model: SP01004 Series: Larzep Product Line: Industrial Tools. Larzep SM single-acting hydraulic cylinders are durable, reliable, and versatile, ideal for general-purpose industrial use. With a variety of options available, youll find a cylinder suited to your applications. Larzep accessories attach to collar threads, piston end threads, and base holes for flexible use. The pre-tensioned spring allows fast plunger retraction in any position. Inside each cylinder, a stop ring withstands full cylinder capacity. Side-load resistance is enhanced with guiding bands; the wiper seal extends cylinder life. Manufactured under UNE-EN ISO 9001:2015 standards. Product Features Industrial general-purpose hydraulic cylinder. Capacities from 5 to 220 tons; piston strokes up to 362 mm. Strong spring enables use in all positions. Collar threads, piston threads, and base holes support accessory mounting. Chrome-plated piston with wiper seal for durability. Heavy models feature carrying handles or eye bolts. Solid steel body for added strength. Stop ring designed for full cylinder capacity. Guiding bands improve side-load resistance. Compliant with ANSI-B30.1 / EN1494 standards. Hardened grooved saddles included. Female AZ3140 coupling with dust cap included. Load tested up to 125% of nominal capacity.
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity (kN) | 109 |
| Capacity (metric tons) | 10 |
| Stroke (mm) | 40 |
| Collapsed Height A (mm) | 89 |
| Extended Height B (mm) | 129 |
| Outside Diameter D (mm) | 66 |
| Return Type | Single Acting Load Return |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 16 |
| Oil Capacity Advance (cm3) | 64 |
| Collapsed Height A with Optional Tilt Saddle (mm) | - |
| Weight (kg) | 2.3 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
SP-SMP-Series_Low-Height_Cylinders_EN-GB.pdf
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | TE01015 | SH01204 | SM02315 | SH03015 |
| Capacity (metric tons) | 10 | 12 | 23 | 30 |
| Maximum Operating Pressure (bar) | 700 | 700 | 700 | 700 |
| Return Type | Single Acting Spring Retur | Single Acting Spring Retur | Single Acting Spring Retur | Single Acting Spring Retur |
| Stroke (mm) | 150 | 40 | 159 | 150 |
| Weight (kg) | 14.9 | 4 | 9.6 | 21.2 |
