Product Number: SMP10006

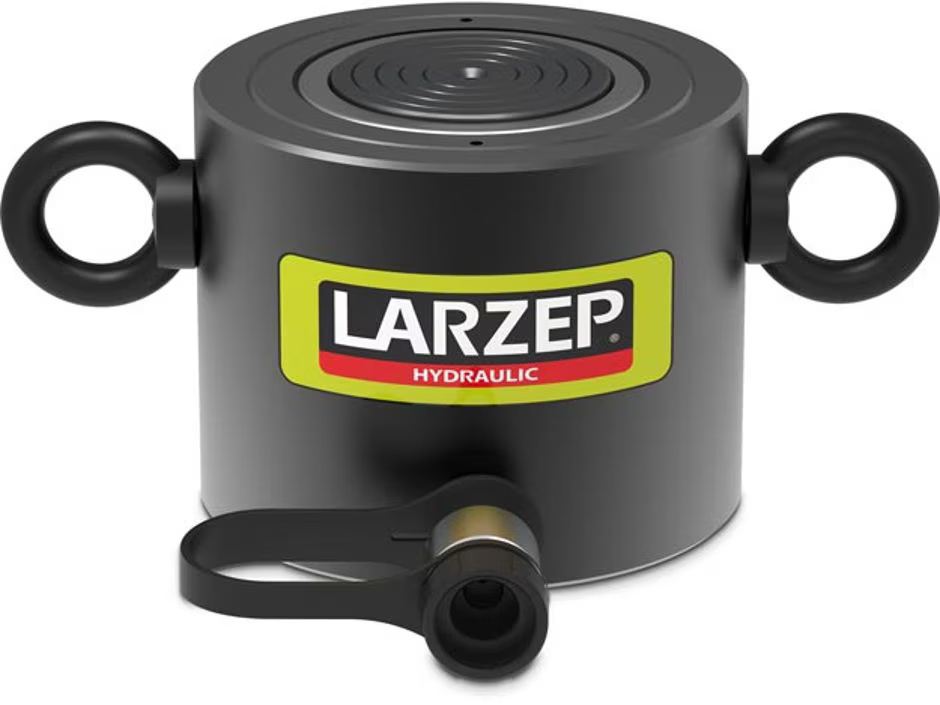

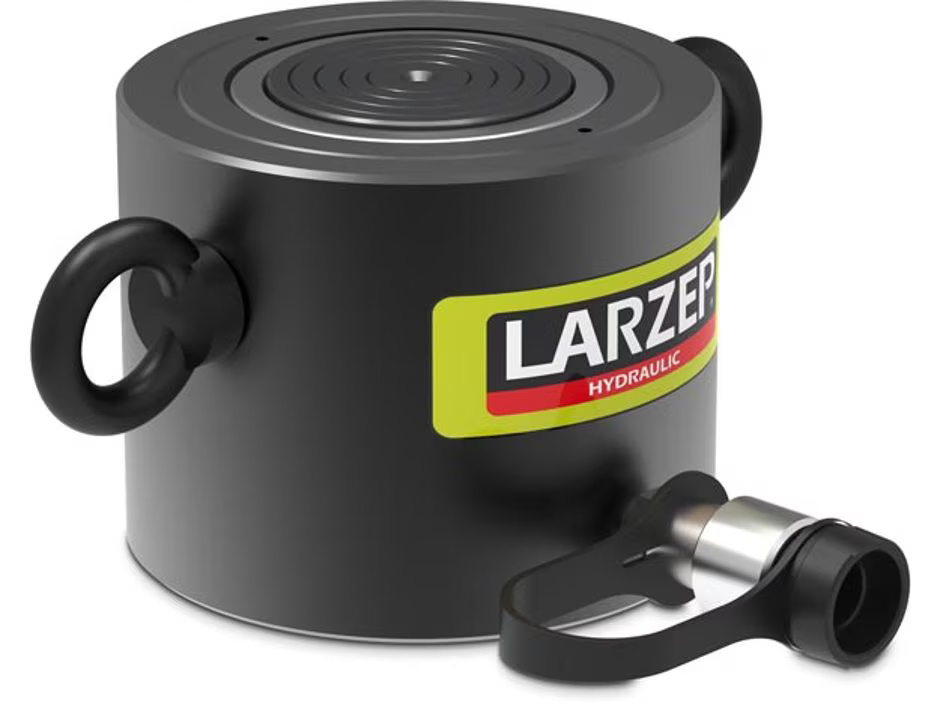

Model: SMP10006 Series: Larzep Product Line: Industrial Tools. SMP Low Height Hydraulic Cylinders are constructed with a shorter cylinder body than others in the Larzep range. They offer a much longer stroke than our smaller SX and SMX low profile models. These are single acting cylinders that include a pre-tensioned spring to return the plunger back to its lowest position. The body and saddle feature a nitrocarburized finish for exceptional durability. Optional tilting saddles can be mounted onto 30 to 100 ton models to resist side load. Each SMP Cylinder is manufactured using advanced technologies while following quality system processes meeting the standards of UNE-EN ISO 9001:2015. Product Features Capacities from 10 to 100 ton, strokes up to 150 mm. Single acting spring return configuration. Low profile for use in confined spaces: machinery positioning, tool fastening, load tests. Nitrocarburized finish on the body and saddle provide exceptional resistance to corrosion and wear. Optional tilting saddles can be mounted on 30 to 100 ton models. All units load tested under 125% of the nominal capacity. Guiding bands improve resistance against side-loads. Female AZ3140 coupling with rubber dust cap included.
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity (kN) | 911 |
| Capacity (metric tons) | 100 |
| Stroke (mm) | 60 |
| Collapsed Height A (mm) | 141 |
| Extended Height B (mm) | 201 |
| Outside Diameter D (mm) | 175 |
| Return Type | Single Acting Spring Return |
| Material | Steel |
| Cylinder Effective Area Advance (cm2) | 133 |
| Oil Capacity Advance (cm3) | 796 |
| Collapsed Height A with Optional Tilt Saddle (mm) | 174 |
| Optional Tilt Saddle | AZ0404 |
| Weight (kg) | 23.8 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
SP-SMP-Series_Low-Height_Cylinders_EN-GB.pdf
|
Open Now |
Standard Delivery: £3.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | SSX07516 | SX07516 | SH03015 | SM02315 |
| Capacity (metric tons) | 78 | 75 | 30 | 23 |
| Maximum Operating Pressure (bar) | 700 | 700 | 700 | 700 |
| Return Type | Single Acting Spring Retur | Single Acting Load Return | Single Acting Spring Retur | Single Acting Spring Retur |
| Stroke (mm) | 16 | 16 | 150 | 159 |
| Weight (kg) | 11.3 | 11 | 21.2 | 9.6 |
