Product Number: SM94
Variations

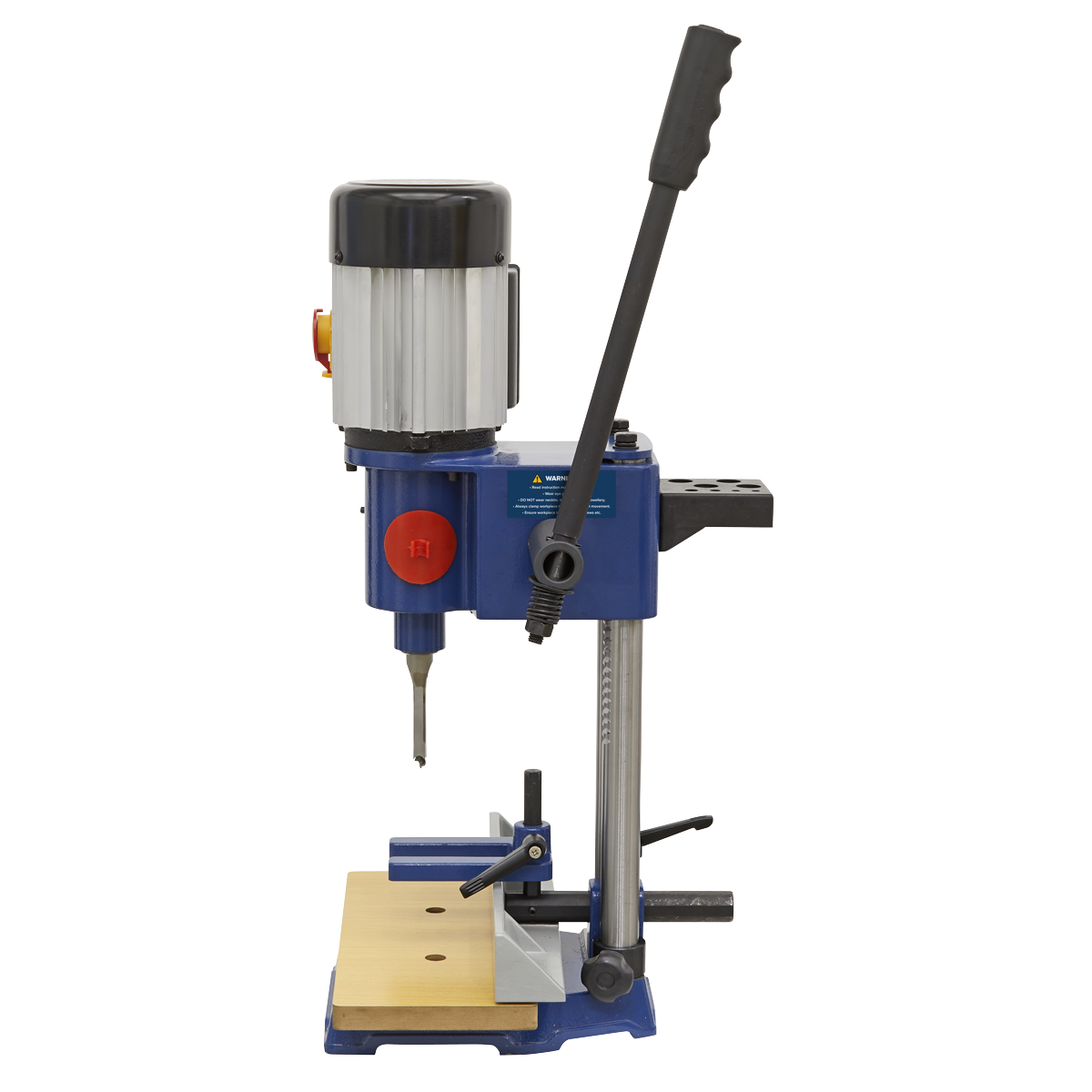

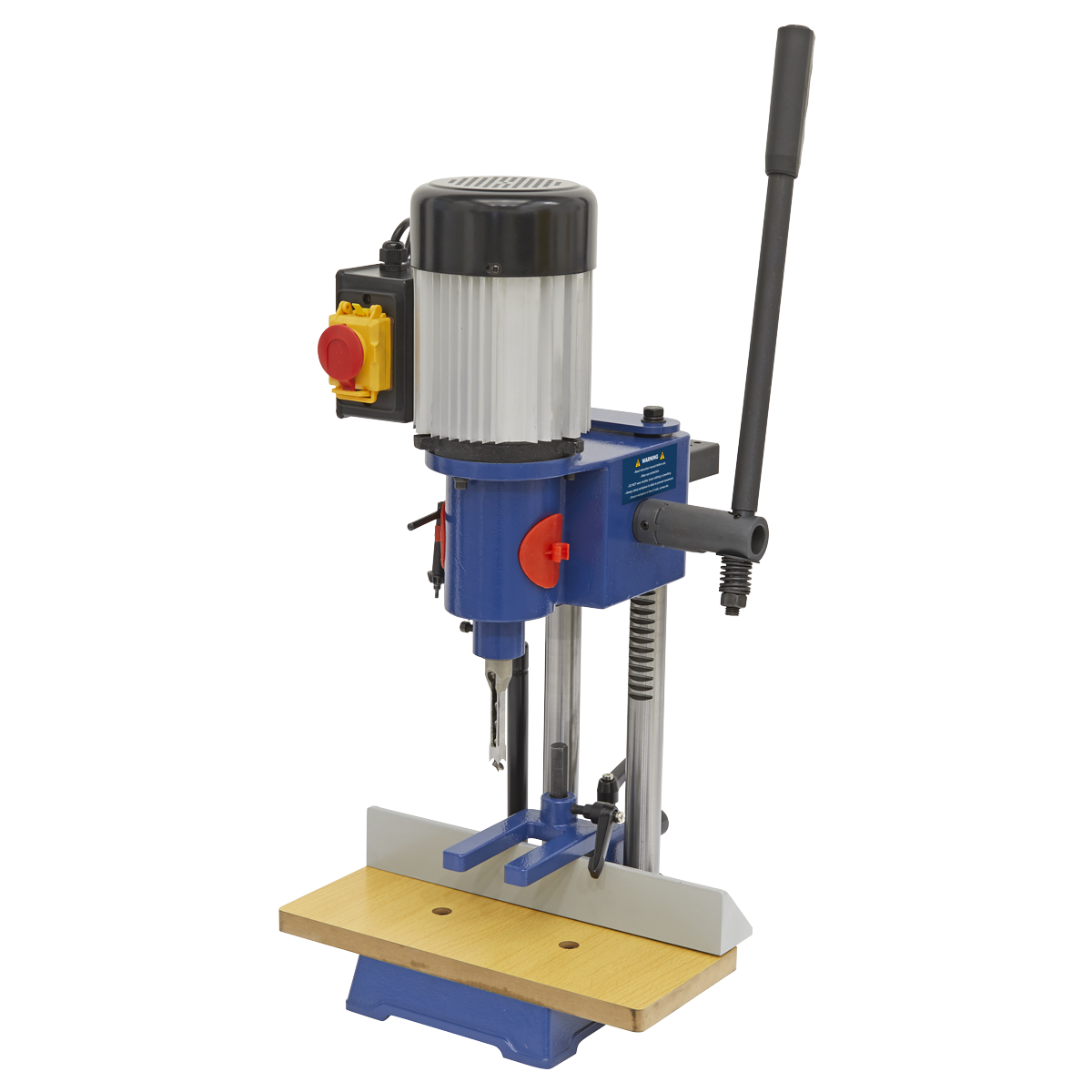

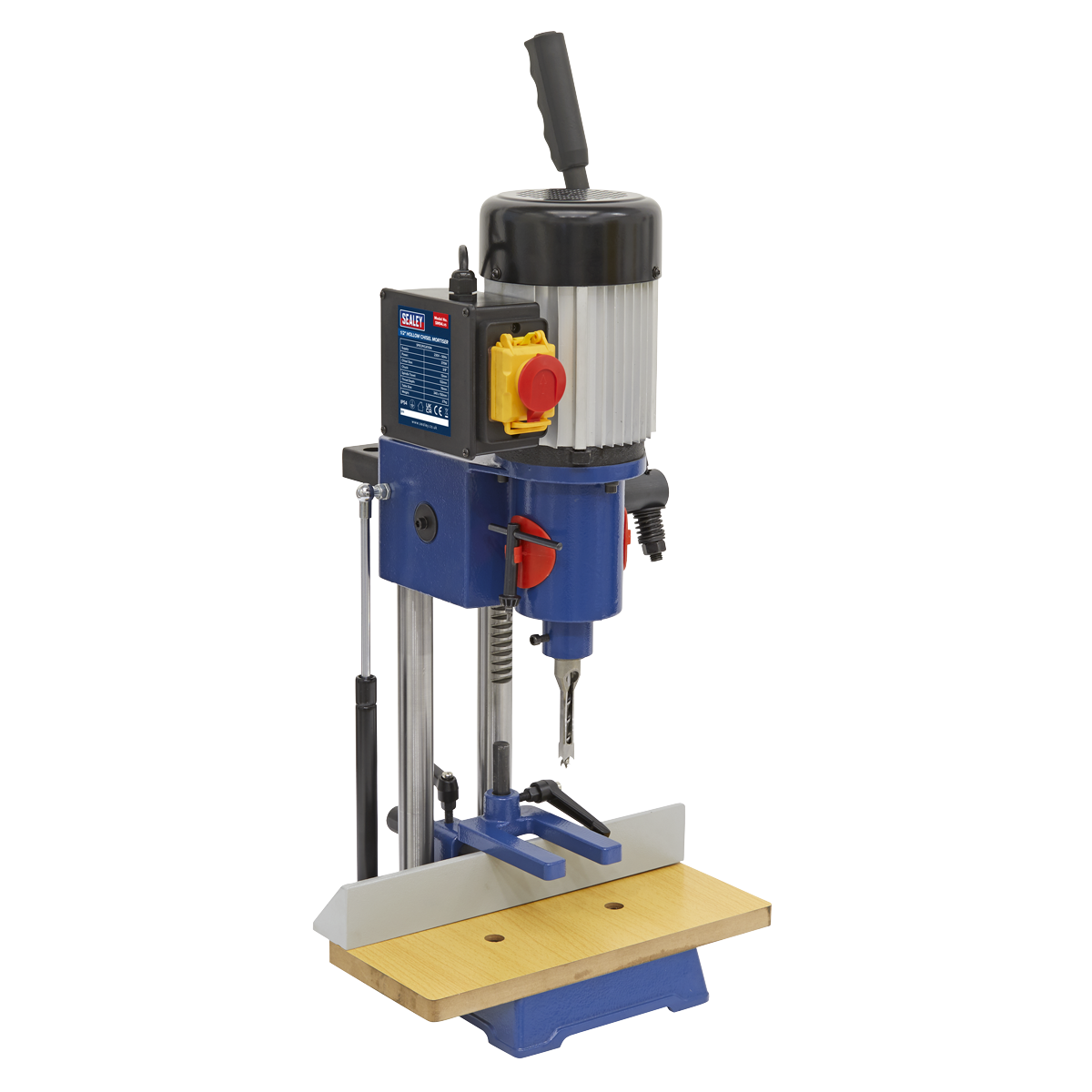

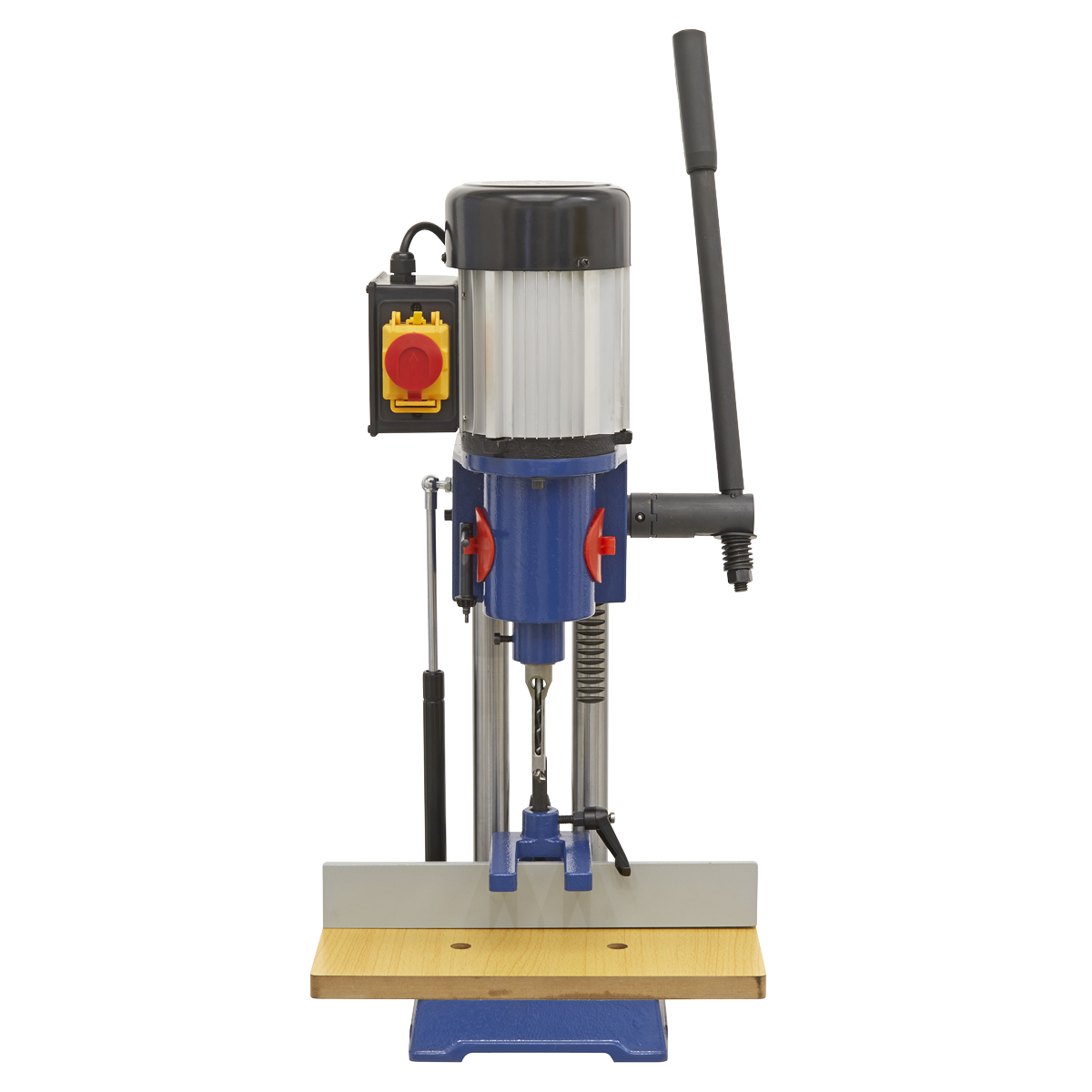

Cutting accurate mortises by hand is time-consuming and inconsistent, making it difficult to achieve the tight tolerances needed for quality joints, locks, and dead-bolts. The Sealey SM94 Hollow Chisel Mortiser is a bench-mounting machine designed to solve exactly this problem, delivering repeatable, precise mortises with minimal effort. Twin uprights with a hydraulic damper carry the head assembly smoothly, while an adjustable depth stop ensures consistent results across repetitive work. The 370W heavy-duty induction motor drives the spindle at 1400rpm, with a spindle travel of 132mm and a throat depth of 76mm. The integral 13mm drill chuck is accessible from both sides of the head for easy bit changes, and the chisel capacity covers 6-12mm to suit a range of mortise sizes. A no-volt release switch prevents accidental restart after a power failure or jam, adding an important layer of safety. The machine is supplied with a 3/8" mortising chisel and includes a table and workpiece clamp assembly, giving you everything needed to get started. Table size is 340 x 150mm and overall dimensions are 340 x 355 x 640mm. Runs on 230V AC 50Hz supply.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SM94 |
|---|---|
| Brand | Sealey |
| Chisel Capacity | 6 - 12mm |
| Chuck Capacity | 13mm |
| Dimensions (W x D x H) | 340 x 355 x 640mm |
| Motor Power | 370W |
| Nett Weight | 27kg |
| Spindle Speed | 1400rpm |
| Spindle Travel | 132mm |
| Supply | 230V (AC symbol) 50Hz |
| Table Size | 340 x 150mm |
| Throat Depth | 76mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
SM94CDS12 | Sealey SM94CDS12 Chisel & Drill Set 1/2" - Fits SM94 Hollow Chisel Mortiser | 1 Unit |
£20.93
£20.52
|
Add |
|
SM94CDS14 | Sealey SM94CDS14 Chisel & Drill Set 1/4" for SM94 Hollow Chisel Mortiser | 1 Unit |
£19.24
£18.86
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 48056 Hollow Square Mortice Chisel with Bit, 1/2"
£79.00
£77.45
2% OFF
Free delivery in UK Mainland
|
Draper 70419 Soft Grip 'Pound Thru' Bevel Edge Wood Chisel Set, 140mm (6 Piece)
£49.06
£48.10
2% OFF
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | S0802 | 48056 | SM96CDS58 | 70419 | 25993 | 70375 |
A. The Sealey SM94 is a bench-mounting mortising machine suitable for cutting mortises for joints, locks, and dead-bolts.
A. The SM94 is powered by a 370W heavy-duty induction motor running at a spindle speed of 1400rpm.
A. The chisel capacity is 6-12mm and the chuck capacity is 13mm.
A. Yes. The twin uprights have an adjustable depth stop, allowing you to set a consistent cutting depth for repetitive mortising work. The spindle travel is 132mm.
A. The SM94 features a no-volt release switch, which prevents accidental restart after a power failure or if the machine jams.
A. The SM94 is supplied with a 3/8" mortising chisel and includes a table and workpiece clamp assembly.
A. The table size is 340 x 150mm. Overall machine dimensions are 340mm (W) x 355mm (D) x 640mm (H).
A. The SM94 runs on a 230V AC 50Hz supply.
