Product Number: RW8180

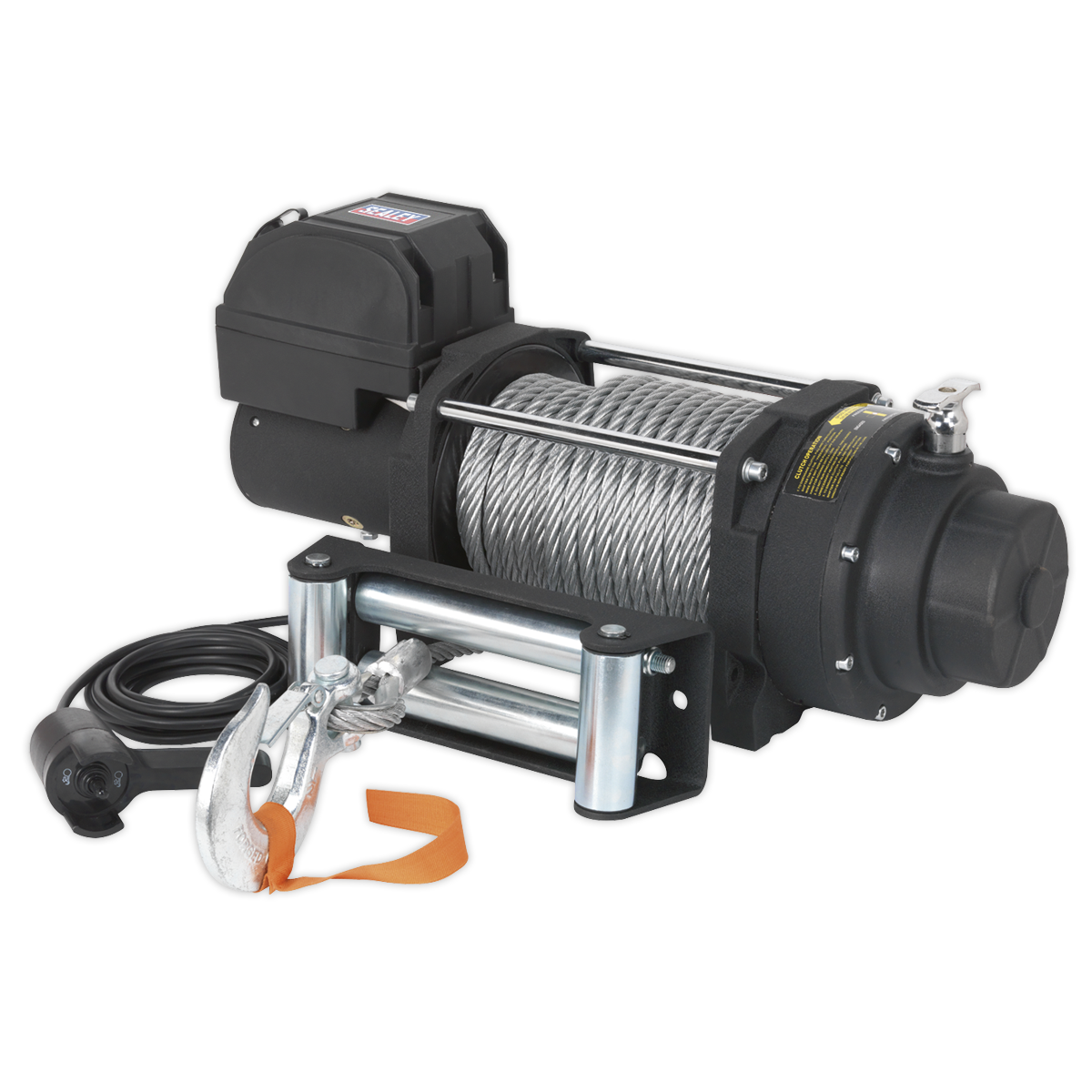

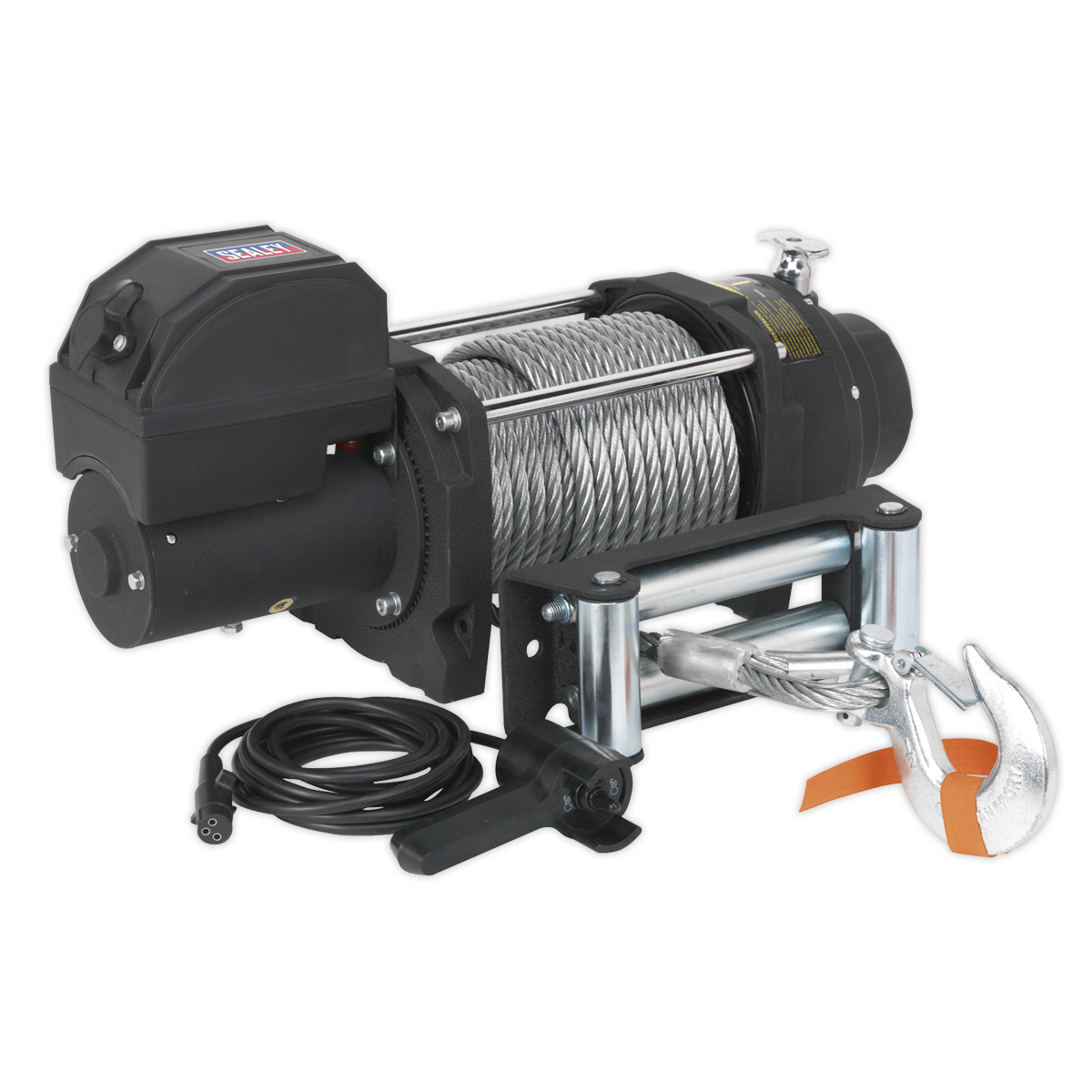

For industrial recovery and off-road applications requiring serious pulling capacity, the Sealey RW8180 delivers a 8180kg (18,000lb) line pull rated at the first layer of cable on the drum. A 2.3kW 12V DC series wound motor provides first class pulling power, working through a 4-stage planetary gear system using oversized components for greater torque, combined with an in-drum brake for secure load holding. Current draw is 95A at no load and 420A at maximum load. The 516:1 gear ratio delivers controlled, progressive line speed 3.5m/min at no load and 0.8m/min at maximum load. A remote control allows power in and power out of cable from a safe distance, keeping the operator clear during recovery operations. The ergonomic 'lift and turn' free spool clutches and 4-way roller fairlead ensure smooth, even distribution of the 13mm diameter, 25m wire rope onto the drum. Heavy-duty all-weather housing protects the winch in demanding conditions. Backed by a 3 Year Guarantee. A replacement wire rope (RW8180.WR 13mm x 25m) is available separately.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | RW8180 |
|---|---|
| Brand | Premier |
| Consumable Parts | RW8180.WR - Wire Rope (Ø13mm x 25m) for RW8180 |
| Current Draw | No-Load - 95A, Maximum Load - 420A |
| Gear Ratio | 21.5006944444444 |
| Line Pull* | 8180kg(18000lb) |
| Line Speed* | No Load - 3.5m/min, Maximum Load - 0.8m/min |
| Motor Power | 2.3kW |
| Nett Weight | 69kg |
| Note | *Performance quoted at first layer of cable on drum |
| Supply | 12V |
| Wire Rope Diameter | 13mm |
| Wire Rope Length | 25m |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
RW8180.WR | Sealey RW8180.WR Wire Rope 13mm x 25m for RW8180 Recovery Winch | 1 Unit |
£169.27
£165.88
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 31649 | 61258 | 61266 | LS5005 | LS5004 |
| Type | Sling | Sling | Sling | Sling | Sling |
| Colour | Red | Red | |||
| Brand | Sealey | Sealey | |||
| Length (mm) | 285 | 50 | 60 | ||
| Model No | LS5005 | LS5004 | |||
| Weight (kg) | 33 | 53 | |||
A. The RW8180 has a line pull of 8180kg (18,000lb), quoted at the first layer of cable on the drum.
A. The RW8180 runs on a 12V DC supply and uses a 2.3kW series wound motor.
A. Current draw is 95A at no load and 420A at maximum load.
A. The RW8180 is fitted with a 13mm diameter, 25m wire rope. A replacement wire rope is available separately under part number RW8180.WR (Ø13mm x 25m).
A. Yes. A remote control is included, allowing power in and power out of cable from a safe distance.
A. The RW8180 uses a 516:1 gear ratio with a 4-stage planetary gear system using oversized components for greater torque.
A. Line speed is 3.5m/min at no load and 0.8m/min at maximum load, both quoted at the first layer of cable on the drum.
A. The RW8180.WR is a consumable spare part - a replacement wire rope (Ø13mm x 25m) for the RW8180. This is a consumable accessory, not a variant of the winch itself.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
