Product Number: ATV1135

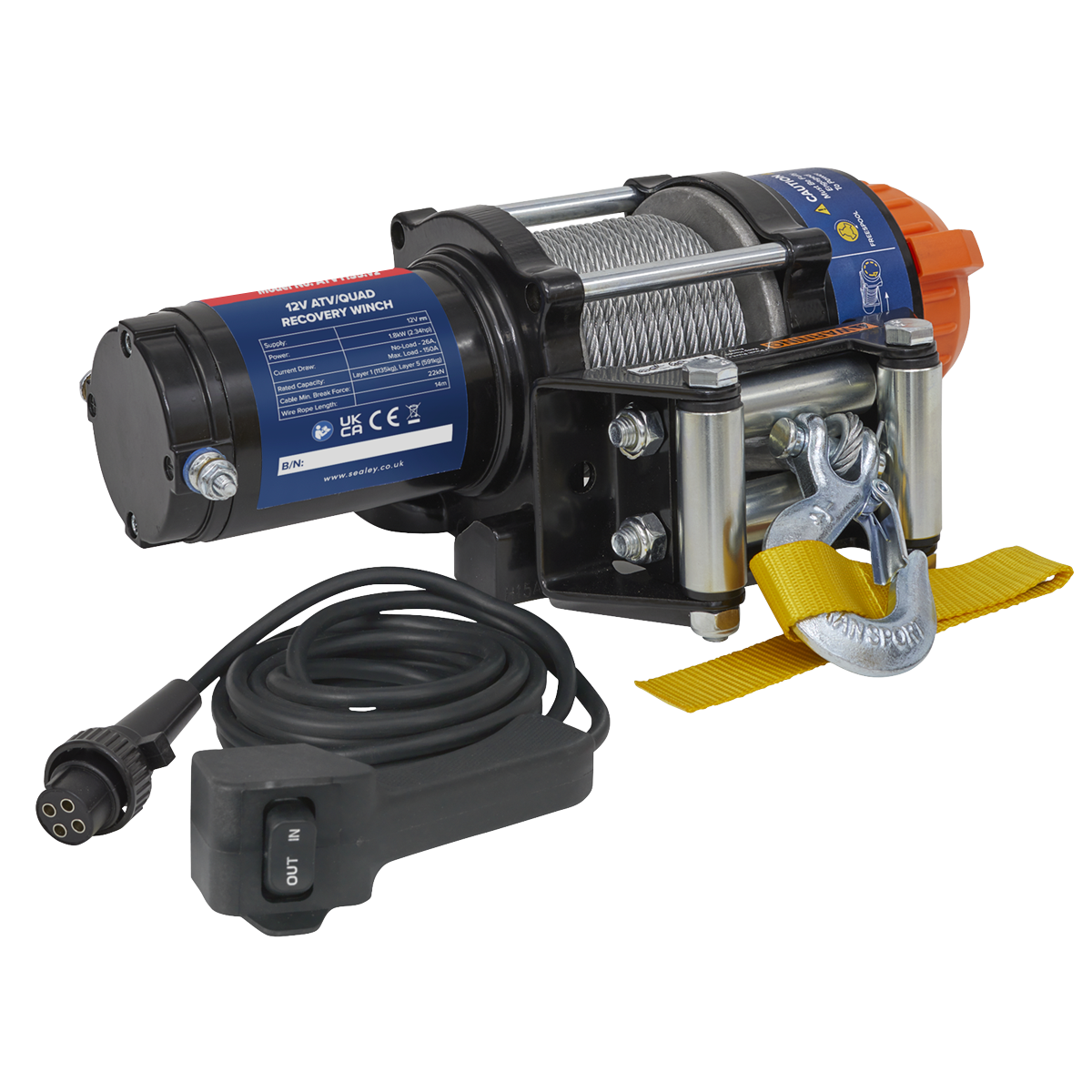

Getting an ATV or quad bike unstuck in tough terrain demands a winch that won't let you down under full load. The Sealey ATV1135 is a high-speed 12V recovery winch purpose-built for ATV and quad bike mounting, delivering 1,135kg (2,500lb) line pull on the first layer of cable. Powered by a 1.8kW (2.34hp) 12V DC permanent magnet motor drawing up to 150A at maximum load, it features a 180:1 gear ratio via 3-stage planetary gears, giving a no-load line speed of 4.8m/min and a maximum-load line speed of 1.6m/min. The patented automatic spring brake operates reliably under full load, while the sliding ring gear clutch and 4-way roller fairlead ensure smooth, controlled cable management. The motor and gearbox are IP67 rated for all-weather use, housed in a heavy-duty all-weather casing. A 4.8mm diameter wire rope of 14m length is included, with a cable minimum brake force of 22kN. Replacement wire rope (ATV1135.WR) and Dyneema rope (ATV1135.DR) are available separately. Compatible with the ATV1135KIT.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ATV1135 |
|---|---|
| Brand | Sealey |
| Cable Minimum Brake Force | 22kN |
| Consumable Parts | ATV1135.WR - Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR - Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135 |
| Current Draw | No-Load - 26A, Maximum Load - 150A |
| Gear Ratio | 7.50069444444444 |
| Line Pull* | 1135kg(2500lb) |
| Line Speed* | No-Load - 4.8m/min, Maximum Load - 1.6m/min |
| Motor Power | 1.8kW(2.34hp) |
| Nett Weight | 11.8kg |
| Note | *Performance quoted at first layer of cable on drum |
|
Rated Capacity:Layer 1: 1135kg, Layer 5: 591kg
|
|
| Supply | 12V |
| Wire Rope Diameter | 4.8mm |
| Wire Rope Length | 14m |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATV1135.WR | Sealey ATV1135.WR Replacement Wire Rope 4.8mm x 15.2m for ATV1135 Recovery Winch | 1 Unit |
£27.13
£26.60
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 31649 | 61258 | 61266 | LS1003 | LS1002 |
| Type | Sling | Sling | Sling | Sling | Sling |
| Colour | Purple | Purple | |||
| Brand | Sealey | Sealey | |||
| Length (mm) | 285 | 50 | 60 | ||
| Model No | LS1003 | LS1002 | |||
| Weight (kg) | 704 | 39 | |||
A. The ATV1135 delivers a line pull of 1,135kg (2,500lb) measured at the first layer of cable on the drum. Rated capacity reduces to 591kg at layer 5.
A. The ATV1135 operates on a 12V DC supply.
A. The motor produces 1.8kW (2.34hp). Current draw is 26A at no load and up to 150A at maximum load.
A. Yes. The motor and gearbox are IP67 rated, and the winch features a heavy-duty all-weather housing, making it suitable for outdoor and all-weather use.
A. The winch is supplied with a 4.8mm diameter wire rope, 14m in length. Replacement wire rope (ATV1135.WR, Ø4.8mm x 15.2m) and Dyneema rope (ATV1135.DR, Ø4.9mm x 15.2m) are available as consumable parts.
A. The ATV1135 has a 180:1 gear ratio, delivered through 3-stage planetary gears.

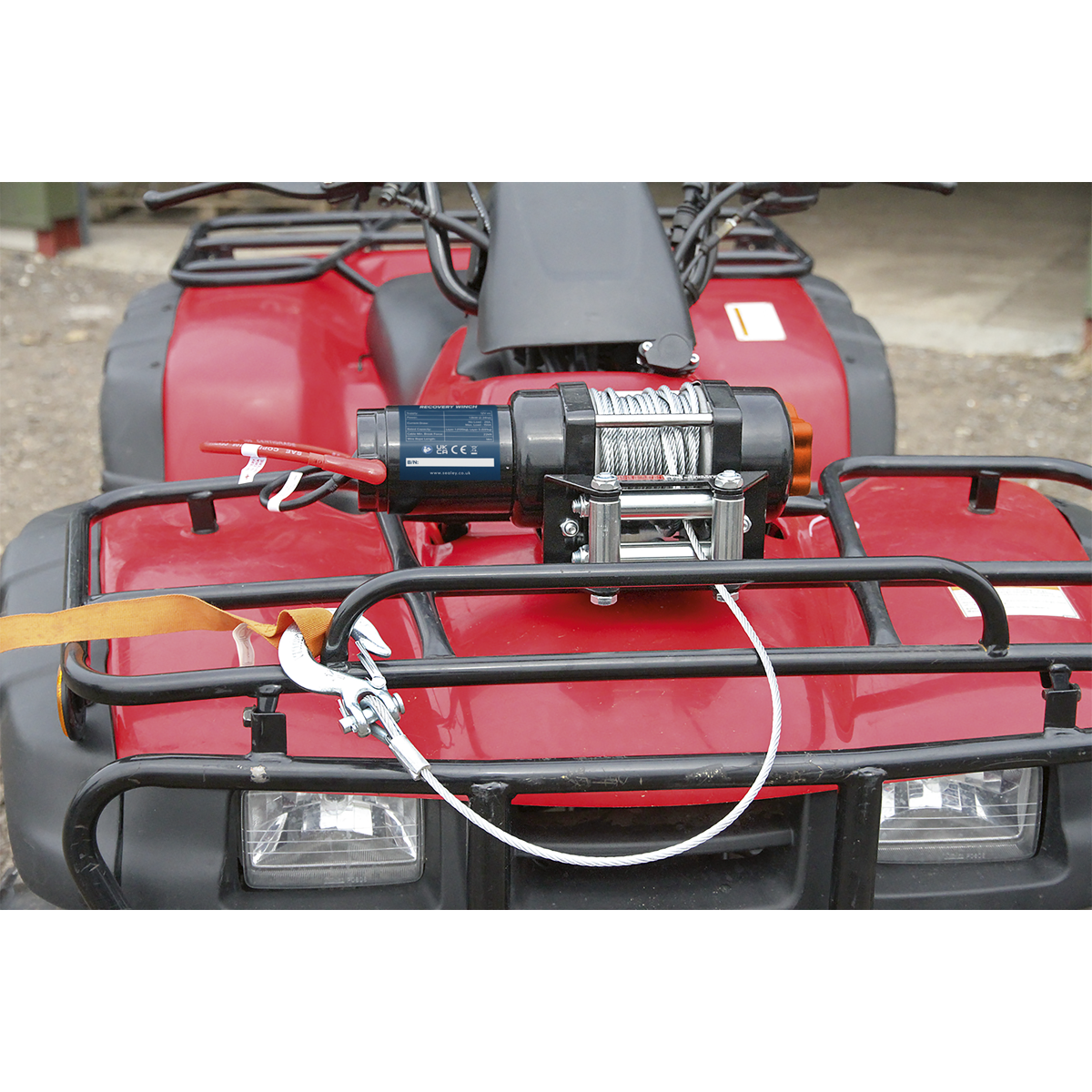

A. The ATV1135 is suitable for ATV and quad bike mounting. It is compatible with the ATV1135KIT.
A. The ATV1135.WR is a replacement wire rope accessory for the ATV1135. Please note this is a consumable part rather than a variant of the winch itself.
A. Yes. The ATV1135 features a patented unique automatic spring brake that is reliable in full load operation.
