Product Number: YAJ201
Variations

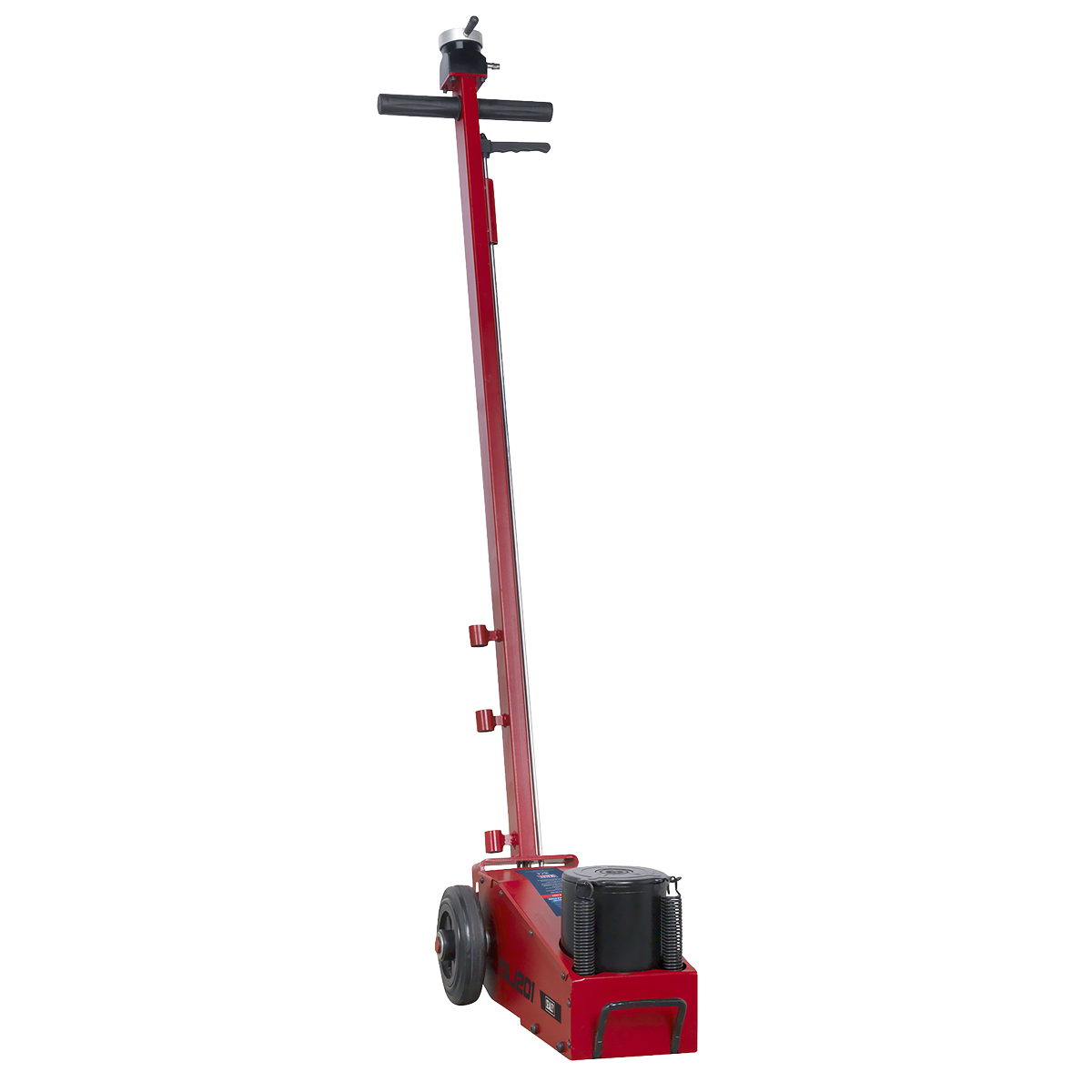

Lifting heavy plant, tractors and commercial vehicles by hand is slow, strenuous and potentially dangerous the Sealey YAJ201 takes that effort away. This air-operated jack offers a 20-tonne capacity in a single-stage design, making it a practical choice for both workshop and roadside use. Powered by your air compressor (a compressor of above 3hp is required), it delivers powerful and reliable lifting without manual effort. For added safety, the YAJ201 features a dead man's handle that also provides controlled lowering speed, keeping the operator in command throughout the lift. The jack is supplied with 20mm, 50mm and 100mm extensions to close the gap between the saddle and the jacking point, giving you the flexibility to work on a range of vehicles and plant. Key dimensions include a minimum saddle height of 215mm, a maximum height of 456mm with the stage 1 extension in place, a chassis length of 525mm, a maximum length of 1,765mm and an overall width of 265mm. The piston stroke is 141mm. Operating pressure is 116-174psi with an air consumption of 10.5cfm. Whether you are maintaining HGVs, farm machinery or heavy equipment, the YAJ201 delivers the capacity and control to get the job done.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YAJ201 |
|---|---|
| Air Consumption | 10.5cfm |
| Brand | Sealey |
| Capacity | 20 Tonne |
| Chassis Length | 525mm |
| Extensions | 20/50/100mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 456/20mm |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | n/a |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | n/a |
| Maximum Length | 1765mm |
| Minimum Saddle Height | 215mm |
| Nett Weight | 30kg |
| Overall Width | 265mm |
| Piston Stroke | 141mm |
| Screw Extension | n/a |
| Width without Wheels | 133mm |
| Working Pressure | 116-174psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YAJ301 Air Operated Jack 30 Tonne Single Stage
£958.85
£940.05
2% OFF
Free delivery in UK Mainland
|
Sealey PAFJ3S Premier Air Fast Jack 3 Tonne 3-Stage
£537.03
£526.29
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
SIP 03643 AirFloor Jack, Weight Capacity - 22 Tonne
£555.81
£544.91
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YAJ301 | PAFJ3S | 53438000 | 09893 | 09890 | 03643 |
| Warranty | 36 | 36 | 12 | 36 | 36 | 24 |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack |
| Capacity | 30 Tonne | 3 Tonne | ||||
| Length (mm) | 490 | 405 | 420 | 150 | 141 | 230 |
| Max Pressure (psi) | 174 | 150 | 102 | |||
| Nett Weight | 47kg | 20kg | ||||
| Weight (kg) | 47 | 20 | 117 | |||
| Show More | ||||||
A. The YAJ201 has a lifting capacity of 20 tonnes, single stage.
A. The YAJ201 requires a compressor of above 3hp. The working pressure is 116-174psi and air consumption is 10.5cfm.
A. The jack is supplied with 20mm, 50mm and 100mm extensions to help bridge the gap between the saddle and the jacking point.
A. The minimum saddle height is 215mm. The maximum height including the Stage 1 extension is 456mm at a capacity of 20 tonnes.
A. Yes, the YAJ201 is described as ideal for both workshop and roadside use, making it suited to recovery and on-site maintenance of heavy vehicles and plant.
A. The YAJ201 features a dead man's handle, which provides an added safety measure and also aids controlled lowering speed.
A. The chassis length is 525mm, maximum length is 1,765mm, overall width is 265mm, width without wheels is 133mm and the piston stroke is 141mm.
A. Yes. Alternatives include the YAJ18S, YAJ20B, YAJ301 and YAJ30H, each with different capacities or configurations. Please check individual product listings for full details.
A. We accept all major credit and debit cards, along with PayPal.
A. This product is covered by the manufacturer's standard warranty. Please refer to the product listing for specific warranty terms.
