Product Number: 98921

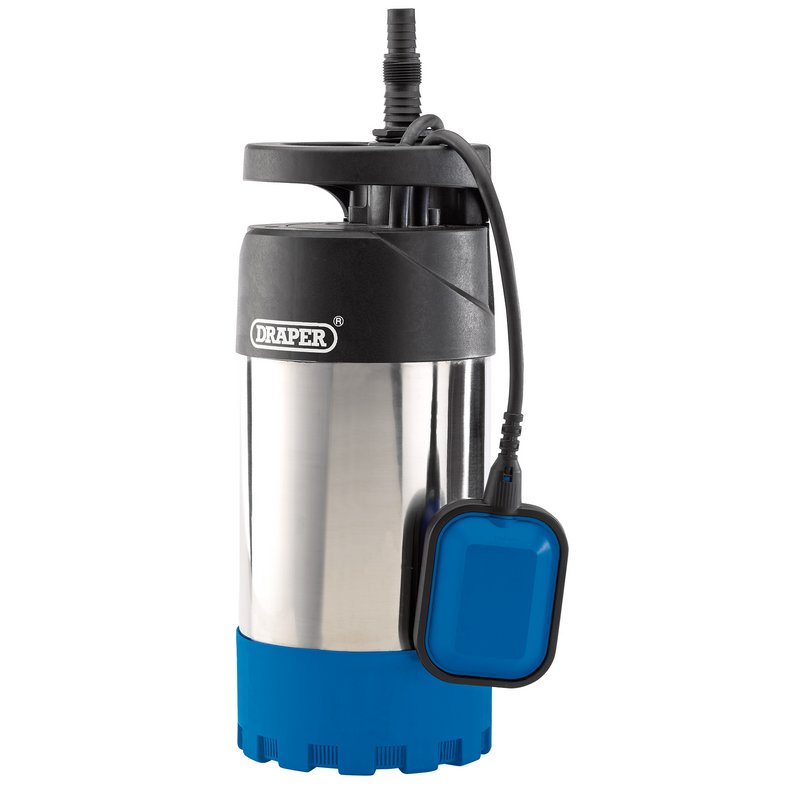

Deep well and high-pressure water extraction demands a pump capable of sustaining significant head height without loss of flow. The Draper 98921 deep water submersible well pump is designed for applications where a large head height or high pressure is required, delivering a maximum output of 91 litres per minute against a maximum head height of 40 metres, driven by a 1000W motor operating on a standard 230V supply. The pump employs multistage pressurising to maintain consistent output across depth, and incorporates an integrated float switch that automatically shuts the pump down when the water level drops to a safe threshold, preventing dry-run damage. Thermal overload protection provides a further layer of defence against motor damage during extended operation. The unit can be deployed at depths of up to 15 metres. The 25mm output aperture diameter and 25mm hose adaptor diameter facilitate straightforward connection to compatible pipework, while the maximum particle diameter of 1mm keeps particulate ingress within a manageable range for clear water duties. The pump is supplied with approximately 15 metres of cable fitted with an approved plug, making it ready to install without additional wiring work. A carry handle aids positioning and retrieval. Weighing 3.6kg, the pump is compact enough for single-operator deployment. The unit is supplied as a single pump assembly and is backed by a Draper 12-month warranty.
For use in areas where a large head height or high pressure is required. Will pump up to 15M deep. Fitted with thermal overload protection and a float switch which automatically turns the pump off when the water level has dropped. 15M (approx.) cable and approved plug.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Float Switch | Yes |
|---|---|
| Hose Adaptor Diameter | 25mm |
| Max Head Height | 40M |
| Max Output | 91L/min |
| Max Particle Diameter | 1mm |
| Motor | 1000W |
| Output Aperture Diameter | 25mm |
| Voltage | 230V |
| Weight | 3.6kg |
