Shop by Sub Category

FAQs

Single-stage pumps have one impeller and produce moderate pressure at high flow — used for water transfer, pond circulation, and irrigation where bulk water movement matters. Multi-stage pumps stack 2-7 impellers in series, multiplying the pressure proportionally — used for pressure-boosting, high-rise water supply, and any application where pressure (in bar) matters more than bulk flow. As a guide: for water transfer at low pressure, single-stage; for pressure-boost above 3 bar, multi-stage.

A standard centrifugal pump must have water already in the pump body and suction line before it will run — air-filled lines won't draw water and the pump may be damaged if run dry. A self-priming pump has a built-in priming chamber that retains water from the previous run and automatically fills the suction line — it can lift water up to 6-8 metres without manual priming. Useful where the water source is below the pump (water bowsers, ponds, low-level tanks) or where the pump may need to restart on an empty line.

For a typical 3-bedroom home with shower, tap, and washing machine demand, a 0.6-1.2 kW multi-stage booster pump delivering around 50-80 L/min at 3-4 bar is sufficient — paired with an 18-24 litre expansion vessel and a pressure switch. For larger properties, multiple bathrooms, or properties with pressure-fed showers, size up to 1.5-2.2 kW pumps with 50-100 litre expansion vessels. Always size the inlet supply pipe to the pump's specified inlet diameter; under-sized supply pipework chokes the boost performance.

Some surface pumps tolerate small particulates in feed water (typical of rainwater from a clean roof and a settled tank) but most require pre-filtration to protect the impellers and seals. For rainwater harvesting installations, fit a pre-filter (typical 100-micron mesh) on the suction side and a finer filter (5-25 micron) downstream of the pump if the water feeds garden irrigation or other clean-application uses. Check the pump product page for the maximum particulate rating.

Returns are accepted within 30 days of purchase, in original packaging, on orders delivered within the United Kingdom. For damaged-on-arrival items, report within 24 hours with photographs to [email protected] — we will typically arrange collection and replacement at no cost to you. For parts that don't fit your machine, the Fit Guarantee covers a hassle-free return at no cost. For buyer's remorse — you've changed your mind or ordered the wrong item, email us first to obtain a Return Merchandise Number; a restocking fee may apply. Refunds are issued to the original payment method once the return is inspected.

Delivery time depends on the product, your destination, and availability — the estimated time for any item appears on the product page, and 'Check where we deliver' confirms coverage for your postcode before you order. Next-day delivery is available on most products; the option appears at checkout when applicable. We deliver across the UK, Europe, the Middle East, and Africa. Use the country selector at checkout to confirm coverage and delivery options for your destination.

Clear

Surface Mounted and Booster Pumps

FilterFilters
View as Grid List

Within Forest, Garden & Agriculture / Watering Equipment, Surface Mounted and Booster Pumps covers the above-ground pumps used for water transfer, pressure boosting, and supply pumping where the pump can sit at or near the water source rather than being submerged in it. Parts For Machines supplies trade-grade surface and booster pumps for agricultural, horticultural, grounds-maintenance, and rural-property water-supply applications. Common applications include rural-property pressure boosting from a low-pressure mains supply (older properties, end-of-line connections, and rural areas where mains pressure drops below the comfortable shower-and-tap minimum); agricultural water transfer between tanks, troughs, and storage; pressure-washer and dust-suppression feed water where mains pressure isn't sufficient; rainwater-harvesting distribution from collection tanks to garden taps and irrigation; and water-feature and pond circulation where above-water installation is preferred.

Surface-mounted pumps split into three main types. Single-stage centrifugal pumps are the simplest and lowest-cost — used for water transfer at moderate pressure with one impeller. Multi-stage centrifugal pumps stack multiple impellers in series for higher pressure at the same flow — used for pressure-boosting, hill-top irrigation, and any application where pressure matters more than flow.

Self-priming pumps include a built-in priming chamber that fills automatically — they handle suction lifts up to 6-8 metres without manual priming, useful for water-bowser feed and pond pumping where the water level is below the pump. Product pages list the rated flow (litres per minute or litres per hour at typical operating pressure), the rated maximum head (the maximum vertical lift in metres, or maximum pressure in bar), the pump-curve point (the flow-pressure combination where the pump runs most efficiently), the inlet and outlet thread (typically 1-inch BSP for trade pumps, 3/4-inch for smaller garden units), and the motor power (kW or HP).

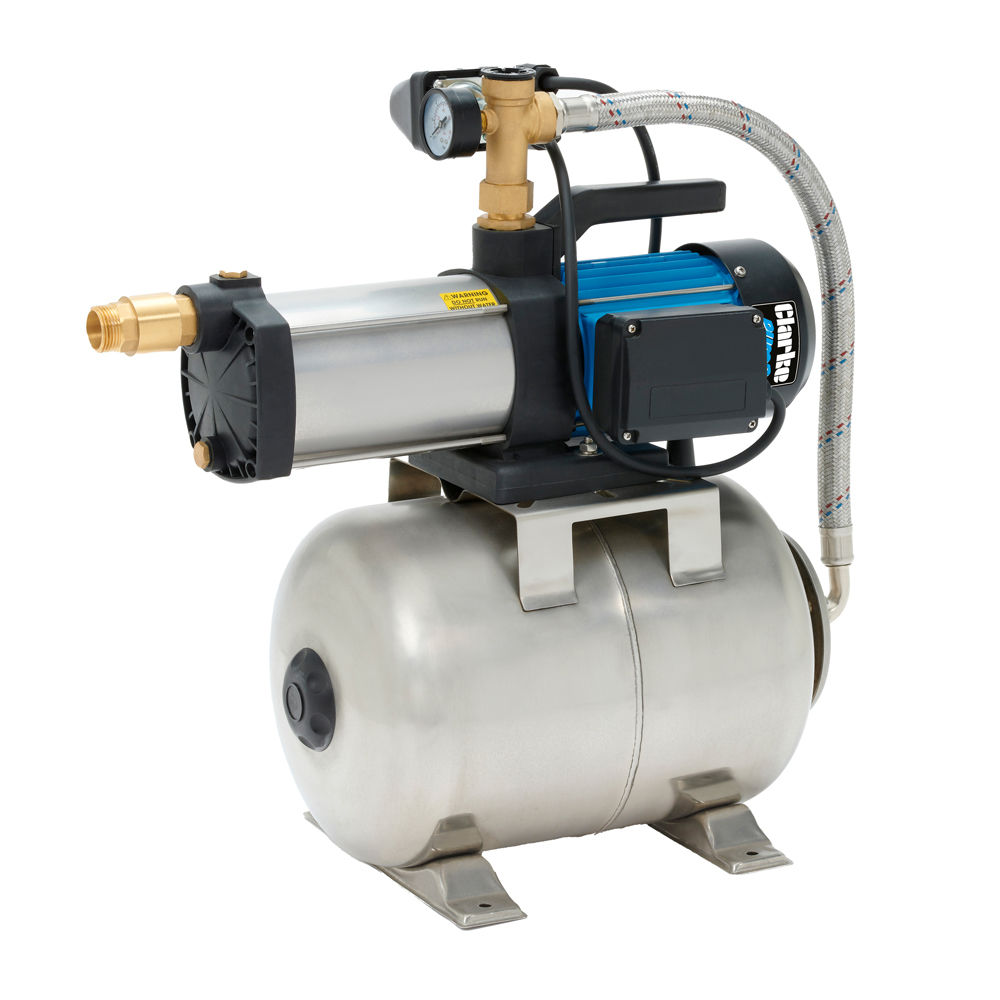

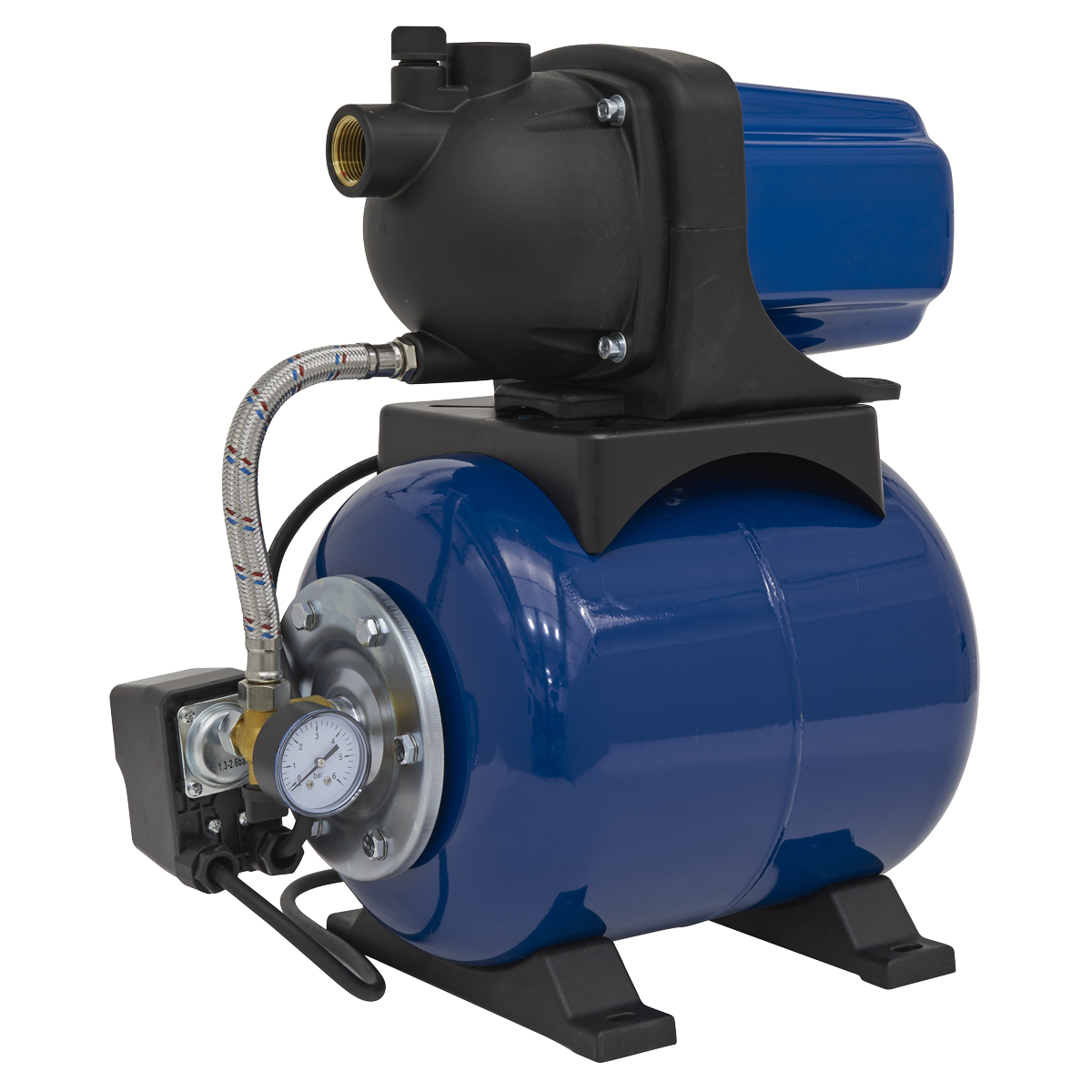

For pressure-boost applications, choose a multi-stage pump with a pressure switch and small expansion vessel — the pump runs only when a tap is opened, maintains pressure, and switches off when demand stops. For water-transfer applications, a single-stage centrifugal at the right flow rate is normally sufficient. Trade pricing on multi-unit orders is available via WhatsApp 07754288583.

Show Only My Country Products
In this feature, you can view only your country products.
Showing 1 to 30 of 37 entries
FAQs

Single-stage pumps have one impeller and produce moderate pressure at high flow — used for water transfer, pond circulation, and irrigation where bulk water movement matters. Multi-stage pumps stack 2-7 impellers in series, multiplying the pressure proportionally — used for pressure-boosting, high-rise water supply, and any application where pressure (in bar) matters more than bulk flow. As a guide: for water transfer at low pressure, single-stage; for pressure-boost above 3 bar, multi-stage.

A standard centrifugal pump must have water already in the pump body and suction line before it will run — air-filled lines won't draw water and the pump may be damaged if run dry. A self-priming pump has a built-in priming chamber that retains water from the previous run and automatically fills the suction line — it can lift water up to 6-8 metres without manual priming. Useful where the water source is below the pump (water bowsers, ponds, low-level tanks) or where the pump may need to restart on an empty line.

For a typical 3-bedroom home with shower, tap, and washing machine demand, a 0.6-1.2 kW multi-stage booster pump delivering around 50-80 L/min at 3-4 bar is sufficient — paired with an 18-24 litre expansion vessel and a pressure switch. For larger properties, multiple bathrooms, or properties with pressure-fed showers, size up to 1.5-2.2 kW pumps with 50-100 litre expansion vessels. Always size the inlet supply pipe to the pump's specified inlet diameter; under-sized supply pipework chokes the boost performance.

Some surface pumps tolerate small particulates in feed water (typical of rainwater from a clean roof and a settled tank) but most require pre-filtration to protect the impellers and seals. For rainwater harvesting installations, fit a pre-filter (typical 100-micron mesh) on the suction side and a finer filter (5-25 micron) downstream of the pump if the water feeds garden irrigation or other clean-application uses. Check the pump product page for the maximum particulate rating.

Returns are accepted within 30 days of purchase, in original packaging, on orders delivered within the United Kingdom. For damaged-on-arrival items, report within 24 hours with photographs to [email protected] — we will typically arrange collection and replacement at no cost to you. For parts that don't fit your machine, the Fit Guarantee covers a hassle-free return at no cost. For buyer's remorse — you've changed your mind or ordered the wrong item, email us first to obtain a Return Merchandise Number; a restocking fee may apply. Refunds are issued to the original payment method once the return is inspected.

Delivery time depends on the product, your destination, and availability — the estimated time for any item appears on the product page, and 'Check where we deliver' confirms coverage for your postcode before you order. Next-day delivery is available on most products; the option appears at checkout when applicable. We deliver across the UK, Europe, the Middle East, and Africa. Use the country selector at checkout to confirm coverage and delivery options for your destination.
