Additional Information
A pulling system that offers versatility with many different puller combinations.
The system covers a wide range; automotive, industrial and engineering applications for bearings, gears, oil seals, bearing outer races and pinions.
The slide hammer allows the tool to be used where a conventional screw puller is not suitable do to the absence of a shaft.
Contents
Straight Leg Style
External Spread Min - Max: 0-75 mm
Internal Spread Min - Max: 60-100 mm
Reach Max: 55 mm
Cranked Leg Style
Internal Spread Min - Max: 25-60 mm
Reach Max: 45 mm
Split Collets
Internal Spread Min - Max: 10-30 mm
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimensions (L x W x H) | 470 x 140 x 90 mm |
|---|---|
| Product Weight | 4.3 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 09580000 Internal Split Collets Extractor Kit
£514.12
£504.04
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09585600 Slide Hammer Bearing Extractor Set 57-75mm
£335.90
£329.31
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09585700 Slide Hammer Bearing Extractor Set 74-100mm
£366.53
£359.34
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09585800 Slide Hammer Bearing Extractor Set 57-100mm
£509.46
£499.47
2% OFF
Free delivery in UK Mainland
|
Pneumatic Air Vibro Injector Removal Tool, Sykes Pickavant - 08588000
£240.81
£236.09
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 09580000 | 09585600 | 09585700 | 09585800 | 08588000 | 09812100 | 50094 | 93509 | PS990 |
A. It is a “Combi Pull” slide hammer kit offering multiple puller combinations and split collet internal extraction from 10–30mm bores.

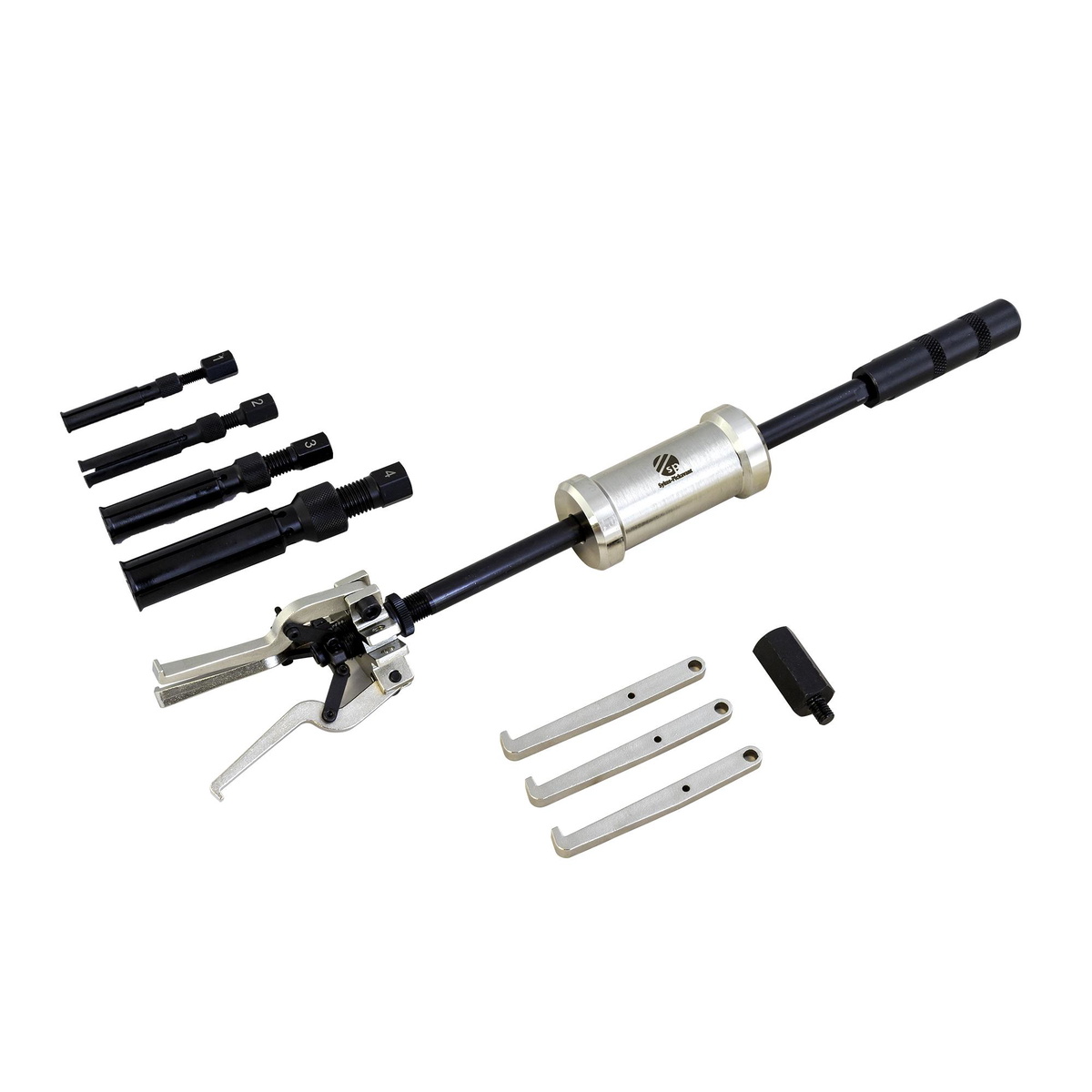

A. It includes a slide hammer, 3 straight legs, 3 cranked reversible legs and 4 split collet internal extractors from 10–30mm, supplied in a metal case.
A. Straight legs have external spread 0–75mm, internal spread 60–100mm and reach up to 55mm.
A. Cranked legs have internal spread 25–60mm with reach up to 45mm, helping work around obstructions.
A. Workshops seeking versatile slide hammer bearing puller machine parts for gears, bearings, oil seals and pinions.
A. It is explicitly marketed as a slide hammer puller and split collet internal extractor kit.
A. Yes, you can buy 08540400 on PartsForMachines when searching for slide hammer machine parts and bearing extractors.
A. It ensures positive leg location, reducing risk of tool slip during extraction.
A. The slide hammer enables pulling where a screw puller cannot be used due to an absent shaft.
A. 09450000 handles internal jaws with other drives, while 08540400 combines split collets and slide hammer pulling in one kit."
