Product Number: 59123

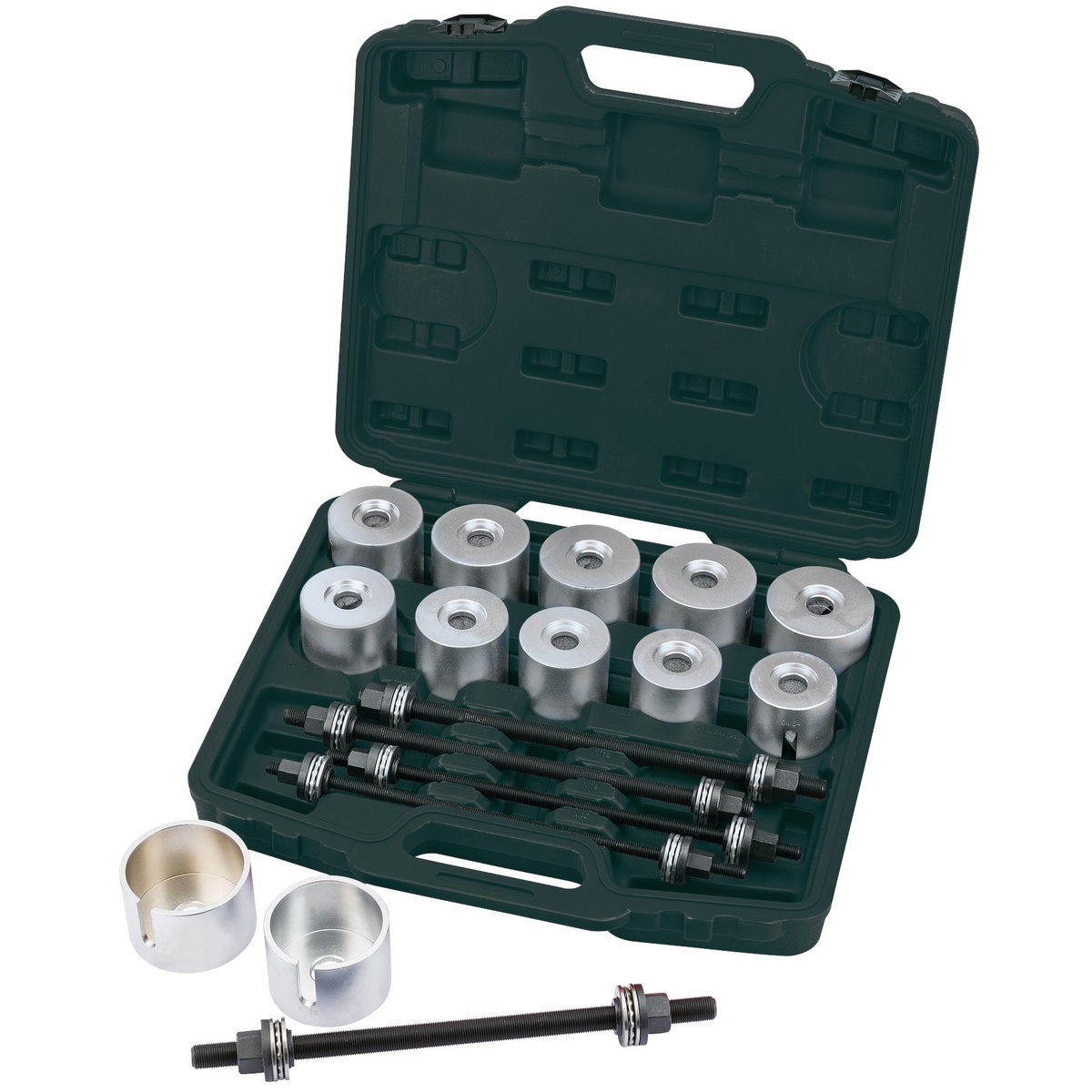

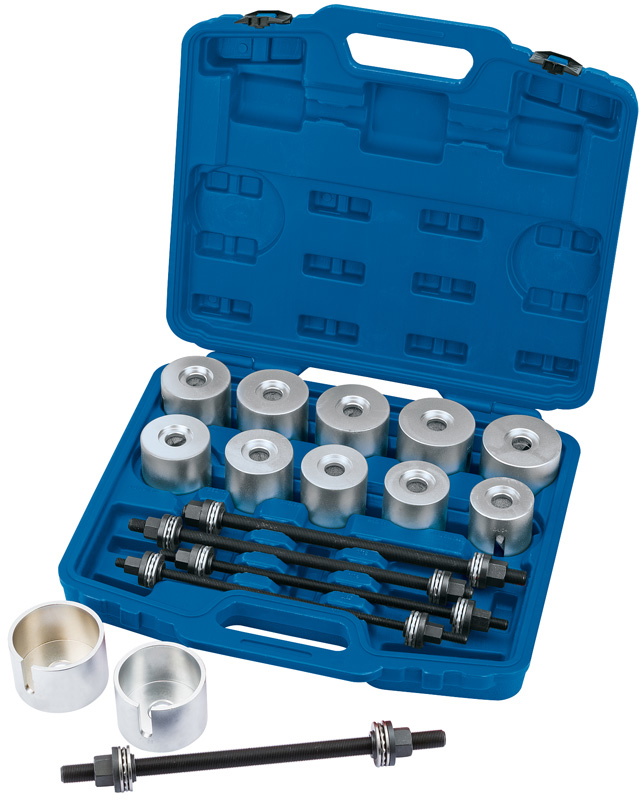

Accurate bearing and seal installation or removal demands the correct tooling to avoid damage to components and housings alike. The Draper Expert 59123 Bearing, Seal and Bush Insertion/Extraction Kit provides the controlled force and precise sizing required for professional workshop use across a wide range of automotive and industrial applications. The kit is designed for the accurate and controlled insertion and removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, and shaft seals. Five fine-thread puller bars are included, each with thrust bearing hex-nut ends to ensure smooth, even load transfer during operation. The thread sizes covered are M10, M12, M14, M16, and M18, providing a broad range of spindle options for different bore configurations. Twenty-two adaptor rings span from 34mm x 44mm up to 80mm x 90mm, with closely stepped increments throughout the range. This coverage accommodates the majority of bearing and seal diameters encountered in engine, transmission, and drivetrain repair work. The adaptor rings and spindles are housed in a blow-mould carrying case with a display sleeve, keeping components protected and organised between uses. With 27 pieces in total, this Expert Quality kit delivers the versatility and precision that professional technicians require for bearing and seal work across a wide variety of vehicle and industrial equipment types.
Expert Quality, for the accurate and controlled insertion/removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, shaft seals etc. Comprises 22 adaptor rings and five fine thread puller bars with thrust bearing hex. nut ends. Packed in blow mould carrying case and display sleeve.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
81034 | Draper M10 Spare Threaded Rod and Bearing for 59123 and 30816 Extraction Kit | 1 Unit |
£13.68
£13.41
|
Add |
|
81036 | Draper M12 Spare Threaded Rod and Bearing for 59123 and 30816 Extraction Kit | 1 Unit |
£13.68
£13.41
|
Add |
|
81037 | Draper M14 Spare Threaded Rod and Bearing for 59123 and 30816 Extraction Kit | 1 Unit |
£14.29
£14.01
|
Add |
|
81038 | Draper M16 Spare Threaded Rod and Bearing for 59123 and 30816 Extraction Kit | 1 Unit |
£14.71
£14.42
|
Add |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 08100000 UNIVERSAL BEARING RING PULLER
£127.42
£124.92
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 08550300 GM GEARBOX BEARING/RACE REMOVER
£193.23
£189.44
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09580200 BEARING EXTRACTOR 13-30MM
£180.74
£177.20
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09580400 BEARING EXTACTOR SET 8-22.5MM
£203.50
£199.51
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09580600 BEARING EXTRACTOR SET 57-75MM
£376.74
£369.35
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09580800 BEARING EXTRACTOR SET 57-100MM
£540.09
£529.50
2% OFF
Free delivery in UK Mainland
|
Sealey PS980 Bearing Separator/Puller Set 8pc Hydraulic
£170.91
£167.49
2% OFF
Free delivery in UK Mainland
|
Sealey VS7026 Bearing & Bush Removal/Installation Kit 27pc
£274.30
£268.81
2% OFF
Free delivery in UK Mainland
|
|||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 08100000 | GO046 | 08550300 | 09580200 | 09580400 | 09580600 | 09580800 | PS988 | PS980 | AK716 | AK714 | VS7026 | AK7160 | PS984 | VS7002 |
| Type | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Bearing Tool | Seal |
| Brand | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | Sealey | ||||||||
| Length (mm) | 130 | 380 | 50 | 30 | 60 | 75 | 100 | 105 | 105 | 34 | 16 | 60 | 27 | 50 | |
| Model No | PS988 | PS980 | AK716 | AK714 | VS7026 | AK7160 | PS984 | ||||||||
| Nett Weight | 2.51kg | 9.23kg | 3.91kg | 2.69kg | 17.73kg | 1.220kg | 4.86kg | ||||||||
| Weight (kg) | 45 | 65 | 73 | 2.5 | 3.7 | 7.6 | 10.7 | 51 | 23 | 91 | 69 | 73 | 220 | 86 | |
A. The Draper Expert 59123 kit is designed for the accurate and controlled insertion and removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, and shaft seals.
A. The kit includes 22 adaptor rings ranging from 34mm x 44mm up to 80mm x 90mm, with closely stepped increments throughout: 34x44, 36x46, 38x48, 40x50, 42x52, 44x54, 46x56, 48x58, 50x60, 52x62, 54x64, 56x66, 58x68, 60x70, 62x72, 64x74, 66x76, 68x78, 70x80, 72x82, 75x85, and 80x90mm.
A. Five fine-thread puller bars are included, covering M10, M12, M14, M16, and M18 thread sizes. Each spindle features thrust bearing hex-nut ends for smooth, controlled load application.
A. All 27 components are housed in a blow-mould carrying case with a display sleeve, keeping the adaptor rings and spindles protected and organised.
