Product Number: 81038
Accurate and controlled insertion and removal of bearings in professional workshop environments demands a comprehensive and well-matched toolset. The Draper Expert 81038 bearing insertion and removal kit is designed to handle normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes and shaft seals, making it a versatile solution for a wide range of automotive and workshop bearing tasks. The kit operates through a selection of five fine-thread pulling spindles — in M10, M12, M14, M16 and M18 thread sizes — each fitted with thrust bearing hex-nut ends to deliver smooth, controlled force without damaging the bearing or housing. The 22 adaptor rings span inner and outer diameters from 34mm x 44mm through to 80mm x 90mm, allowing precise size-matching across a broad range of bearing applications.All components are stored and protected in a blow-mould carrying case with display sleeve, keeping the set organised and ready for repeated professional use. The kit is compatible with Draper extraction kits 59123 and 30816, extending the capability of those systems.Draper Expert quality throughout ensures the tools are built to the demands of professional workshop use, delivering consistent, reliable performance across the full range of bearing types covered.
Expert Quality, for the accurate and controlled insertion/removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, shaft seals etc. Comprises 22 adaptor rings and five fine thread puller bars with thrust bearing hex. nut ends. Packed in blow mould carrying case and display sleeve. Content: 2 x Adaptor ring, 34mm x 44mm 1 x Adaptor ring, 36mm x 46mm 1 x Adaptor ring, 38mm x 48mm 1 x Adaptor ring, 40mm x 50mm 1 x Adaptor ring, 42mm x 52mm 1 x Adaptor ring, 44mm x 54mm 1 x Adaptor ring, 46mm x 56mm 1 x Adaptor ring, 48mm x 58mm 1 x Adaptor ring, 50mm x 60mm 1 x Adaptor ring, 52mm x 62mm 1 x Adaptor ring, 54mm x 64mm 1 x Adaptor ring, 56mm x 66mm 1 x Adaptor ring, 58mm x 68mm 1 x Adaptor ring, 60mm x 70mm 1 x Adaptor ring, 62mm x 72mm 1 x Adaptor ring, 64mm x 74mm 1 x Adaptor ring, 66mm x 76mm 1 x Adaptor ring, 68mm x 78mm 1 x Adaptor ring, 70mm x 80mm 1 x Adaptor ring, 72mm x 82mm 1 x Adaptor ring, 75mm x 85mm 1 x Adaptor ring, 80mm x 90mm 1 x M10 pulling spindle 1 x M12 pulling spindle 1 x M14 pulling spindle 1 x M16 pulling spindle 1 x M18 pulling spindle About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
59123 | Draper 59123 Bearing, Seal and Bush Insertion/Extraction Kit (27 Piece) | 1 Unit |
£212.40
£208.24
|
Add |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 00017 | 00790 | 00153 | 00793 | 00794 | 03101 | 02146 | 03774 | 03105 | 03780 | 03781 | 03803 | 03804 | 03810 | 03821 |
| Type | Jack/Press/Lifting | Bar | Kit | Castor | Castor | Key | Clip | Clip | Wheels/Handles | Screw | Washer | Wheels/Handles | Wheels/Handles | Base | Spring |
A. The kit is designed for the accurate and controlled insertion and removal of normal bearings, silent bearings, hydraulic bearings, rubber bearings, bearing bushes, and shaft seals.
A. The kit comprises 22 adaptor rings, ranging in size from 34mm x 44mm up to 80mm x 90mm, covering a broad span of bearing diameters.

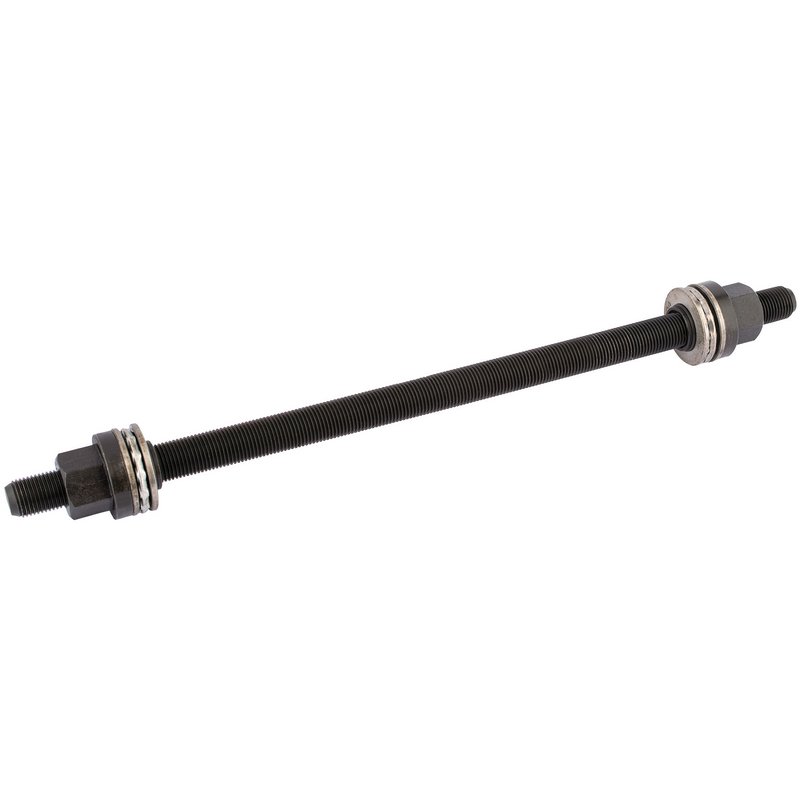

A. Five fine-thread pulling spindles are included: M10, M12, M14, M16 and M18, each with thrust bearing hex-nut ends for smooth, controlled operation.
A. The Draper Expert 81038 is compatible with Draper extraction kits 59123 and 30816.
A. All components are packed in a blow-mould carrying case with a display sleeve, keeping the set organised and protected for professional workshop use.
