Product Number: 09580600
Variations

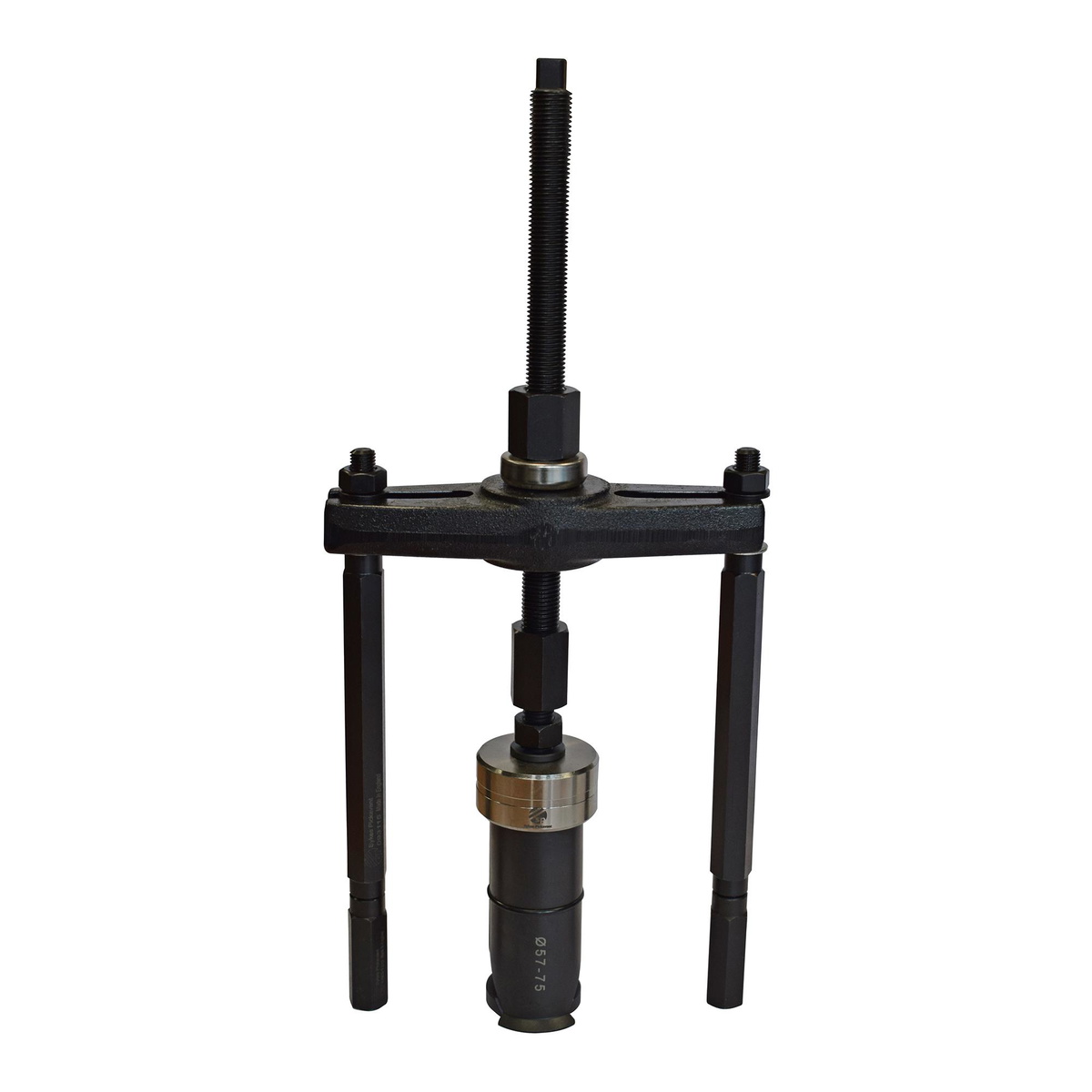

Removing larger bearings from engines, gearboxes and industrial machinery demands a tool that can apply controlled, even force without damaging surrounding components. The Sykes Pickavant 09580600 Bearing Extractor Set provides a safe and simple pulling solution for bearings in the 57–75 mm range, giving workshop professionals the grip and leverage needed to extract stubborn bearings cleanly and without risk to the workpiece.
The set operates via an internal spread mechanism, expanding within the bearing bore to achieve a secure, centred grip before extraction force is applied. The force screw and twin beam assembly work together to transmit load evenly, reducing the risk of bearing damage or component distortion during removal.
The kit spans an internal spread of 57–75 mm and includes the 09582100 bearing extractor, two main rod assemblies (09311500), a 205 mm twin beam (09311200), a force screw (09584300), a thrust nut (09311400), a thrust race (09312100), a 63 mm thread protector (09312000), and an adaptor (09584200). The complete set is supplied in a metal tin. Overall dimensions are 350 x 200 x 75 mm and the set weighs 7.6 kg.
For larger bearings, the 09582200 Bearing Extractor covering the 74–100 mm range is also available. This kit is additionally compatible with slide hammer 08532000 when used with adaptor 09582300.
The Sykes Pickavant 09580600 delivers a safe and simple extraction solution for professional workshop use on engines, gearboxes and industrial machinery.
Additional Information
Bearing Extractor Set 57-75mmIncludes 57-75mm Bearing Extractor (09582100)Option also available is part number 09582200. 74 - 100mm.A safe and simple pulling solution for larger bearings found on engines, gearboxes and industrial machinery.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Product Dimenstions (L x W x H) | 350 x 200 x 75 mm |
|---|---|
| Product Weight | 7.6 Kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
09582100 | Sykes Pickavant 09582100 EXTRACTOR 57-75MM | 1 Unit |
£194.77
£190.95
|
Add |
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 1 to 2 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 09580100 BEARING EXTRACTOR 6-13MM
£150.99
£148.03
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09580200 BEARING EXTRACTOR 13-30MM
£180.74
£177.20
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09800000 MULTIPULL BEARING EXTRACTOR KIT
£200.40
£196.47
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09820000 MULTIPULL BEARING EXTRACTOR KIT
£420.01
£411.77
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 9580300 BEARING EXTRACTOR 30-60MMM
£271.24
£265.92
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09585600 Slide Hammer Bearing Extractor Set 57-75mm
£335.90
£329.31
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 09585700 Slide Hammer Bearing Extractor Set 74-100mm
£366.53
£359.34
2% OFF
Free delivery in UK Mainland
|
Sealey VS703 Bearing Race & Seal Driver Set 10pc Aluminium
£71.70
£70.29
2% OFF
Free delivery in UK Mainland
|
Draper 59123 Bearing, Seal and Bush Insertion/Extraction Kit (27 Piece)
£212.40
£208.24
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 09580100 | 09580200 | 09800000 | 09820000 | 9580300 | 09585600 | 09585700 | VS703 | 59123 | VS7033 | 85656 |
A. It is a bearing extractor set for removing 57–75mm bearings from engines, gearboxes and industrial machinery.
A. It contains the 57–75mm bearing extractor 09582100 as the core pulling element.
A. The correctly sized extractor grips the bearing race securely, allowing controlled removal with a compatible puller or slide hammer.
A. 09582200 covers larger bearings from 74–100mm when that extra range is required.
A. Workshops and maintenance departments that regularly remove medium-size bearings from shafts or housings.
A. It is explicitly described as a 57–75mm bearing extractor set.
A. Proper fit ensures the extractor supports the bearing all round, reducing risk of cracking or misalignment.
A. The extractor can be mounted to puller beams or slide hammers that apply axial force.
A. The kit is about 350 × 200 × 75mm and weighs around 7.6kg.
A. Its diameter range and robust construction fit bearings found in engines, gearboxes and plant machinery."
